Excelチャートの凡例を管理する
Contents
[
Hide
]
凡例オプション
Aspose.Cells for Python via .NETは、Legendオブジェクトを使って、実行時にチャートの凡例を管理することもでき、凡例の移動、更新、フォーマット設定が可能です。
|
|
チャートの凡例の設定
Aspose.Cells for Python via .NETを使えば、チャートの凡例の管理は非常に簡単です。Legendを参照してください。
次のコードスニペットは、凡例の管理方法を示しています。
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| from aspose.cells import Workbook | |
| from aspose.cells.charts import ChartType, LegendPositionType | |
| from aspose.pydrawing import Color | |
| # Instantiating a Workbook object | |
| workbook = Workbook() | |
| # Adding a new worksheet to the Workbook object | |
| sheetIndex = workbook.worksheets.add() | |
| # Obtaining the reference of the newly added worksheet by passing its sheet index | |
| worksheet = workbook.worksheets[sheetIndex] | |
| # Adding sample values to cells | |
| worksheet.cells.get("A1").put_value(50) | |
| worksheet.cells.get("A2").put_value(100) | |
| worksheet.cells.get("A3").put_value(150) | |
| worksheet.cells.get("B1").put_value(60) | |
| worksheet.cells.get("B2").put_value(32) | |
| worksheet.cells.get("B3").put_value(50) | |
| # Adding a chart to the worksheet | |
| chartIndex = worksheet.charts.add(ChartType.COLUMN, 5, 0, 15, 5) | |
| # Accessing the instance of the newly added chart | |
| chart = worksheet.charts[chartIndex] | |
| # Adding SeriesCollection (chart data source) to the chart ranging from "A1" cell to "B3" | |
| chart.n_series.add("A1:B3", True) | |
| # Setting the title of a chart | |
| chart.title.text = "Title" | |
| # Setting the font color of the chart title to blue | |
| chart.title.font.color = Color.blue | |

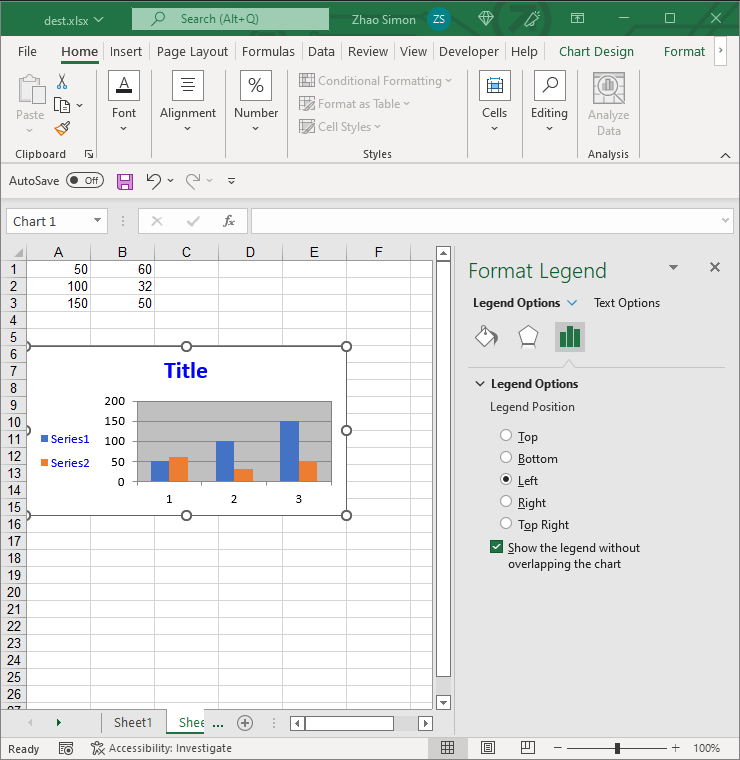

| # Move the legend to left | |
| chart.legend.position = LegendPositionType.LEFT | |
| # Set font color of the legend | |
| chart.legend.font.color = Color.blue | |
| # Save the file | |
| workbook.save("chart_legend.xlsx") |
