Collaborative Excel Editor Guide

Architecture Overview

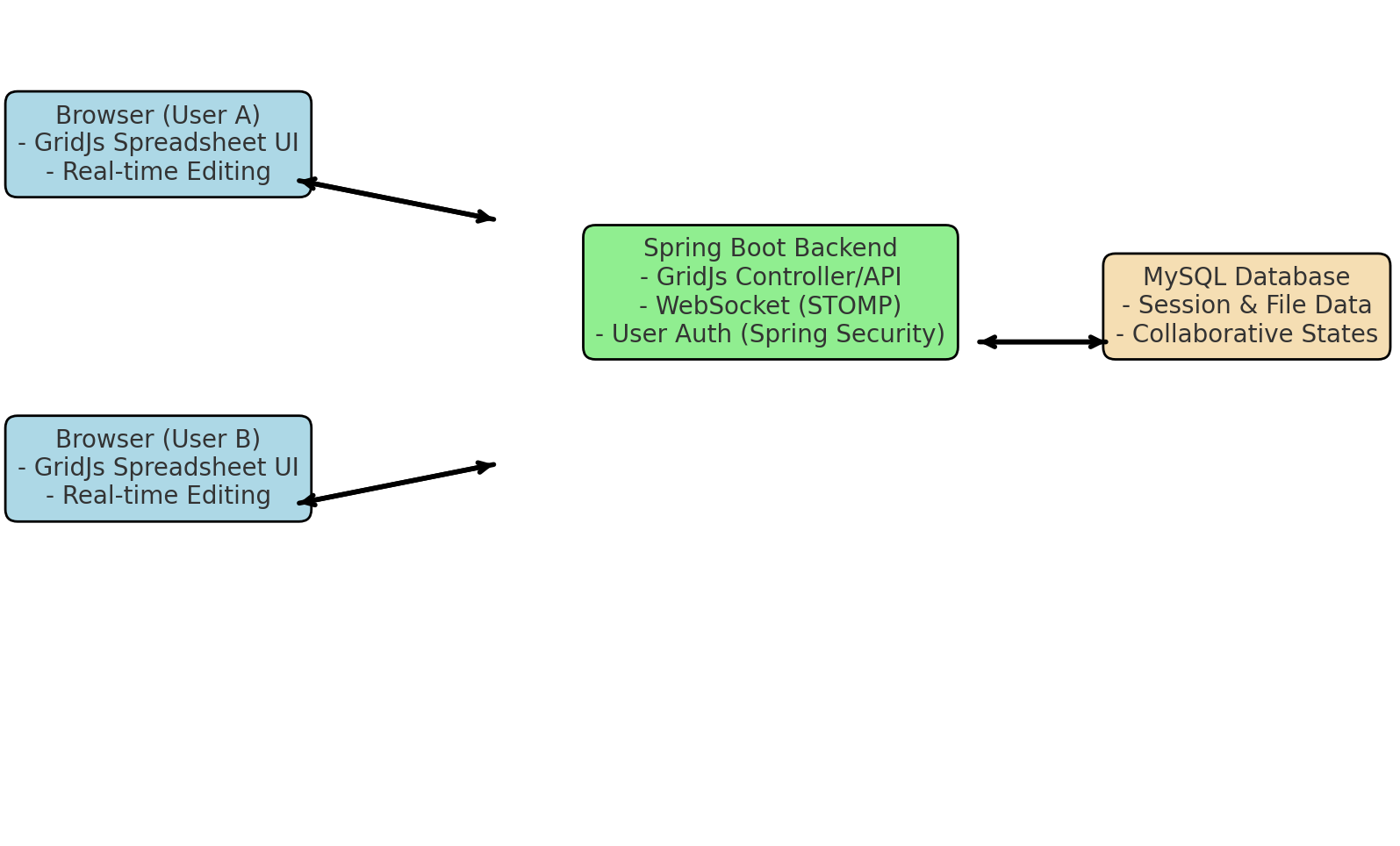

The following diagram shows how GridJs enables collaborative editing with multiple users, a Spring Boot backend, WebSocket communication, and a MySQL database for state management.

GridJs Collaborative Architecture

Prerequisites

Before starting, make sure you have the following installed:

  • Java 8+
  • Maven
  • MySQL (or another supported SQL database)
  • (Optional) Docker if you prefer running in containers
  • A valid Aspose.Cells license (or temporary license)

Step 1: Clone the Demo Project

Clone the official Aspose.Cells GridJs demo repository:

git clone https://github.com/aspose-cells/Aspose.Cells.Grid-for-Java.git
cd Aspose.Cells-for-Java/Examples.GridJs.Collaborative

Step 2: Configure Collaborative Mode

Open the src/main/resources/application.properties file and adjust the settings:

# Directory containing spreadsheet files
testconfig.ListDir=/app/wb

# Directory for storing cache files
testconfig.CachePath=/app/grid_cache

# Aspose.Cells license file
testconfig.AsposeLicensePath=/app/license

# Enable collaborative mode
gridjs.iscollabrative=true

# Database connection (example: MySQL)
spring.datasource.url=jdbc:mysql://localhost:3306/gridjsdemodb?createDatabaseIfNotExist=true&useUnicode=true&serverTimezone=UTC&useSSL=false
spring.datasource.username=root
spring.datasource.password=root
spring.sql.init.platform=mysql

This enables multiple users to edit the same spreadsheet simultaneously.
Changes are stored in the database and synchronized across clients in real time.

Step 3: Run the Application

Run with Maven:

mvn spring-boot:run

Or directly from the main class:

src/main/java/com/aspose/gridjsdemo/usermanagement/UserManagementApplication.java

Step 4: Test Collaborative Editing

Open your browser and navigate to:
👉 http://localhost:8080/gridjsdemo/list

Steps:

  1. A login page appears. Click Create User to register User1 and log in. You will then see the file list.
  2. Open a file from the list. The spreadsheet editor will load.
  3. Copy the same URL into another browser window. It will redirect to the login page. Create User2 and log in.
  4. Both users now see the same spreadsheet.
  5. If User1 edits the spreadsheet, User2 will see the changes in real time.
  6. If User2 edits, User1 will see the changes as well.
  7. Users can also download and save the file.

Step 5: Run in Docker (Optional)

If running in Docker, edit line 10 of docker-compose.yml to map the license file.

For example, if your license file is at C:/license/aspose.lic:

volumes:
  - C:/license/aspose.lic:/app/license  # optional: set Aspose license file

This maps the local file into the container.

Then build and run:

docker-compose up --build

Access the app at:
👉 http://localhost:8080/gridjsdemo/list

Key Configuration Details

1. Enable Collaborative Mode

In /src/main/resources/application.properties:

gridjs.iscollabrative=true

In server-side config /src/main/java/com/aspose/gridjsdemo/filemanagement/FileConfig.java:

@Bean
public GridJsOptions gridJsOptions() {
    //..... other options
    //here we shall set true for collaborative mode
    options.setCollaborative(true);
    return options;
}

Or globally:

Config.setCollaborative(true);

In client-side load options /src/main/resources/templates/file/index.html:

const option = {
    //..... other options
    //here we shall set true for collaborative mode
    isCollaborative: true
    //..... other options
};

2. User System Integration

The demo uses Spring Security for a simple user system.

You must provide a CoWorkUserProvider implementation to connect GridJs with your user system:

In server-side config /src/main/java/com/aspose/gridjsdemo/filemanagement/FileConfig.java:

For example: here we defined MyCustomUser to implement all the interfaces in CoWorkUserProvider.

@Bean
public CoWorkUserProvider currentUserProvider() {
    return new MyCustomUser();
}

In /src/main/java/com/aspose/gridjsdemo/filemanagement/MyCustomUser.java:

public class MyCustomUser implements CoWorkUserProvider {
    //Get the current login user name
    @Override
    public String getCurrentUserName() {
        return getCurrentUser().getUsername();
    }

    //Get the current login user Id
    @Override
    public Long getCurrentUserId() {
        return getCurrentUser().getUserId();
    }

    //Get the current login user permission
    @Override
    public CoWorkUserPermission getPermission() {
        return CoWorkUserPermission.EDITABLE;
    }

    private static CustomUserDetails getCurrentUser() {
        Authentication authentication = SecurityContextHolder.getContext().getAuthentication();
        if (authentication != null && authentication.getPrincipal() instanceof CustomUserDetails) {
            return (CustomUserDetails) authentication.getPrincipal();
        }
        throw new IllegalStateException("User not authenticated");
    }
}

3. WebSocket Configuration

The demo uses Spring WebSocket with STOMP.

Example config:

In /src/main/java/com/aspose/gridjsdemo/messages/WebSocketConfig.java:

public class WebSocketConfig implements WebSocketMessageBrokerConfigurer {
    @Override
    public void configureMessageBroker(MessageBrokerRegistry config) {
        config.enableSimpleBroker("/topic");
        config.setApplicationDestinationPrefixes("/app");
        config.setUserDestinationPrefix("/user");
    }

    @Override
    public void registerStompEndpoints(StompEndpointRegistry registry) {
        registry.addEndpoint("/ws")
                .setAllowedOrigins("http://localhost:8080")
                .withSockJS();
    }
}

GridJs expects messageTopic to match “/topic/opr” which is the default:

com.aspose.gridjs.Config.setMessageTopic("/topic/opr");

Or:

@Bean
    public GridJsOptions gridJsOptions() {
	//.... other options
    	options.setMessageTopic("/topic/opr");
    	//.... other options
        return options;
    }

On the client side:

xs.setCollaborativeSetting('/GridJs2/msg','/ws','/app/opr','/user/queue','/topic/opr');

Here, /GridJs2/msg corresponds to the route path defined in
src/main/java/com/aspose/gridjsdemo/filemanagement/controller/GridJsOprController.java:

@RequestMapping("/GridJs2/msg")

Example with custom WebSocket paths

If your server uses a different configuration:

public class WebSocketConfig implements WebSocketMessageBrokerConfigurer {
    @Override
    public void configureMessageBroker(MessageBrokerRegistry config) {
        config.enableSimpleBroker("/topic_gridjs");
        config.setApplicationDestinationPrefixes("/app_gridjs");
        config.setUserDestinationPrefix("/user_gridjs");
    }

    @Override
    public void registerStompEndpoints(StompEndpointRegistry registry) {
        registry.addEndpoint("/ws_gridjs")
                .setAllowedOrigins("http://localhost:8080")
                .withSockJS();
    }
}

Then you must set:

Server side:

com.aspose.gridjs.Config.setMessageTopic("/topic_gridjs/opr");

or

    @Bean
    public GridJsOptions gridJsOptions() {
	//.... other option
    	options.setMessageTopic("/topic_gridjs/opr");
    	//.... other option
        return options;
    }

Client side:

xs.setCollaborativeSetting('/GridJs2/msg','/ws_gridjs','/app_gridjs/opr','/user_gridjs/queue','/topic_gridjs/opr');

the detail doc for setCollaborativeSetting can be find here

⚠️ Note: By default, the demo configuration works out-of-the-box.
Extra configuration is only required if your app customizes WebSocket endpoints.

Also remember: collaborative mode does not support lazy loading.
Do not enable Config.setLazyLoading(true).

Additional Notes

  • We can add file uploads to load and edit spreadsheet file from upload directory.
  • Integrate with cloud storage like AWS S3 or Azure Blob.

Conclusion

With Aspose.Cells.GridJs, you can quickly build a powerful collaborative Excel editor.
The combination of Java backend, GridJs frontend, SQL storage, and WebSocket messaging ensures reliable real-time spreadsheet editing.

Resources

Working with GridJs storage
