How to batch insert Rows and Columns

Introduction

GridJs supports two batch insertion paths. The first path is context-menu batch input for rows/columns (Insert rows above/below, Insert columns left/right). The second path is the bottom Row Appender toolbar for batch appending rows. Both paths use the same row insertion pipeline (sheet.insertRows(...)) and update sheet layout/rendering.

How to use

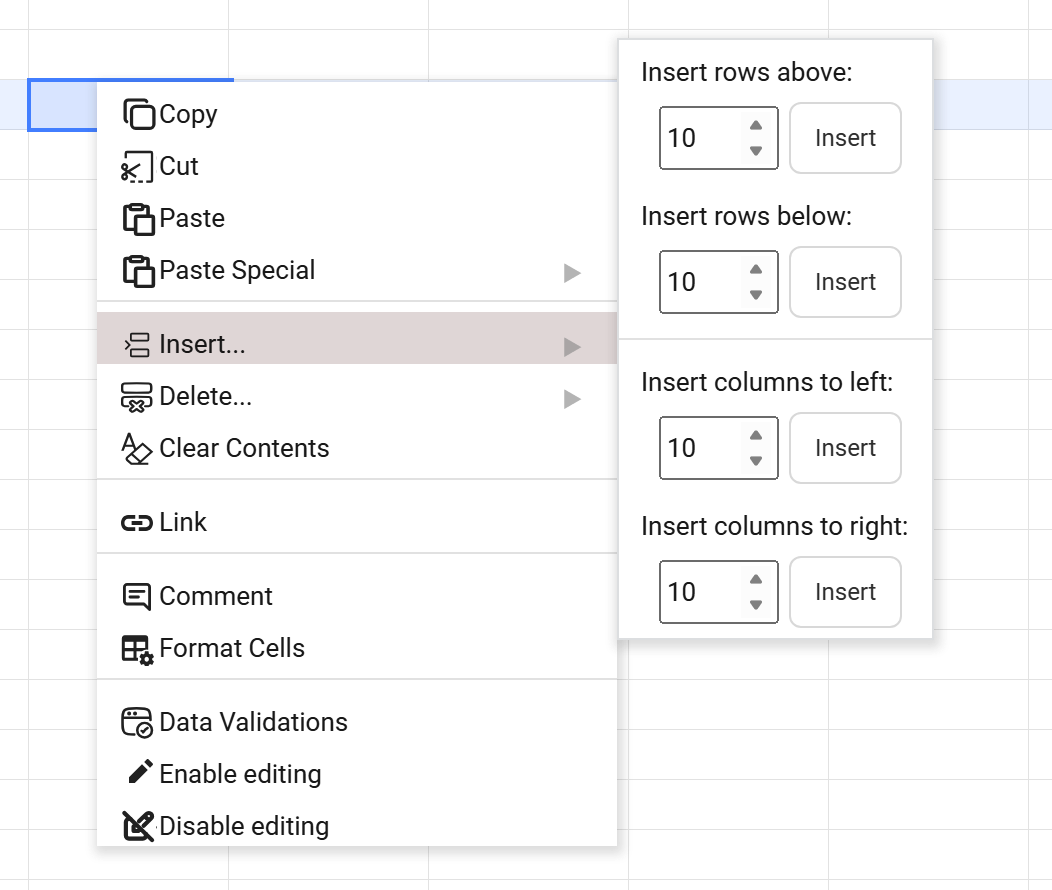

Method 1: Context menu batch insert (rows and columns).

1. Select a range, a row header, or a column header.
2. Right-click and open Insert… in the context menu.
3. Choose one action:
   • Insert rows above
   • Insert rows below
   • Insert columns to left
   • Insert columns to right
4. Enter the count in the number box and click Insert.
   • The input is configured with min=1 and max=300.
   • The insert submenu pre-fills the number input with 10 when opened.

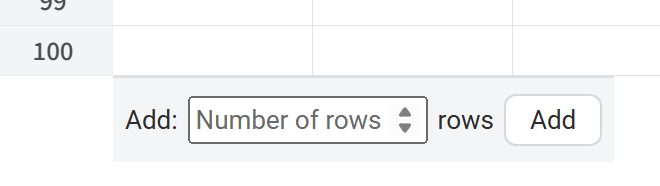

Method 2: Row Appender batch insert (rows only). In edit mode, scroll near the bottom until the Row Appender appears, enter row count, then click Add.

JavaScript API

xs = x_spreadsheet('#gridjs-demo-uid', option);

// Insert 5 rows starting at row index 3.
xs.sheet.insertRows(3, 5);

// Insert 4 columns starting at column index 2.
xs.sheet.insertColumns(2, 4);

// Row Appender equivalent: append rows to the end.
const n = 20;
xs.sheet.insertRows(xs.sheet.data.rows.len, n);

// Optional: listen to insert events.
xs.on('rows-inserted', (start, count) => {
  console.log('rows inserted:', start, count);
});

xs.on('columns-inserted', (start, count) => {
  console.log('columns inserted:', start, count);
});

// Optional: enable/disable bottom Row Appender toolbar.
const xsWithAppender = x_spreadsheet('#gridjs-demo-uid-2', {
  showRowAppenderToolbar: true,
});

Relevant functions

Function	Description	Parameters	Returns
sheet.insertRows(start, n, raiseServerOpr = true)	Batch inserts rows at the given start row index.	start (row index), n (count), raiseServerOpr (optional boolean)	void
sheet.insertColumns(start, n, raiseServerOpr = true)	Batch inserts columns at the given start column index.	start (column index), n (count), raiseServerOpr (optional boolean)	void
data.insert('row' | 'column', n, raiseServerOpr)	Internal insert operation used by sheet insert flow; updates data structures and triggers insert events.	type, n, raiseServerOpr	void
showRowAppenderToolbar (option)	Controls whether the bottom Row Appender toolbar is created (default enabled).	true / false	N/A
xs.on(eventName, handler)	Binds event handler; insert flow triggers rows-inserted and columns-inserted.	eventName, handler	xs

Context menu mapping for batch insert:

• insert-rows-above -> sheet.insertRows(sri, n)
• insert-rows-below -> sheet.insertRows(eri + 1, n)
• insert-columns-left -> sheet.insertColumns(sci, n)
• insert-columns-right -> sheet.insertColumns(eci + 1, n)

Common Questions

Q: Why do I only see row-related or column-related insert options in some cases? A: Context menu mode switches by selection type. In row/column header mode, submenu items are filtered to matching row or column operations.

Q: Why does batch insert do nothing on a protected sheet? A: Insert is blocked when the sheet is locked.

Q: Why is Row Appender not visible? A: It is hidden in read mode, when showRowAppenderToolbar is false, or for chart-type sheets.

Q: Can I use batch insert in read mode? A: No. In read mode, the context menu is reduced to copy-only behavior.

Q: Where is the insertion anchor for above/below/left/right? A: It uses the current selected range: sri/eri for rows and sci/eci for columns, with below/right using +1 as insertion start.
