How to input Formula
Introduction
GridJs supports formula input in both the cell editor and the formula bar. When input starts with =, formula suggestion and formula tip UI are used during editing. You can also insert a function template from the Functions toolbar dropdown, which writes a formula skeleton into the selected cell.
How to use
- Select a target cell.
- Type a formula that starts with
=in the cell editor or in the formula bar (for example,=SUM(A1:A3)).

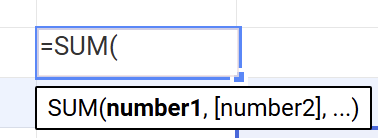

- While typing after
=, formula suggestions are shown; choose a function to insert it quickly.
- To insert a function template directly, click Functions on the toolbar and pick a function. The selected cell receives
=FUNCTION().
- Press Enter in the formula bar to commit and move selection down. Use Shift+Enter to move up, Tab to move right, and Shift+Tab to move left.
JavaScript API
xs = x_spreadsheet('#gridjs-demo-uid', option);
// Set a formula text directly (ri/ci are zero-based indexes).
xs.cellText(0, 0, '=SUM(A1:A3)');
xs.reRender();
// Insert a formula template into the current selected cell.
xs.sheet.data.setSelectedCellAttr('formula', 'SUM');
xs.reRender();
Relevant functions
| Function | Description | Parameters | Returns |
|---|---|---|---|
xs.cellText(ri, ci, text, sheetIndex) |
Sets cell text on a sheet. A formula can be passed as text beginning with =. |
ri (number), ci (number), text (string), sheetIndex (number, optional) |
xs |
xs.reRender() |
Re-renders the sheet after data changes so formula input results are visible. | None | xs |
xs.sheet.data.setSelectedCellAttr('formula', value) |
Writes a formula template to the current selection. For a single cell it becomes =value(). |
value (function key, such as SUM) |
void |
xs.cellText(...) writes formula text through the same cell-text pipeline used by editing.
setSelectedCellAttr('formula', ...) is the function-template path used by the toolbar Functions dropdown.
Common Questions
Q: Why can I not input formulas in some sheets? A: Input is blocked in read mode and also blocked when the sheet is locked.
Q: When does formula suggestion appear?
A: Suggestion appears when input starts with = and formula text is being edited.
Q: What happens when I pick a function from the Functions dropdown?
A: For a single selected cell, GridJs inserts a formula skeleton like =SUM() and places the editor cursor inside ().
Q: Why does the formula bar show formula text instead of displayed value?
A: If the selected cell has a formula field (f), the formula bar shows f first.
