How to use Insert Controls

Introduction

Insert Controls provides a toolbar dropdown for adding form-like controls to the grid. The available options are Text Box, Combo Box, Check Box, Spin Button, and Option Button. Each option opens a dialog with the required fields for that control, and the control is inserted at the current selection after you confirm.

How to use

  1. Select a target cell, then click Insert Controls on the toolbar.

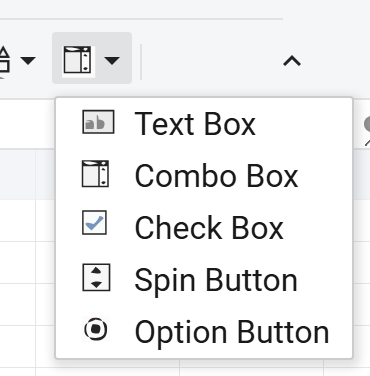

  2. Choose a control type from the dropdown.

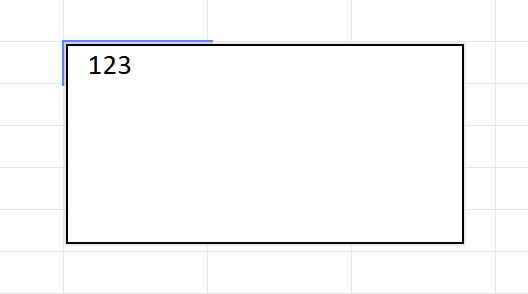

  3. Text Box: adds a Text Box control at the selected cell.

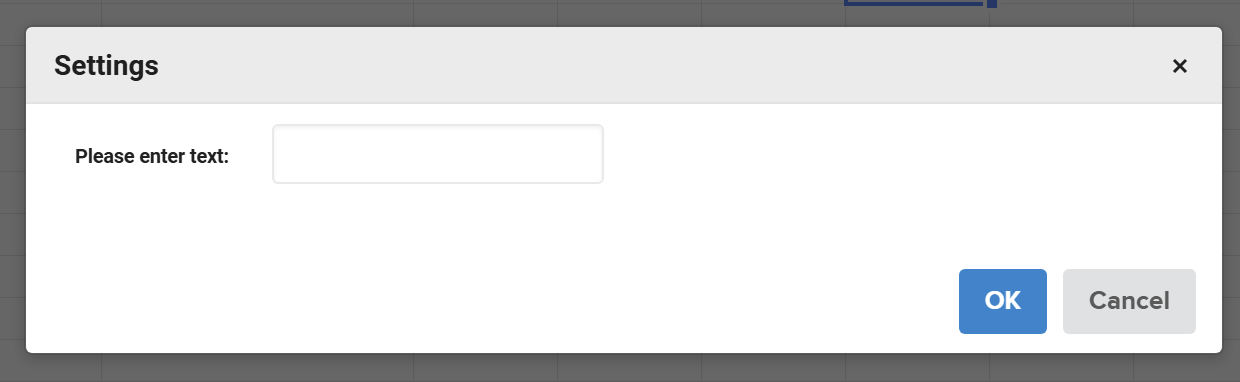

    Label text: required input for creating the control (placeholder: “Please enter text”).

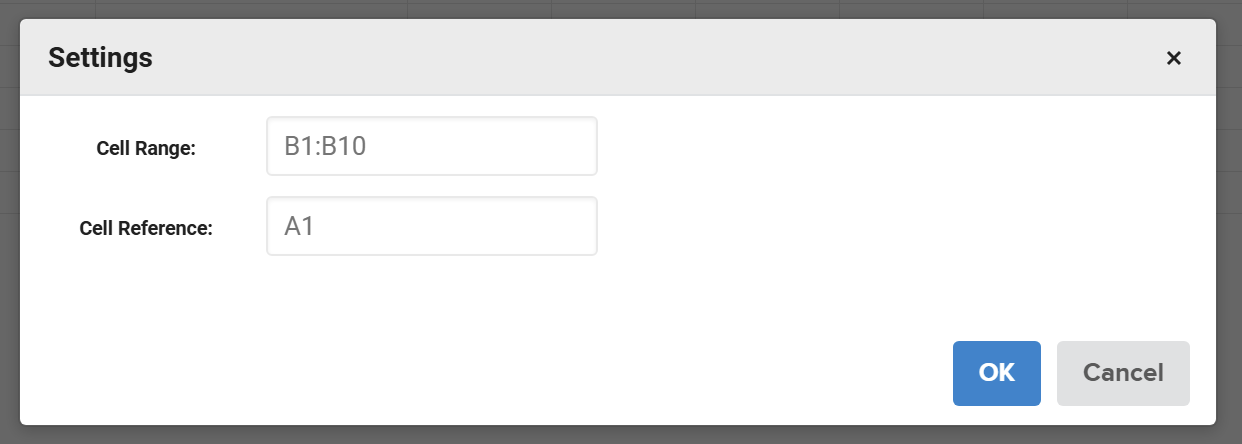

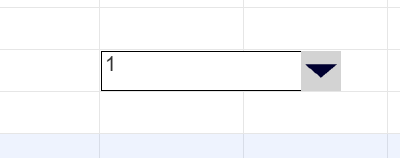

  4. Combo Box: adds a Combo Box control at the selected cell with values from a range.
    Cell Reference: linked cell updated when the selection changes.
    Cell Range: source range for dropdown options (for example, B1:B10).
  5. Check Box: adds a Check Box control at the selected cell.
    Cell Reference: linked cell updated with TRUE or FALSE when toggled.
    Label text: shown next to the checkbox.
  6. Option Button: adds an Option Button (Radio Button) control at the selected cell.
    Cell Reference: linked cell updated when the option is selected.
    Label text: shown next to the option button.

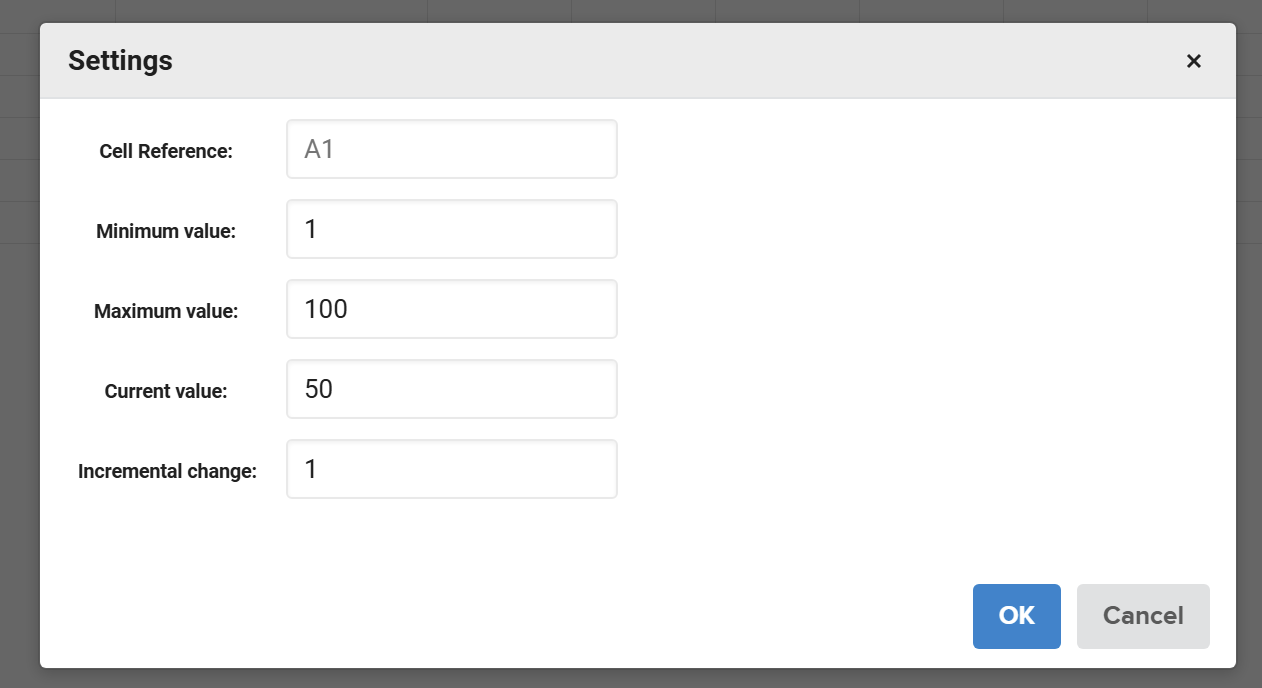

  7. Spin Button: adds a Spin Button control at the selected cell.
    Cell Reference: linked cell updated with the current value.
    Minimum value: lower bound for the value.
    Maximum value: upper bound for the value.
    Current value: initial value.
    Incremental change: step size for each click.

JavaScript API

xs = x_spreadsheet('#gridjs-demo-uid', option);

// Open the Insert Controls dialog for a specific type.
xs.sheet.modelControl.show('TextBox');
xs.sheet.modelControl.show('ComboBox');
xs.sheet.modelControl.show('CheckBox');
xs.sheet.modelControl.show('SpinButton');
xs.sheet.modelControl.show('RadioButton');

Relevant functions

Function Description Parameters Returns
sheet.modelControl.show(type) Show the Insert Controls dialog for the given control type. type (‘TextBox’, ‘ComboBox’, ‘CheckBox’, ‘SpinButton’, ‘RadioButton’) void
sheet.modelControl.hide() Close the Insert Controls dialog. None void

sheet.modelControl.show(type) displays the control dialog configured for the requested type. sheet.modelControl.hide() closes the dialog without inserting a control.

Common Questions

Q: What control types are available in Insert Controls? A: Text Box, Combo Box, Check Box, Spin Button, and Option Button.

Q: What inputs are required for Combo Box? A: Cell Reference and Cell Range. The range uses a spreadsheet reference like B1:B10.

Q: Why does the dialog reject my values for Spin Button? A: The dialog validates Minimum value, Maximum value, Current value, and Incremental change. If the values are out of range (for example, Current value outside min/max), the dialog blocks submission.
