How to set Data Validations settings in GridJS

Introduction

GridJS provides Data Validation entry points from both the top menu and the context menu, labeled Data Validation and Data Validations. The Data Validation dialog contains three tabs: Setting, Input Message, and Error Alert. In the Setting tab, you can configure AnyValue / WholeNumber / Decimal / List / Date / Time / TextLength / Custom, and the Value1/Value2 (or Source) inputs are shown dynamically based on the selected Allow and Data options. When Allow is set to Date or Time, the selected cells are also formatted as date/time after submission.

How to use

Select the target cell or range where you want to apply validation.

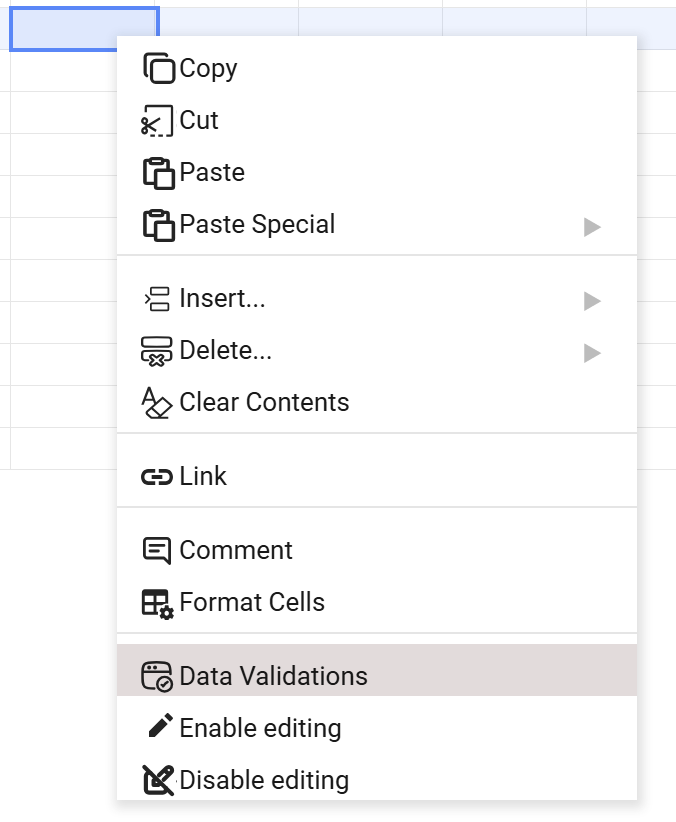

Open the Data Validation dialog. Use either the context menu item Data Validations or the toolbar item Data Validation.

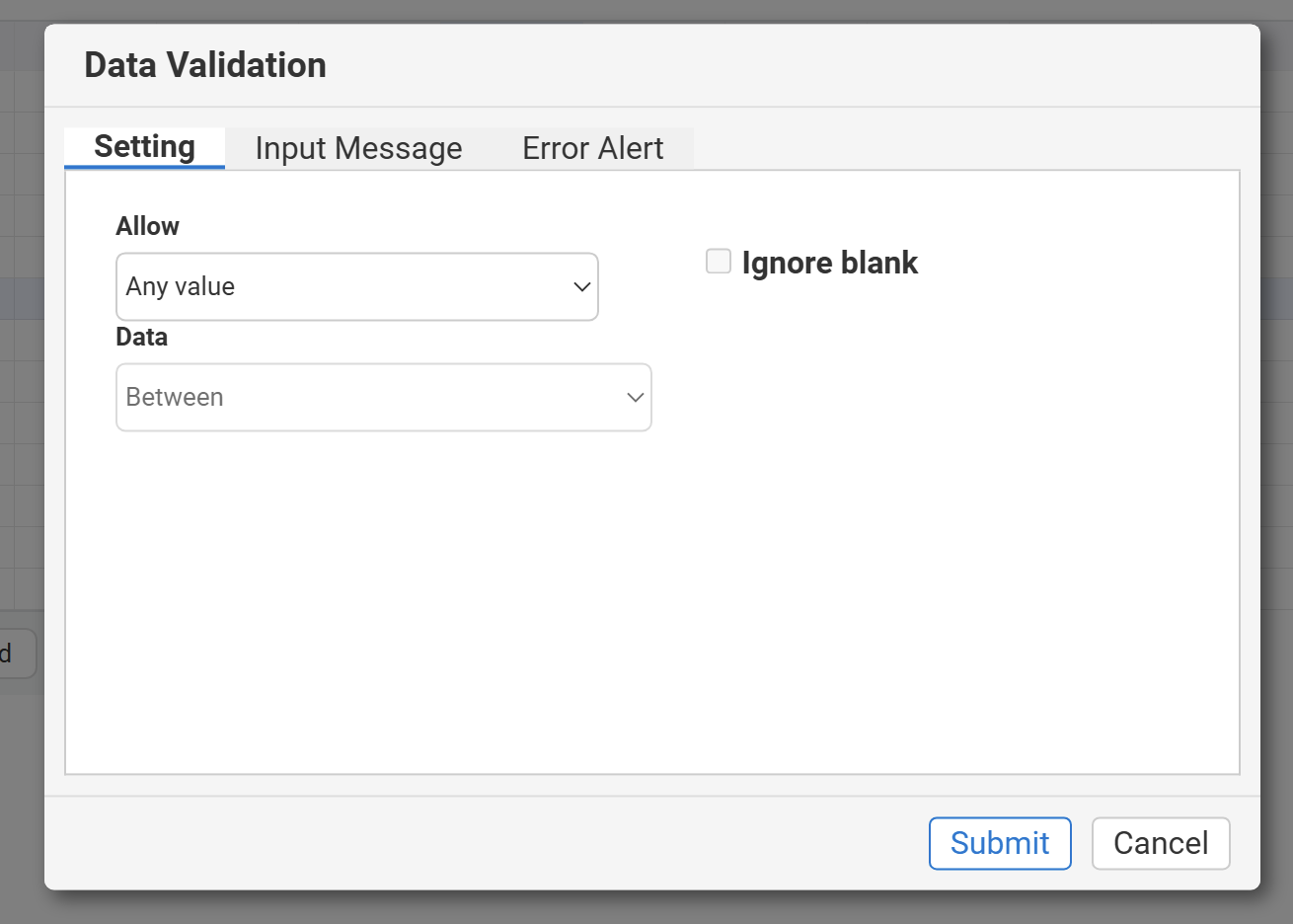

Configure rules in the Setting tab. Set Allow, Data, and Value1/Value2; if Allow = List, enter the source in Source, and optionally enable Allow multiple selection.

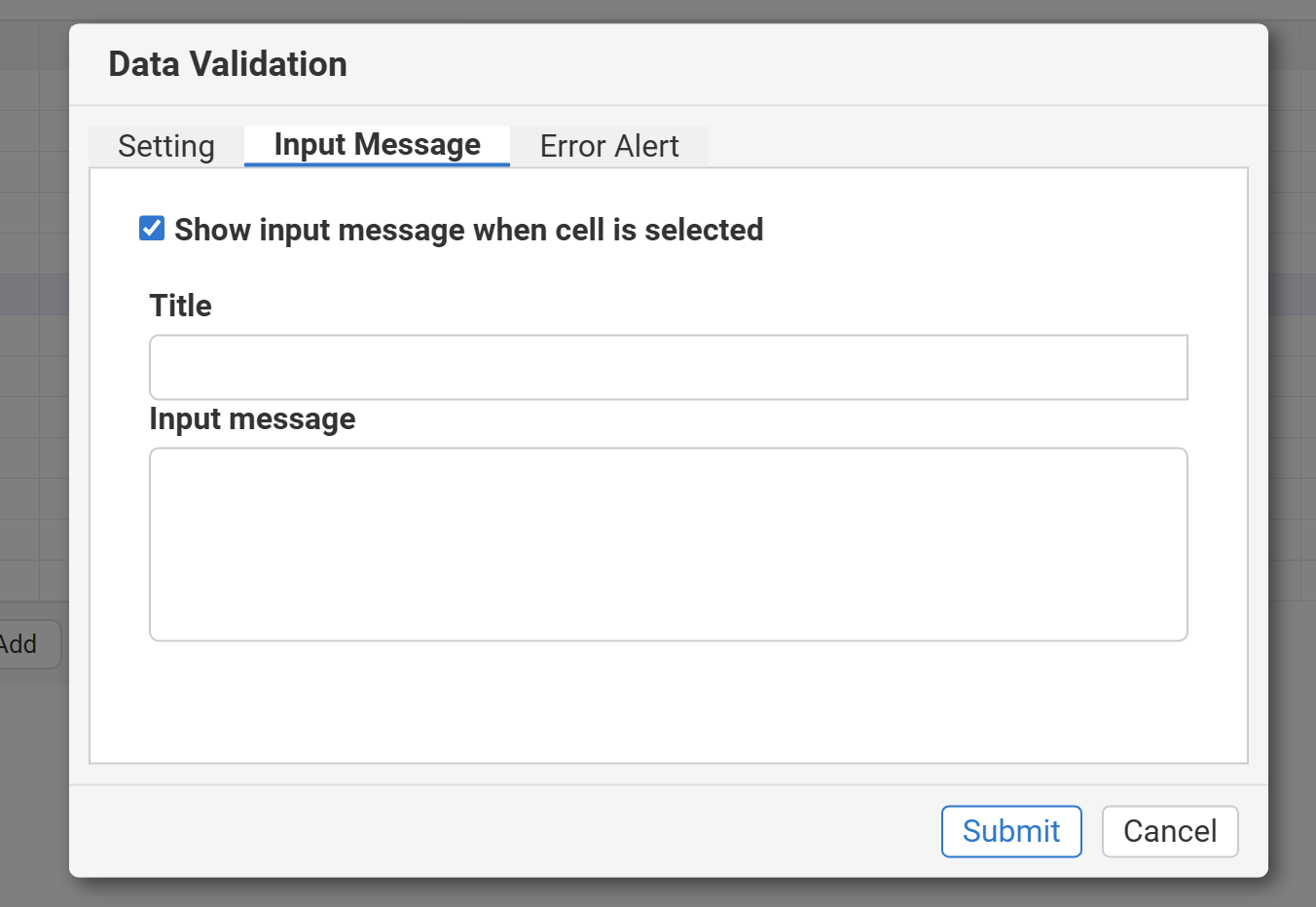

Configure the Input Message tab. Enable Show input message when cell is selected, then set the title and message.

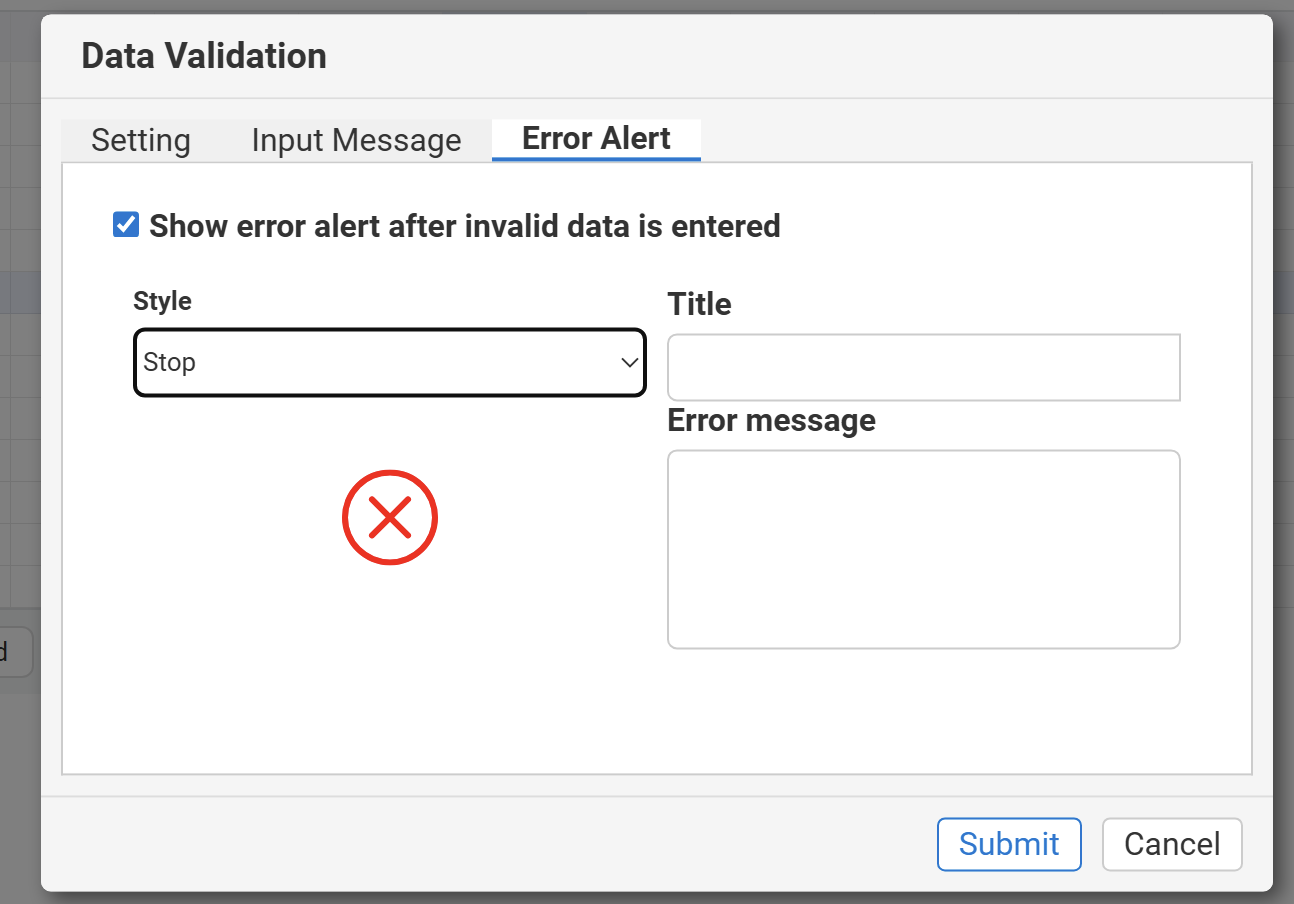

Configure the Error Alert tab. Enable Show error alert after invalid data is entered, then set Style (Stop/Warning/Information), title, and message.
Click Submit to save, then test input values in the target range.

JavaScript API

Based on the current source code, you can apply validation rules programmatically through xs.sheet.modalDataValidation.change(index, validation).

xs = x_spreadsheet('#gridjs-demo-uid', option);

(async () => {
  // Select B2:B10 (0-based indexes)
  xs.sheet.selector.set(1, 1);
  xs.sheet.selector.setEnd(9, 1);

  await xs.sheet.modalDataValidation.change(-1, {
    allowtype: 'List',
    operatorfull: 'Between',
    ignoreblank: true,
    value1: '=D2:D6',
    value2: '',
    f1: '=D2:D6',
    f2: '',
    showinput: true,
    inputtitle: 'Allowed values',
    inputmessage: 'Please pick from the list, comma-separated for multiple values',
    showerror: true,
    alertstyle: 'warning',
    errortitle: 'Invalid input',
    errormessage: 'The value is not in the allowed list',
    ismultiple: true,
  });

  xs.sheet.table.render();
})();

Relevant functions

Function	Description	Parameters	Returns
`xs.sheet.selector.set(ri, ci, indexesUpdated)`	Sets the selection start cell.	`ri:number`, `ci:number`, `indexesUpdated?:boolean`	`void`
`xs.sheet.selector.setEnd(ri, ci, moving)`	Sets the selection end cell to form the target range.	`ri:number`, `ci:number`, `moving?:boolean`	`void`
`xs.sheet.modalDataValidation.change(index, validation)`	Applies or updates Data Validation settings for the current selection.	`index:number` (use `-1` for new settings), `validation:object`	`Promise<void>`
`xs.sheet.data.checkValidation(ri, ci)`	Triggers server-side validation (used when formulas/custom conditions are involved).	`ri:number`, `ci:number`	`Promise<boolean>`
`xs.sheet.table.render()`	Re-renders the sheet view.	none	`void`

Common Questions

Q: Why is no input message shown when I select a validated cell? A: showinput must be enabled, and both inputtitle and inputmessage must be non-empty.

Q: How does multiple selection work for List validation? A: Enable Allow multiple selection; values are comma-separated and each item is validated against the list.

Q: What is the behavior difference among error alert styles? A: stop shows Retry; warning shows Yes/No; information shows OK.

Q: Why does the cell display format change after choosing Date or Time? A: Current implementation sets selected cell format to date or time when the validation is submitted.
