How to Send By Email

Introduction

GridJs adds Send By Email to the File menu through the Email menu item. Selecting this item opens an email modal with a Receiver input and a File Type selector. The modal passes the receiver value and selected file type to setEmailSendCallFunction when the user clicks OK and a callback has been configured.

How to use

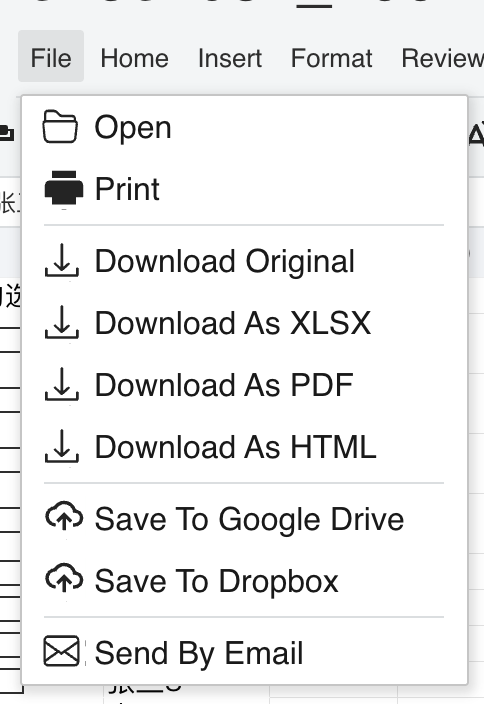

Open GridJs and use the File menu.
Select Send By Email. GridJs routes the menu item tag email through the menu change handler and opens the email modal.

Enter a receiver address in the Receiver field. The field placeholder is example@mail.com.
Choose one file type from the File Type selector. The code defines three values: xlsx, pdf, and html.
Click OK. If the receiver input has been marked with a red border by the input handler, the modal shakes the receiver field and does not call the send callback.
When the receiver input is not marked red and emailSendCallFunc has been configured, GridJs calls the send callback with an object containing receiver and type, shows a Sending Email mask, and then shows a success toast with the returned message. If the callback throws, GridJs shows an error toast and closes the mask.
Click Cancel to close the modal without calling the send callback.

JavaScript API

Use setEmailSendCallFunction(emailSendCallFunc) on the top-level spreadsheet instance to provide the email send callback.

const xs = x_spreadsheet('#gridjs-demo-uid', options);

xs.setEmailSendCallFunction(async (mailObj) => {
  // mailObj.receiver comes from the Receiver input.
  // mailObj.type is one of: 'xlsx', 'pdf', or 'html'.
  return 'Email sent';
});

Relevant functions

Function / Location	Description	Parameters	Returns
`new Email()` (`component/toolbar/email.js`)	Creates an icon menu item with the tag `email`.	None	`Email` instance
`Menubar(data, widthFn, isHide, showPartToolbar, local)` (`component/menubar.js`)	Adds `new Email()` to the File menu after the download entries.	`data`, `widthFn`, `isHide`, `showPartToolbar`, `local`	`Menubar` instance
`toolbarChange(type, value)` (`component/sheet.js`)	Opens `modalEmail` when `type === 'email'`.	`type`: menu or toolbar tag; `value`: optional item value	`void`
`ModalEmail` (`component/modal_email.js`)	Builds the Receiver input, File Type selector, OK button, and Cancel button.	None	`ModalEmail` instance
`setEmailSendCallFunction(emailSendCallFunc)` (`index.js`)	Stores the callback on `this.sheet.emailSendCallFunc`.	`emailSendCallFunc`: function called with `{ receiver, type }`	`void`
`modalEmail.change(action, mailObj)` (`component/sheet.js`)	Calls `emailSendCallFunc(mailObj)` when `action === 'ok'`, shows a sending mask, and reports success or error with a toast.	`action`: modal action; `mailObj`: `{ receiver, type }`	`Promise<void>`

The inspected index.d.ts file does not declare setEmailSendCallFunction, but the index.js implementation exposes the method directly.

Common Questions

Q: Where does the Send By Email command appear? A: It is added to the File menu after the download-related menu entries.

Q: Which file types are available in the email modal? A: The modal defines xlsx, pdf, and html as selectable file type values.

Q: What object is passed to the send callback? A: GridJs passes an object with receiver from the Receiver input and type from the File Type selector.

Q: Is Send By Email blocked when the sheet is protected? A: No. The email operation is included in protectSheetAllowOperations.
