Text Alignment

Overview

Changing text alignment decides where the content sits inside a cell – left, center, right for horizontal positioning, and top, middle, bottom for vertical positioning. This helps make reports easier to read and gives a professional look.
For example, you can align column headings to the center while keeping data rows left‑aligned.

How to use

Method A: Toolbar buttons (quickest way)

Step-by-Step Instructions

Step 1: Select the cells

Action: Click and drag the mouse over the cells you want to align.

You’ll see: The selected range is highlighted with a blue border.

Step 2: Open the horizontal alignment menu

Action: Click the Horizontal Align button in the toolbar (icon shows three horizontal lines).

You’ll see: A small dropdown appears with options Left, Center, Right.

Step 3: Choose a horizontal option

Action: Click Center (or Left / Right as needed).

You’ll see: The text inside the selected cells moves to the chosen horizontal position.

Step 4: Open the vertical alignment menu

Action: Click the Vertical Align button in the toolbar (icon shows three vertical bars).

You’ll see: A dropdown with options Top, Middle, Bottom.

Step 5: Choose a vertical option

Action: Click Middle (or Top / Bottom as needed).

You’ll see: The text shifts vertically inside each cell to the selected position.

Method B: Format Cells dialog (full control)

Step-by-Step Instructions

Step 1: Select the cells

Action: Click and drag to highlight the range you want to format.

You’ll see: The cells are surrounded by a blue outline.

Step 2: Open the Format Cells dialog

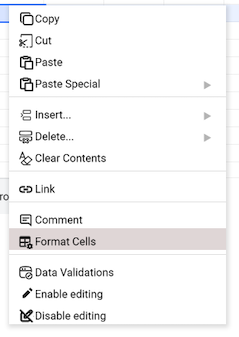

Action: Right‑click the selection and choose Format Cells… from the context menu, or press Ctrl + 1.

You’ll see: A modal window titled Format Cells with several tabs.

Step 3: Switch to the Alignment tab

Action: Click the Alignment tab at the top of the dialog.

You’ll see: Sections for Horizontal, Vertical, and additional text‑control options.

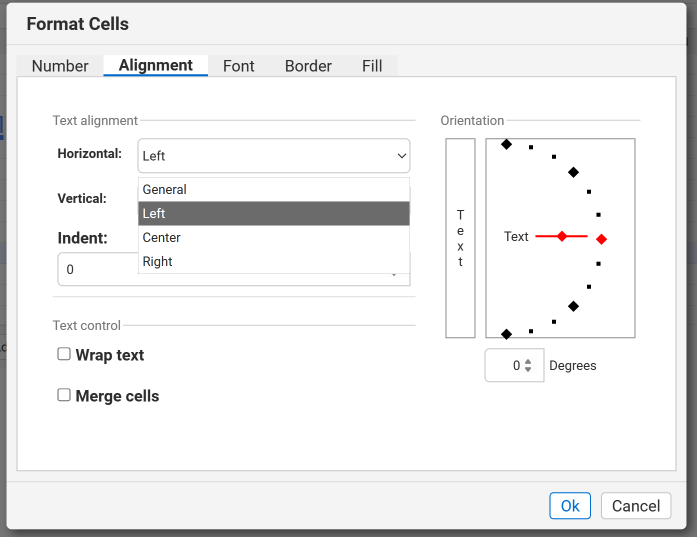

Step 4: Set horizontal alignment

Action: In the Horizontal: dropdown, pick Center (or Left / Right / General).

You’ll see: The dropdown shows the chosen value.

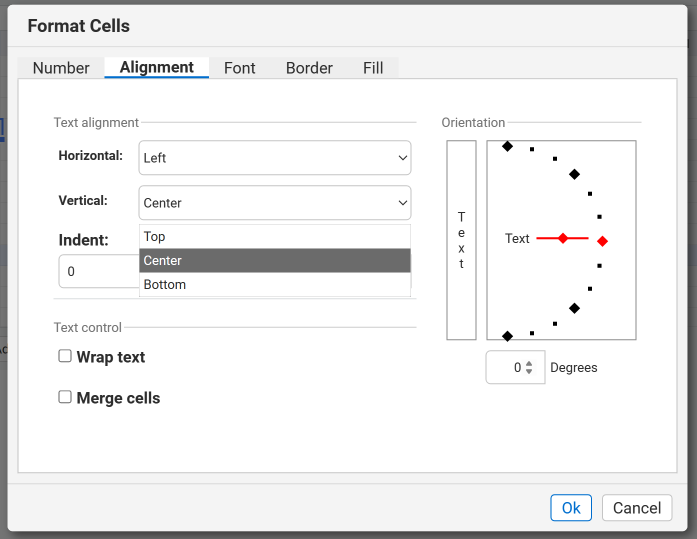

Step 5: Set vertical alignment

Action: In the Vertical: dropdown, pick Middle (or Top / Bottom).

You’ll see: The dropdown updates to the selected vertical option.

Step 6: Apply the changes

Action: Click the OK button at the bottom of the dialog.

You’ll see: The selected cells instantly reflect the new alignment settings.

💡 Tips & Shortcuts

  • Quick tip: Press Alt + H then A to jump straight to the Horizontal Align toolbar dropdown.
  • Quick tip: Press Alt + H then V for the Vertical Align toolbar dropdown.
  • Watch out: Alignment changes only affect the view; they do not alter the underlying data.
  • Pro move: Use the Format Cells dialog if you also need to adjust text rotation or wrap settings at the same time.

For Developers: JavaScript API

You can change alignment programmatically with GridJs’s public API.

Quick Example

// xs is the GridJs instance already attached to the sheet
// Align the currently selected range to center horizontally and middle vertically

// Horizontal alignment
xs.sheet.data.setRangeAttr(
  xs.sheet.data.selector.range,   // the range that is currently selected
  'align',                        // property name for horizontal alignment
  'center'                        // possible values: 'left', 'center', 'right'
);

// Vertical alignment
xs.sheet.data.setRangeAttr(
  xs.sheet.data.selector.range,
  'valign',                       // property name for vertical alignment
  'middle'                        // possible values: 'top', 'middle', 'bottom'
);

API Reference

Method Parameters Description
setRangeAttr(range, property, value) range: object – the cell range (e.g., xs.sheet.data.selector.range)
property: string – 'align' or 'valign'
value: string – alignment value ('left', 'center', 'right', 'top', 'middle', 'bottom')		 Sets the specified alignment attribute for the given cell range.
xs.sheet.data.selector.range none Returns the currently selected cell range object used in setRangeAttr.

Note: The API works on any selected range, not just a single cell.

Common Questions

Q: My text isn’t aligning the way I selected. Why?
A: Make sure the cells are still selected when you click the alignment button or OK in the dialog. Changing the selection clears the pending alignment command.

Q: Can I align text diagonally or at a custom angle?
A: The built‑in alignment options cover only horizontal (left/center/right) and vertical (top/middle/bottom). Diagonal or custom angles are not supported in this version.

Q: Will alignment affect printing?
A: Yes. Alignment settings are preserved in the printed output, just like they appear on the screen.

Q: I want to align a whole column quickly. Is there a shortcut?
A: Click the column header to select the entire column, then use the toolbar alignment buttons or the Format Cells dialog as described above.

Q: How do I reset a cell to the default alignment?
A: Open the Format Cells dialog → Alignment tab → set Horizontal to General and Vertical to Bottom, then click OK. Or programmatically set 'align' to 'general' and 'valign' to 'bottom'.
