Text Rotate Setting

Overview

Aspose.Cells GridJs provides a Text Rotate button on the toolbar. Through its dropdown you can choose common rotation styles or specify a custom angle. The chosen rotation is applied immediately to the currently selected cell or range.

UI Operations

  1. Open the rotation menu
    Click the Text Rotate button on the toolbar. The dropdown opens, showing a list of rotation options.

  2. Select a predefined rotation
    Choose one of the following options:

    • Vertical Text
    • Angle‑Clockwise
    • Angle‑Counter‑Clockwise
    • Rotate Text Up
    • Rotate Text Down
      The dropdown title updates to reflect the selection and then closes. The rotation is applied to the selected cells.

  3. Apply a custom angle

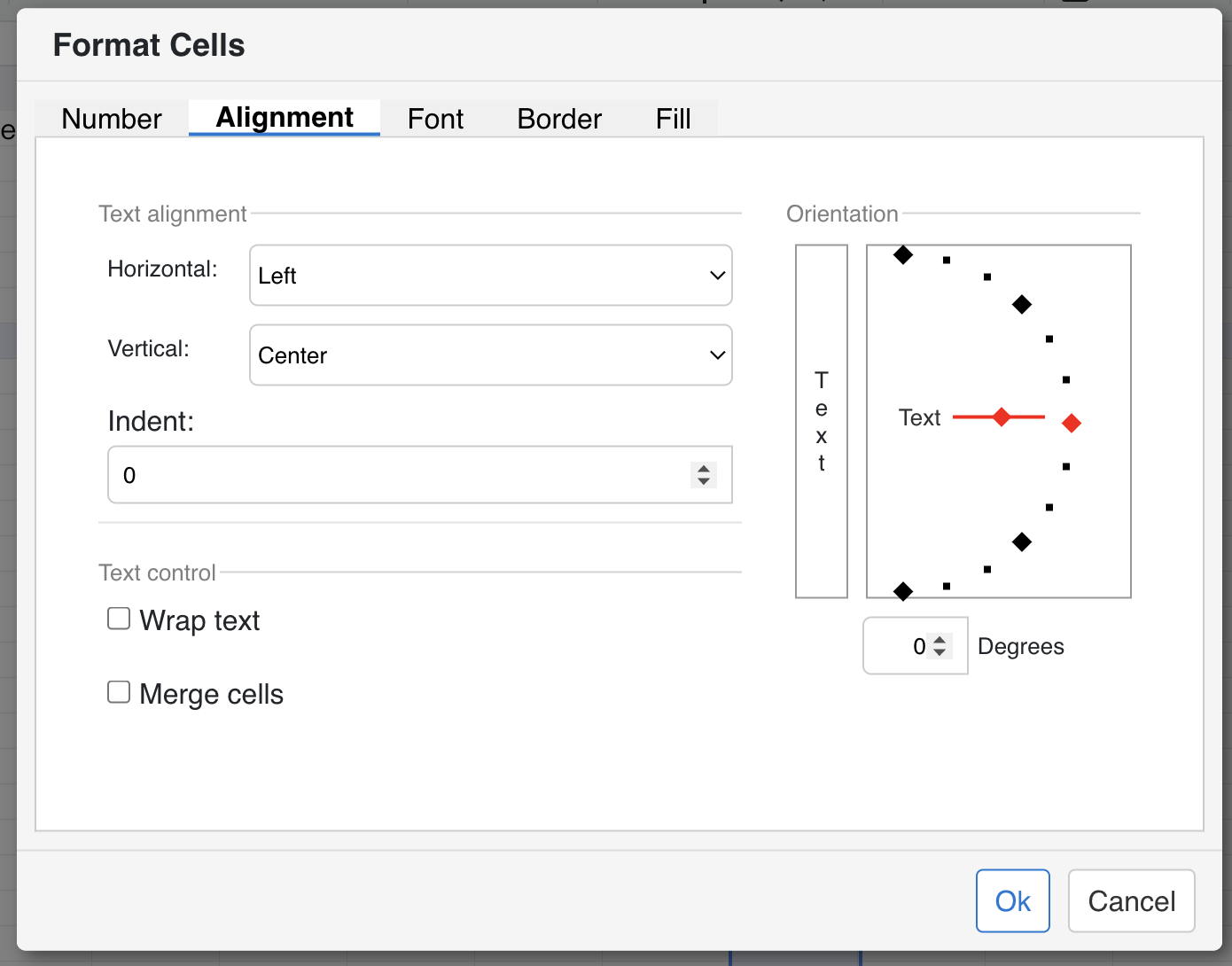

    Choose Other Angle. A modal dialog appears where you can type any angle between ‑90° and 90°. Click OK to apply or Cancel to dismiss.

Options & Alerts

  • Predefined angles give quick access to the most common orientations.
  • Custom angle lets you fine‑tune the rotation; entering a value outside the ‑90 → 90 range will be rejected by the UI.
  • The selected rotation remains active in the toolbar dropdown, so subsequent cell selections will use the same orientation until you change it again.

JavaScript API

text rotation changes can be achieved by setting the textRotate attribute on a cell or range using the setRangeAttr method of the data object. After updating the attribute, call the render method to apply the changes visually.

// Assume xs is your x_spreadsheet instance
xs = x_spreadsheet('#gridjs-demo-uid', option);
const range = {"sri":2,"sci":2,"eri":2,"eci":2}; // Define the cell range (row/col indices)
// Set the text rotation of a specific cell or range
xs.sheet.data.setRangeAttr(range, 'textRotate', "45");
// Render the changes to update the UI
xs.sheet.table.render();

Relevant functions

Function Description Parameters Returns
xs.sheet.data.setRangeAttr(range, attr, value) Modifies an attribute of the currently selected range. For text rotation, set attr to 'textRotate' and value to the desired angle in degrees (e.g., "45"). range – object (contains sri, sci, eri, eci for start/end row/column).
attr – string ('textRotate' only).
value – string (angle in degrees).		 undefined (grid refreshes automatically).
xs.sheet.table.render() Re-renders the table UI to reflect any data or style changes. None. undefined.

Tips

  • Select cells first – Rotation always applies to the active cell or range, so make your selection before opening the dropdown.
  • Keep the dropdown open – After applying a rotation, the dropdown stays in the chosen state, allowing rapid changes across multiple selections.
