Zoom Levels

Introduction

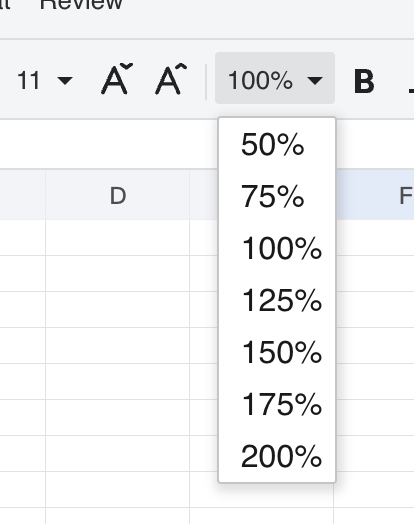

GridJs provides a toolbar item with tag zoom-size and label Zoom. The dropdown contains seven preset levels: 50%, 75%, 100%, 125%, 150%, 175%, and 200%. Selecting one preset sends the selected object (for example { text: "150%", number: 1.5 }) through the toolbar change pipeline and calls sheet.setzoom(value.number). On touch devices, GridJs also handles pinch gestures and clamps pinch zoom to the range 0.5 to 2 before calling setzoom.

How to use

  1. Open GridJs and locate the Zoom control in the toolbar.

  1. Click the Zoom dropdown and select one preset value from 50%, 75%, 100%, 125%, 150%, 175%, or 200%.

  2. After selection, GridJs routes the toolbar event as type === 'zoom-size' and applies this.setzoom(value.number).

  3. If you are using a touch device, use a pinch gesture on the sheet area. GridJs reads evt.zoom, clamps values above 2 down to 2, clamps values below 0.5 up to 0.5, and then applies setzoom.

  4. In protected-sheet mode, zoom is still allowed because zoom-size is included in protectSheetAllowOperations.

JavaScript API

const xs = x_spreadsheet('#gridjs-demo-uid', options);

// Programmatically apply zoom.
xs.setZoomLevel(1.25);

// You can also restore normal scale.
xs.setZoomLevel(1);

Relevant functions

Function Description Parameters Returns
setZoomLevel(v) Public Spreadsheet method that forwards zoom changes to sheet.setzoom(v). v: zoom factor (for example 0.5, 1, 1.25, 2) void
sheet.setzoom(v) Applies zoom to table/data state, updates overlay sizing for zoom < 1 on non-mobile, calls canvas zoom, re-renders via sheetReset, and updates conditional-image zoom. v: zoom factor void
pinch(evt) Touch gesture handler that clamps evt.zoom into [0.5, 2] before calling setzoom. evt.zoom: gesture zoom factor void

The inspected index.d.ts file in this repository does not declare setZoomLevel, but the index.js implementation exposes and uses this method directly.

Common Questions

Q: What zoom presets are available in the toolbar? A: The dropdown defines exactly seven presets: 50%, 75%, 100%, 125%, 150%, 175%, and 200%.

Q: What is the default zoom level when data is initialized? A: DataProxy initializes zoomlevel to 1.

Q: Does pinch zoom have limits? A: Yes. The pinch handler clamps zoom values to a minimum of 0.5 and a maximum of 2.

Q: Is zoom blocked when the sheet is protected? A: No. zoom-size is explicitly included in the allowed operations list for protected sheets.
