Create High-Low-Close (HLC) Stock Chart with Node.js via C++

Possible Usage Scenarios

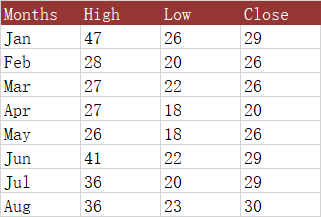

The High-Low-Close (HLC) stock chart uses four columns of data. The first column is a category, usually a date but stock names can also be used. The next three columns in order are for high, low, and closing prices. The range of prices for each category is indicated by a vertical line from low to high, and the closing price is shown using a tick mark extending to the right of this line.

Visibility improvements in the chart

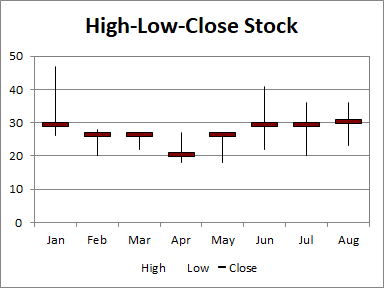

Sometimes, to make the chart look more intuitive, we can modify the appearance of the close marker, or display it on the secondary axis.

Sample Code

The following sample code loads the sample Excel file and generates the output Excel file.

const path = require("path");
const AsposeCells = require("aspose.cells.node");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "High-Low-Close.xlsx");

// Create an instance of Workbook
const workbook = new AsposeCells.Workbook(filePath);
// Access the first worksheet.
const worksheet = workbook.getWorksheets().get(0);
// Create High-Low-Close-Stock Chart
const pieIdx = worksheet.getCharts().add(AsposeCells.ChartType.StockHighLowClose, 5, 6, 20, 12);
// Retrieve the Chart object
const chart = worksheet.getCharts().get(pieIdx);
// Set the legend **to be shown**
chart.setShowLegend(true);
// **Set the chart title**
chart.getTitle().setText("High-Low-Close Stock");
// **Set the legend** at the bottom of the chart area
chart.getLegend().setPosition(AsposeCells.LegendPositionType.Bottom);
// Set data range
chart.setChartDataRange("A1:D9", true);
// Set category data
chart.getNSeries().setCategoryData("A2:A9");
// Set the marker with the built-in data
chart.getNSeries().get(2).getMarker().setMarkerStyle(AsposeCells.ChartMarkerType.Dash);
chart.getNSeries().get(2).getMarker().setMarkerSize(20);
chart.getNSeries().get(2).getMarker().getArea().setFormatting(AsposeCells.FormattingType.Custom);
chart.getNSeries().get(2).getMarker().getArea().setForegroundColor(AsposeCells.Color.Maroon);
// **Fill the PlotArea with nothing**
chart.getPlotArea().getArea().getFillFormat().setFillType(AsposeCells.FillType.None);
// Save the Excel file
workbook.save("out.xlsx");
