Create Transparent Image of Excel Worksheet with Node.js via C++

Sometimes, you need to generate an image of your worksheet as a transparent image. You want to apply transparency to all cells that have no fill colors. Aspose.Cells provides the ImageOrPrintOptions.getTransparent() property to apply transparency to the worksheet image. When this property is false, cells with no fill colors are drawn in white, and when it is true, cells with no fill colors are drawn transparently.

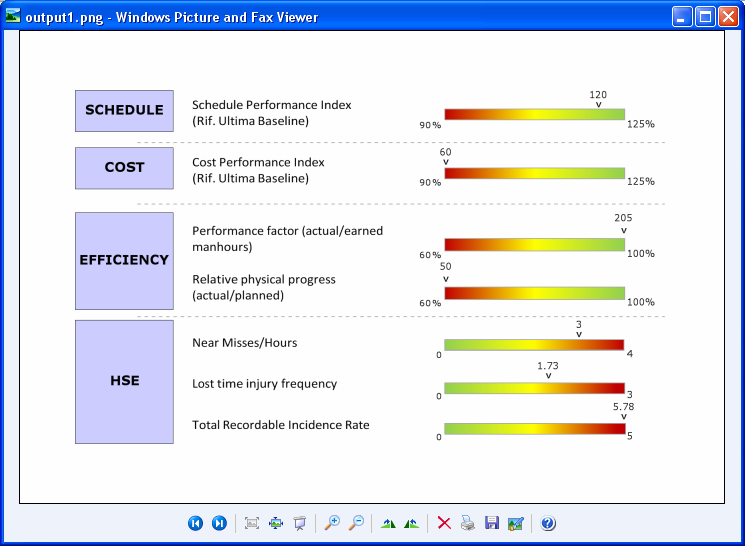

In the following worksheet image, transparency has not been applied. The cells with no fill colors are drawn white.

Output without transparency: the cell background is white

While, in the following worksheet image, transparency has been applied. The cells with no fill colors are transparent.

Output with transparency enabled

The following sample code generates a transparent image from an Excel worksheet.

const path = require("path");
const AsposeCells = require("aspose.cells.node");

 // Source directory
 const sourceDir = path.join(__dirname, "data");

 // Output directory
 const outputDir = path.join(__dirname, "output");

 // Create workbook object from source file
 const wb = new AsposeCells.Workbook(path.join(sourceDir, "sampleCreateTransparentImage.xlsx"));

 // Apply different image or print options
 const imgOption = new AsposeCells.ImageOrPrintOptions();
 imgOption.setImageType(AsposeCells.ImageType.Png);
 imgOption.setHorizontalResolution(200);
 imgOption.setVerticalResolution(200);
 imgOption.setOnePagePerSheet(true);

 // Apply transparency to the output image
 imgOption.setTransparent(true);

 // Create image after applying image or print options
 const sr = new AsposeCells.SheetRender(wb.getWorksheets().get(0), imgOption);
 sr.toImage(0, path.join(outputDir, "outputCreateTransparentImage.png"));
