Extract OLE Objects from Workbook with Node.js via C++

Sometimes, you do need to extract OLE objects from a workbook. Aspose.Cells supports extracting and saving those OLE objects.

This article shows how to create a console application in Node.js via C++ and extract different OLE objects from a workbook with a few simple lines of code.

Extract OLE Objects from a Workbook

Creating a Template Workbook

1. Create a workbook in Microsoft Excel.
2. Add a Microsoft Word document, an Excel workbook, and a PDF document as OLE objects on the first worksheet.

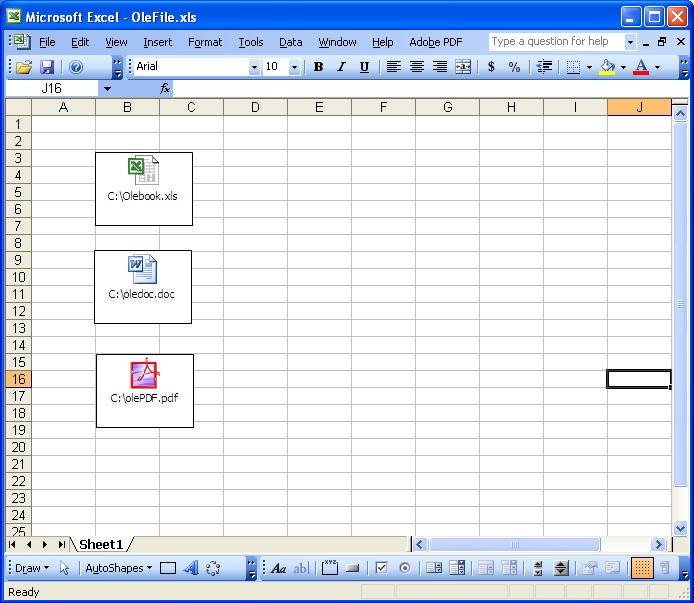

Template document with OLE objects (OleFile.xls)

Next, extract the OLE objects and save them to the hard disk with their respective file types.

Download and Install Aspose.Cells

1. Download Aspose.Cells for Node.js via C++.
2. Install it on your development computer.

All Aspose components, when installed, work in evaluation mode. The evaluation mode has no time limit and it only injects watermarks into produced documents.

Create a Project

Start Node.js and create a new console application. This example will show a Node.js console application, but you can use any JavaScript-compatible environment as well.

1. Add Dependencies
   1. Add a reference to Aspose.Cells component to your project, for example, include the package using require function:

   const { Cells } = require("aspose.cells");


Extract OLE Objects

The code below does the actual work of finding and extracting OLE objects. The OLE objects (DOC, XLS, and PDF files) are saved to disk.

const fs = require("fs");
const path = require("path");
const AsposeCells = require("aspose.cells.node");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");

// Open the template file.
const workbook = new AsposeCells.Workbook(path.join(dataDir, "oleFile.xlsx"));

// Get the OleObject Collection in the first worksheet.
const oles = workbook.getWorksheets().get(0).getOleObjects();

// Loop through all the oleobjects and extract each object in the worksheet.
for (let i = 0; i < oles.getCount(); i++) {
const ole = oles.get(i);
// Specify the output filename.
let fileName = path.join(dataDir, "outOle" + i + ".");
// Specify each file format based on the oleobject format type.
switch (ole.getFileFormatType()) {
case AsposeCells.FileFormatType.Doc:
fileName += "doc";
break;
case AsposeCells.FileFormatType.Excel97To2003:
fileName += "Xlsx";
break;
case AsposeCells.FileFormatType.Ppt:
fileName += "Ppt";
break;
case AsposeCells.FileFormatType.Pdf:
fileName += "Pdf";
break;
case AsposeCells.FileFormatType.Unknown:
fileName += "Jpg";
break;
default:
//........
break;
}
// Save the oleobject as a new excel file if the object type is xls.
if (ole.getFileFormatType() === AsposeCells.FileFormatType.Xlsx) {
const ms = Buffer.from(ole.getObjectData());
if (ole.getObjectData() != null) {
const oleBook = new AsposeCells.Workbook(ms);
oleBook.getSettings().setIsHidden(false);
oleBook.save(path.join(dataDir, "outOle" + i + ".out.xlsx"));
}
} else {
if (ole.getObjectData() != null) {
fs.writeFileSync(fileName, ole.getObjectData());
}
}
}
