Add Icons to Worksheet with Node.js via C++

Add Icons to Worksheet in Aspose.Cells for Node.js via C++

If you need to use Aspose.Cells to add ‘icons’ in an Excel file, then this document can provide you with some help.

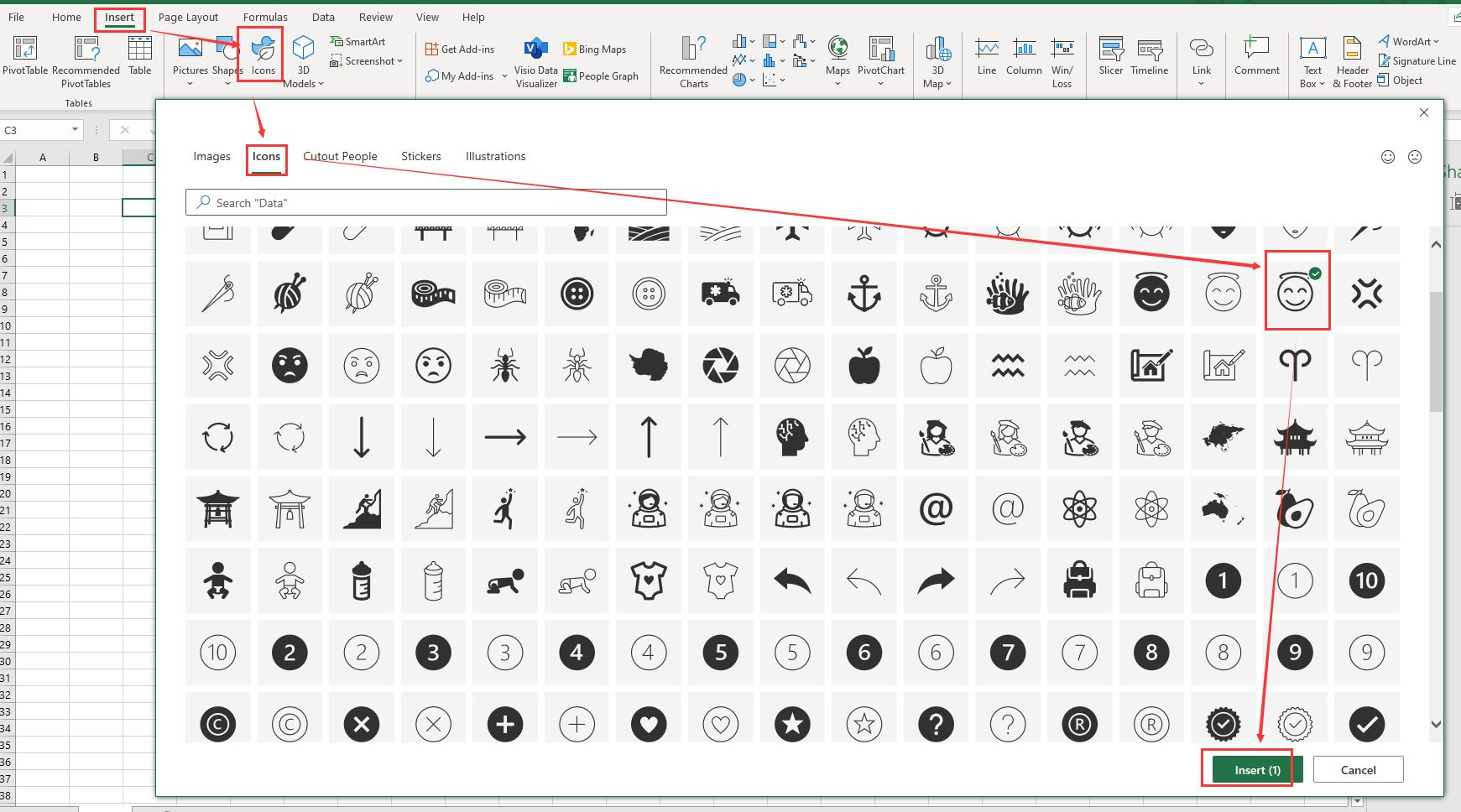

The Excel interface corresponding to the insert icon operation is as follows:

• Select the position of the icon to be inserted in the worksheet
• Left click Insert->Icons
• In the window that opens, select the icon in the red rectangle in the figure above
• Left click Insert, it will be inserted into the Excel file.

The effect is as follows:

Here, we have prepared sample code to help you insert icons using Aspose.Cells. There is also a necessary sample file and an icon resource file. We used the Excel interface to insert an icon with the same display effect as the resource file in the sample file.

Node.js

const fs = require("fs");
const path = require("path");
const AsposeCells = require("aspose.cells.node");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "sample.xlsx");

// Read icon resource file data
const fileName = path.join(dataDir, "icon.svg");
const bytes = fs.readFileSync(fileName).buffer;

// Loads the workbook which contains hidden external links
const workbook = new AsposeCells.Workbook(filePath);

// Access first worksheet from the collection
const sheet = workbook.getWorksheets().get(0);

// Add the icon to the worksheet
sheet.getShapes().addIcons(3, 0, 7, 0, 100, 100, bytes, null);

// Set a prompt message
const c = sheet.getCells().get(8, 7);
c.putValue("Insert via Aspose.Cells");
const s = c.getStyle();
s.getFont().setColor(AsposeCells.Color.Blue);
c.setStyle(s);

// Save. You can check your icon in this way.
workbook.save("sample2.xlsx", AsposeCells.SaveFormat.Xlsx);

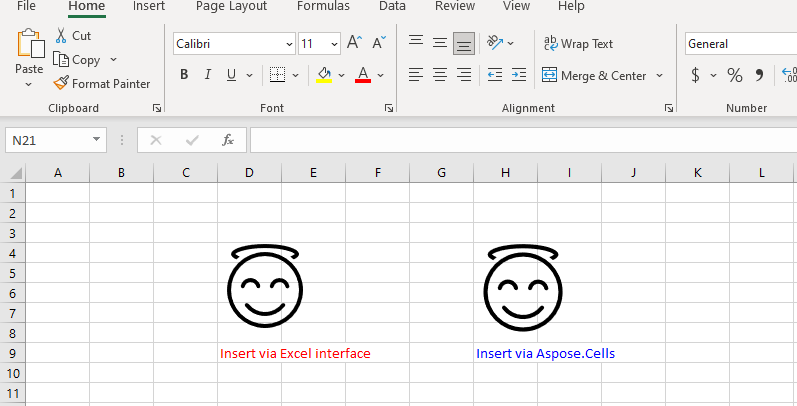

When you execute the above code in your project, you will get the following results:
