Update ActiveX ComboBox Control with Node.js via C++

Possible Usage Scenarios

You can read or write the values of ActiveX ComboBox Control using Aspose.Cells for Node.js via C++. Please access the ActiveX Control via Shape.getActiveXControl() property and check its type via ActiveXControlBase.getType() property, it should return ControlType.ComboBox value and then typecast it into ComboBoxActiveXControl object and read or modify its various properties.

Please download the sample excel file used in the following sample code.

Update ActiveX ComboBox Control

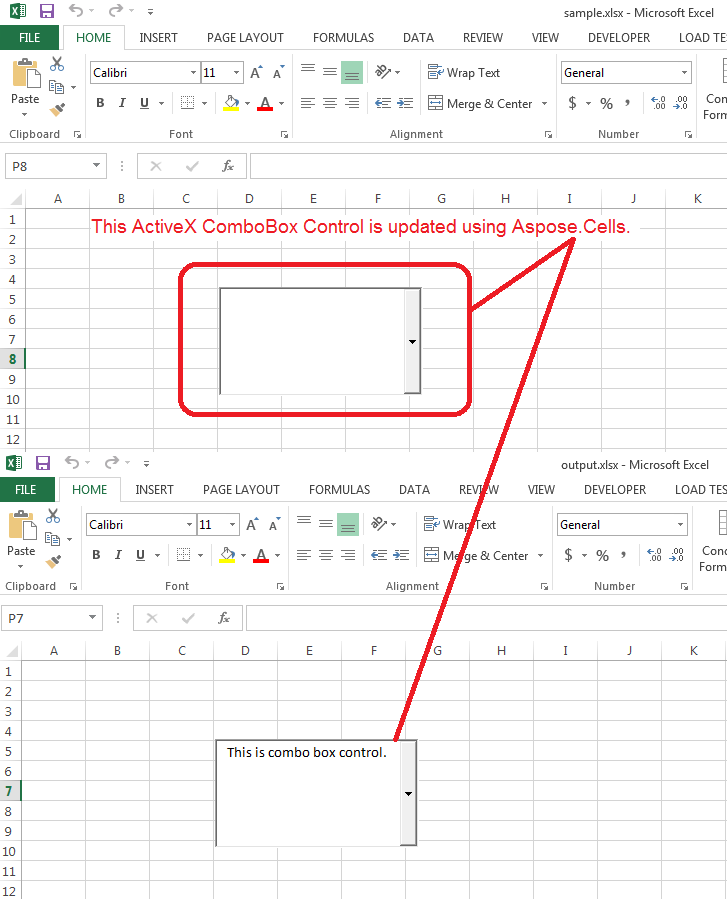

The following screenshot shows the effect of the sample code on the sample excel file. As you can see, the ActiveX ComboBox value has been updated to “This is combo box control”.

Sample Code

The following sample code updates the value of ActiveX ComboBox Control present inside the sample excel file.

const path = require("path");
const AsposeCells = require("aspose.cells.node");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "SourceFile_activex.xlsx");
// Create a workbook
const wb = new AsposeCells.Workbook(filePath);

// Access first shape from first worksheet
const shape = wb.getWorksheets().get(0).getShapes().get(0);

// Access ActiveX ComboBox Control and update its value
if (shape.getActiveXControl() != null)
{
// Access Shape ActiveX Control
const c = shape.getActiveXControl();

if (c instanceof AsposeCells.ComboBoxActiveXControl)
{
// Type cast ActiveXControl into ComboBoxActiveXControl and change its value
const comboBoxActiveX = new AsposeCells.ComboBoxActiveXControl(c);
comboBoxActiveX.setValue("This is combo box control with updated value.");

}

}

// Save the workbook
const outputFilePath = path.join(dataDir, "OutputFile_out.xlsx");
wb.save(outputFilePath);
