X Axis Vs. Category Axis with Node.js via C++
Possible Usage Scenarios
There are different types of X axes. While the Y axis is a Value type axis, the X axis can be a Category type axis or a Value type axis. Using a Value axis, the data is treated as continuously varying numerical data, and the marker is placed at a point along the axis which varies according to its numerical value. Using a Category axis, the data is treated as a sequence of non-numerical text labels, and the marker is placed at a point along the axis according to its position in the sequence. The sample below illustrates the difference between Value and Category Axes. Our sample data is shown in the sample Table file below. The first column contains our X axis data, which can be treated as Categories or as Values. Note that the numbers are not equally spaced, nor do they even appear in numerical order.
Handle X and Category axis like Microsoft Excel

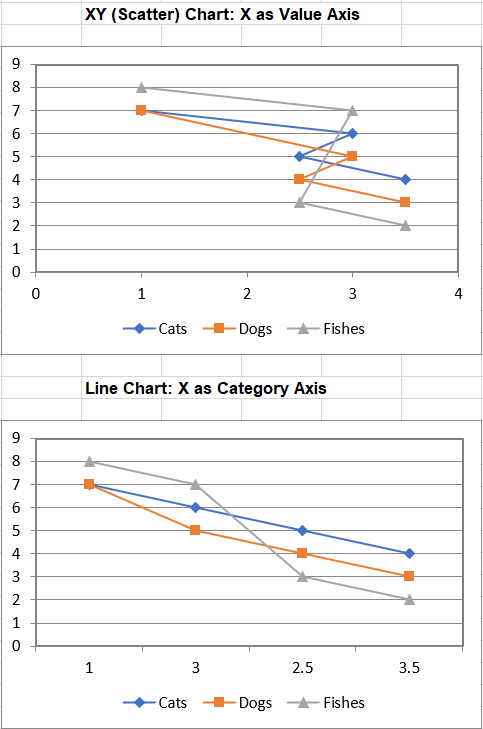

We will display this data on two types of chart, the first chart is XY (Scatter) chart X as Value Axis, the second chart is line chart X as Category Axis.
Sample Code
const path = require("path");
const AsposeCells = require("aspose.cells.node");
// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "sample.xlsx");
// Loads the workbook which contains hidden external links
const workbook = new AsposeCells.Workbook(filePath);
// Access the first worksheet.
const worksheet = workbook.getWorksheets().get(0);
// Put the sample values used in charts
worksheet.getCells().get("A2").putValue(1);
worksheet.getCells().get("A3").putValue(3);
worksheet.getCells().get("A4").putValue(2.5);
worksheet.getCells().get("A5").putValue(3.5);
worksheet.getCells().get("B1").putValue("Cats");
worksheet.getCells().get("C1").putValue("Dogs");
worksheet.getCells().get("D1").putValue("Fishes");
worksheet.getCells().get("B2").putValue(7);
worksheet.getCells().get("B3").putValue(6);
worksheet.getCells().get("B4").putValue(5);
worksheet.getCells().get("B5").putValue(4);
worksheet.getCells().get("C2").putValue(7);
worksheet.getCells().get("C3").putValue(5);
worksheet.getCells().get("C4").putValue(4);
worksheet.getCells().get("C5").putValue(3);
worksheet.getCells().get("D2").putValue(8);
worksheet.getCells().get("D3").putValue(7);
worksheet.getCells().get("D4").putValue(3);
worksheet.getCells().get("D5").putValue(2);
// Create Line Chart: X as Category Axis
let pieIdx = worksheet.getCharts().add(AsposeCells.ChartType.LineWithDataMarkers, 6, 15, 20, 21);
// Retrieve the Chart object
let chart = worksheet.getCharts().get(pieIdx);
// Add Series
chart.getNSeries().add("B2:D5", true);
// Set the category data
chart.getNSeries().setCategoryData("=Sheet1!$A$2:$A$5");
// Set the first series name
chart.getNSeries().get(0).setName("Cats");
// Set the second series name
chart.getNSeries().get(1).setName("Dogs");
// Set the third series name
chart.getNSeries().get(2).setName("Fishes");
// Set the Legend at the bottom of the chart area
chart.getLegend().setPosition(AsposeCells.LegendPositionType.Bottom);
// Fill the PlotArea area with nothing
chart.getPlotArea().getArea().getFillFormat().setFillType(AsposeCells.FillType.None);
// Create XY (Scatter) Chart: X as Value Axis
pieIdx = worksheet.getCharts().add(AsposeCells.ChartType.ScatterConnectedByLinesWithDataMarker, 6, 6, 20, 12);
// Retrieve the Chart object
chart = worksheet.getCharts().get(pieIdx);
// Add Series
chart.getNSeries().add("B2:D5", true);
// Set X values for series
chart.getNSeries().get(0).setXValues("{1,3,2.5,3.5}");
chart.getNSeries().get(1).setXValues("{1,3,2.5,3.5}");
chart.getNSeries().get(2).setXValues("{1,3,2.5,3.5}");
// Set the first series name
chart.getNSeries().get(0).setName("Cats");
// Set the second series name
chart.getNSeries().get(1).setName("Dogs");
// Set the third series name
chart.getNSeries().get(2).setName("Fishes");
// Set the Legend at the bottom of the chart area
chart.getLegend().setPosition(AsposeCells.LegendPositionType.Bottom);
// Fill the PlotArea area with nothing
chart.getPlotArea().getArea().getFillFormat().setFillType(AsposeCells.FillType.None);
// Save the Excel file
workbook.save("XAxis.xlsx");
