How to Merge and Unmerge

Cell Merge and Unmerge lets you combine a rectangular range of cells into a single larger cell or split a previously merged cell back into its original grid. This is useful for titles, section headers, summary rows, or any layout where a value should span multiple columns or rows.

1. Feature Overview

Merging creates one visual cell that spans several columns and/or rows while preserving the value and style of the top‑left cell in the selected range. Un‑merging restores the original individual cells, keeping the data that was stored in the top‑left cell.

When to use

• Add a heading that stretches across the worksheet width.
• Combine cells for a total row that should be visually distinct.
• Split a merged area when the layout needs to change.

---

2. Client‑side Usage

2.1 UI Operations

Follow these steps directly in the GridJs spreadsheet UI.

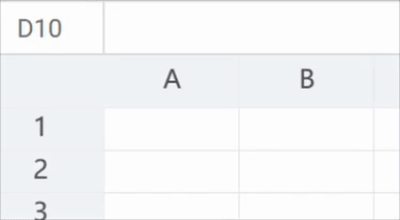

1. Select a rectangular range – click the first cell, drag to the last cell.

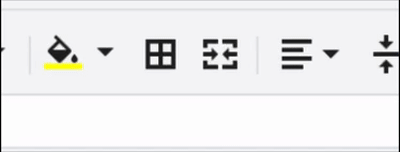

2. Click “Merge” icon in toolbar – when the icon is clicked, it toggles to “Un‑merge” if the selection is already merged.

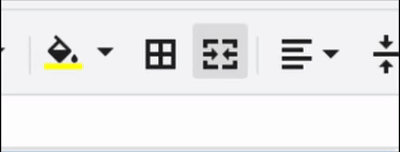

3. Click the “Merge” icon to un‑merge – if the selected range is merged, clicking the icon again will restore the individual cells.


The spreadsheet automatically redraws the affected area, showing a single merged cell or the restored individual cells.

---

2.2 JavaScript API

Below is a complete GridJs initialization followed by the exact calls you need to merge or unmerge cells programmatically.

// ------------------------------------------------------------
// 1️⃣ Initialize the x‑spreadsheet instance
// ------------------------------------------------------------
xs = x_spreadsheet('#gridjs-demo-uid', option);

function mergeRange(range) {
    // Apply the merge
    xs.sheet.data.setRangeAttr(range,'merge', true);
    // Refresh the grid to show changes
    xs.sheet.table.render();
}

function unmergeRange(range) {
    xs.sheet.data.setRangeAttr(range,'merge', false);
    xs.sheet.table.render();
}

// ------------------------------------------------------------
// 4️⃣ Example usage
// ------------------------------------------------------------
// Merge cells A1:B2
mergeRange({sri:0, sci:0, eri:1, eci:1});

// Later, un‑merge the same area
unmergeRange({sri:0, sci:0, eri:1, eci:1});

API Reference

Function	Description	Parameters	Returns
xs.sheet.data.setRangeAttr(range, attr, value)	Modifies an attribute of the currently selected range. For merging, set attr to 'merge' and value to true (merge) or false (un‑merge).	range – object (contains sri, sci, eri, eci for start/end row/column). attr – string ('merge' only). value – boolean (true to merge, false to un‑merge).	undefined (grid refreshes automatically).

Tip – The merge icon is toggleable. If the selected range is already merged, clicking it will un‑merge the cells.
For live demos and more examples, visit: https://github.com/aspose-cells/Aspose.Cells.Grid-for-Python-via-.NET/tree/main/Examples.GridJs
