How to Print

The GridJs provides a built-in Print Settings modal that allows users to customize the layout and appearance of the worksheet before sending it to the printer or saving it as a PDF. This ensures that large datasets are presented readably on standard paper sizes.

Introduction

Spreadsheets often contain data that exceeds the dimensions of a standard sheet of paper. To produce a professional-looking document, it is essential to control how the grid data flows across pages, how it is scaled, and what elements are included.

The Print Settings feature allows you to configure:

• Page Orientation: Switch between Portrait and Landscape.
• Paper Size: Support for standard ISO sizes (A3, A4, etc.).
• Scaling: Options to fit content to a specific page count.
• Page Order: Control the sequence in which pages are numbered and printed.
• Content Visibility: Toggle images and shapes.

Accessing Print Settings

To access the print settings:

1. Click the Print icon on the toolbar (or select Print from the menu).

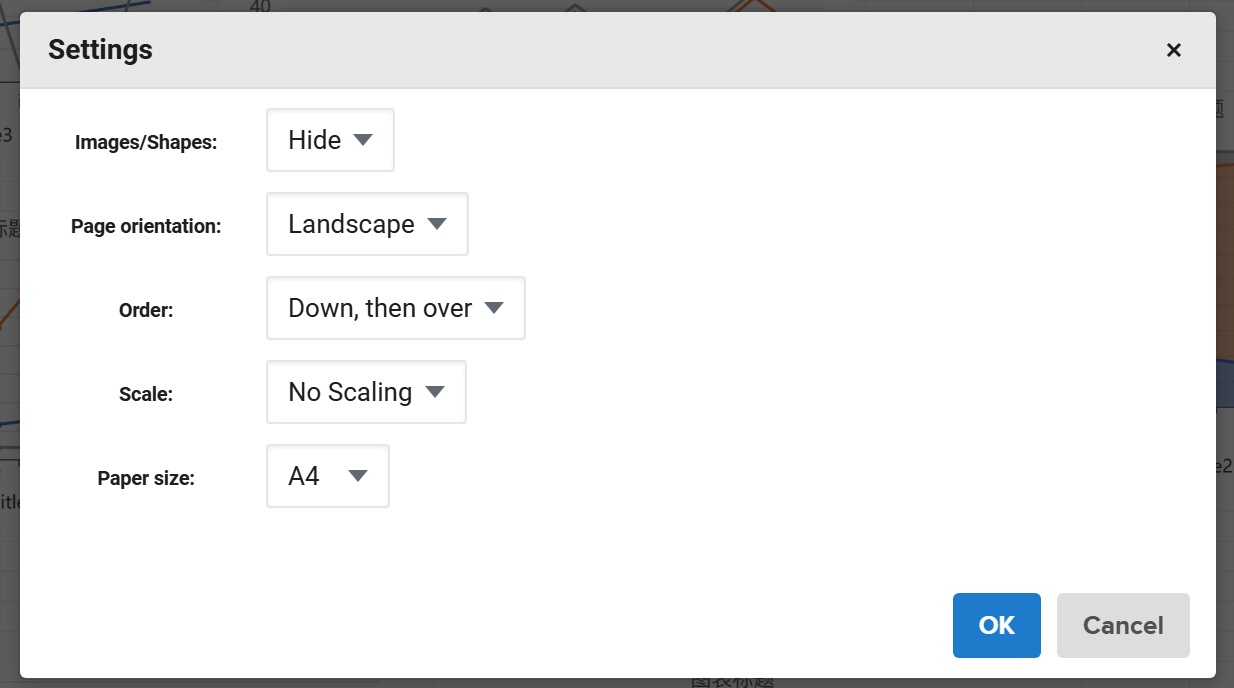

2. The Settings modal window will appear, presenting various configuration options.
3. After adjusting settings, click OK to generate a preview and open the system print dialog.

Configuration Options

The ModalPrint class provides the following configurable parameters. Below is a detailed explanation of each option:

1. Page Orientation

Determines the layout direction of the paper.

• Landscape: (Default) Orients the paper horizontally. Best for spreadsheets with many columns.
• Portrait: Orients the paper vertically. Best for spreadsheets with many rows but fewer columns.

2. Paper Size

Select the physical paper size for the output. The available options correspond to standard ISO paper sizes:

• A4: (Default) The standard paper size used worldwide (210 x 297 mm).
• A3: Larger size, suitable for extensive tables.
• A5: Smaller size.
• B4, B5: Additional standard sizes.

3. Scale

Scaling is critical for fitting spreadsheet data onto physical pages.

• No Scaling: (Default) Prints the data at 100% size. Data that doesn’t fit will spill over to subsequent pages.
• Fit Sheet on One Page: Shrinks the entire worksheet (width and height) to fit on a single sheet of paper. Note: For very large datasets, this may make the text unreadably small.
• Fit All Columns on One Page: Scales the width of the data to fit the page width. Rows will spill over to subsequent pages as needed. This is the most common setting for wide tables.
• Fit All Rows on One Page: Scales the height of the data to fit the page height. Columns will spill over to horizontal pages.

4. Page Order

When a worksheet is too large to fit on a single page (and scaling is not set to fit on one page), it is split into multiple pages. The Order setting determines the sequence in which these pages are printed.

• Down, then over: (Default) Prints pages from top to bottom first, then moves to the right to print the remaining columns. (N-pattern).
• Over, then down: Prints pages from left to right first, then moves down to print the remaining rows. (Z-pattern).

5. Images/Shapes

Controls the visibility of floating objects like charts, inserted images, and shapes during printing.

• Show: (Default) All images and shapes are included in the print output.
• Hide: Images and shapes are excluded, printing only the cell data and grid styles. This is useful for saving ink or producing data-only reports.

How it Works

When the user confirms the settings in the ModalPrint dialog, the following internal process occurs:

1. Configuration Capture: The selected options (Orientation, Size, Scale, Order, ImageShow) are captured from the UI form fields.
2. Preview Generation: The application calculates the page breaks based on the selected Paper Size and Scale.
3. Rendering:
   • If Scale is set to fitsheet, fitcolumns, or fitrows, a transformation matrix is applied to the canvas to reduce the content size.
   • If Images/Shapes is set to hide, the rendering loop skips drawing the fabObjects (fabric.js objects) on the canvas.
4. System Print: The component triggers the browser’s native window.print() method or opens a new window with the generated canvas image, allowing the user to select their physical printer or “Save as PDF”.
