Создание круговой диаграммы с направляющими линиями с помощью JavaScript через C++
Contents
[
Hide
]
Этот журнал объясняет, как создать круговую диаграмму с направляющими линиями с нуля с использованием API Script Aspose.Cells for Java через C++. В Excel по умолчанию установлена опция ‘Показать направляющие линии’, поэтому при создании круговой диаграммы линии отображаются. Однако при создании аналогичной диаграммы с помощью API Aspose.Cells, необходимо явно установить свойство Series.hasLeaderLines.
Чтобы продемонстрировать использование Aspose.Cells for JavaScript через C++ API для создания круговой диаграммы с направляющими линиями, сначала создадим новый Workbook и введем некоторые данные, которые будут служить источником данных серии. После того как данные будут установлены, мы добавим Chart типа ChartType.Pie в коллекцию диаграмм и настроим его различные аспекты для получения желаемого вида диаграммы.
<!DOCTYPE html>
<html>
<head>
<title>Create Pie Chart Example</title>
</head>
<body>
<h1>Create Pie Chart Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, ChartType, LabelPositionType, DataLabelsSeparatorType } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
const resultDiv = document.getElementById('result');
if (!fileInput.files.length) {
resultDiv.innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiating a Workbook object from the uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Access the first worksheet
const worksheet = workbook.worksheets.get(0);
// Add two columns of data
worksheet.cells.get("A1").putValue("Retail");
worksheet.cells.get("A2").putValue("Services");
worksheet.cells.get("A3").putValue("Info & Communication");
worksheet.cells.get("A4").putValue("Transport Equip");
worksheet.cells.get("A5").putValue("Construction");
worksheet.cells.get("A6").putValue("Other Products");
worksheet.cells.get("A7").putValue("Wholesale");
worksheet.cells.get("A8").putValue("Land Transport");
worksheet.cells.get("A9").putValue("Air Transport");
worksheet.cells.get("A10").putValue("Electric Appliances");
worksheet.cells.get("A11").putValue("Securities");
worksheet.cells.get("A12").putValue("Textiles & Apparel");
worksheet.cells.get("A13").putValue("Machinery");
worksheet.cells.get("A14").putValue("Metal Products");
worksheet.cells.get("A15").putValue("Cash");
worksheet.cells.get("A16").putValue("Banks");
worksheet.cells.get("B1").putValue(10.4);
worksheet.cells.get("B2").putValue(5.2);
worksheet.cells.get("B3").putValue(6.4);
worksheet.cells.get("B4").putValue(10.4);
worksheet.cells.get("B5").putValue(7.9);
worksheet.cells.get("B6").putValue(4.1);
worksheet.cells.get("B7").putValue(3.5);
worksheet.cells.get("B8").putValue(5.7);
worksheet.cells.get("B9").putValue(3);
worksheet.cells.get("B10").putValue(14.7);
worksheet.cells.get("B11").putValue(3.6);
worksheet.cells.get("B12").putValue(2.8);
worksheet.cells.get("B13").putValue(7.8);
worksheet.cells.get("B14").putValue(2.4);
worksheet.cells.get("B15").putValue(1.8);
worksheet.cells.get("B16").putValue(10.1);
// Create a pie chart and add it to the collection of charts
const id = worksheet.charts.add(ChartType.Pie, 3, 3, 23, 13);
// Access newly created Chart instance
const chart = worksheet.charts.get(id);
// Set series data range
chart.nSeries.add("B1:B16", true);
// Set category data range
chart.nSeries.categoryData = "A1:A16";
// Turn off legend
chart.showLegend = false;
// Access data labels
const dataLabels = chart.nSeries.get(0).dataLabels;
// Turn on category names
dataLabels.showCategoryName = true;
// Turn on percentage format
dataLabels.showPercentage = true;
// Set position
dataLabels.position = LabelPositionType.OutsideEnd;
// Set separator
dataLabels.separatorType = DataLabelsSeparatorType.Comma;
// Saving the modified Excel file
const outputData = workbook.save(SaveFormat.Xlsx);
const blob = new Blob([outputData]);
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'output.xlsx';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download Excel File';
resultDiv.innerHTML = '<p style="color: green;">Operation completed successfully! Click the download link to get the modified file.</p>';
});
</script>
</html>
До сих пор мы создали круговую диаграмму и установили различные ее аспекты. Теперь мы собираемся включить линии-проводники для диаграммы. Обратите внимание, чтобы показать линии-проводники, нужно немного переместить метки данных.
Следующий кусок кода включает линии-проводники, обновляет диаграмму, а затем рассчитывает позиции меток данных для их соответствующего перемещения.
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Pie Chart Example</title>
</head>
<body>
<h1>Aspose.Cells Pie Chart Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, ChartType, LabelPositionType, DataLabelsSeparatorType } = AsposeCells;
const initPromise = AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
await initPromise;
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiating a Workbook object by opening the uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Access the first worksheet
const worksheet = workbook.worksheets.get(0);
const cells = worksheet.cells;
// Add two columns of data
cells.get("A1").value = "Retail";
cells.get("A2").value = "Services";
cells.get("A3").value = "Info & Communication";
cells.get("A4").value = "Transport Equip";
cells.get("A5").value = "Construction";
cells.get("A6").value = "Other Products";
cells.get("A7").value = "Wholesale";
cells.get("A8").value = "Land Transport";
cells.get("A9").value = "Air Transport";
cells.get("A10").value = "Electric Appliances";
cells.get("A11").value = "Securities";
cells.get("A12").value = "Textiles & Apparel";
cells.get("A13").value = "Machinery";
cells.get("A14").value = "Metal Products";
cells.get("A15").value = "Cash";
cells.get("A16").value = "Banks";
cells.get("B1").value = 10.4;
cells.get("B2").value = 5.2;
cells.get("B3").value = 6.4;
cells.get("B4").value = 10.4;
cells.get("B5").value = 7.9;
cells.get("B6").value = 4.1;
cells.get("B7").value = 3.5;
cells.get("B8").value = 5.7;
cells.get("B9").value = 3;
cells.get("B10").value = 14.7;
cells.get("B11").value = 3.6;
cells.get("B12").value = 2.8;
cells.get("B13").value = 7.8;
cells.get("B14").value = 2.4;
cells.get("B15").value = 1.8;
cells.get("B16").value = 10.1;
// Create a pie chart and add it to the collection of charts
const id = worksheet.charts.add(ChartType.Pie, 3, 3, 23, 13);
// Access newly created Chart instance
const chart = worksheet.charts.get(id);
// Set series data range
chart.nSeries.add("B1:B16", true);
// Set category data range
chart.nSeries.categoryData = "A1:A16";
// Turn off legend
chart.showLegend = false;
// Access data labels
const dataLabels = chart.nSeries.get(0).dataLabels;
// Turn on category names
dataLabels.showCategoryName = true;
// Turn on percentage format
dataLabels.showPercentage = true;
// Set position
dataLabels.position = LabelPositionType.OutsideEnd;
// Set separator
dataLabels.separatorType = DataLabelsSeparatorType.Comma;
// Turn on leader lines
chart.nSeries.get(0).hasLeaderLines = true;
// Calculate chart
chart.calculate();
// You need to move DataLabels a little leftward or rightward depending on their position to show leader lines
const DELTA = 100;
const series0 = chart.nSeries.get(0);
for (let i = 0; i < series0.points.count; i++) {
const pt = series0.points.get(i);
let X = pt.dataLabels.x;
// If it is greater than 2000, then move the X position a little right otherwise move the X position a little left
if (X > 2000)
pt.dataLabels.x = X + DELTA;
else
pt.dataLabels.x = X - DELTA;
}
// Save the modified Excel file and provide download link
const outputData = workbook.save(SaveFormat.Xlsx);
const blob = new Blob([outputData]);
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'output.xlsx';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download Excel File';
document.getElementById('result').innerHTML = '<p style="color: green;">Operation completed successfully! Click the download link to get the modified file.</p>';
});
</script>
</html>

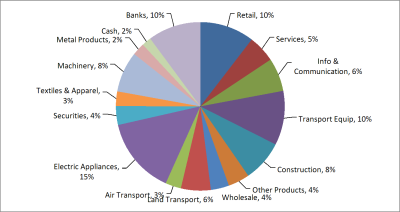

Наконец, следующий код сохраняет диаграмму в формате изображения и книгу в формате XLSX.
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example</title>
</head>
<body>
<h1>Create Pie Chart Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none; margin-right: 10px;">Download Excel File</a>
<a id="downloadImageLink" style="display: none;">Download Chart Image</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
const resultDiv = document.getElementById('result');
resultDiv.innerHTML = '';
// If a file is provided, load it. Otherwise create a new workbook in XLSX format.
let workbook;
if (fileInput.files && fileInput.files.length > 0) {
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
workbook = new Workbook(new Uint8Array(arrayBuffer));
} else {
workbook = new Workbook(AsposeCells.FileFormatType.Xlsx);
}
// Access the first worksheet
const worksheet = workbook.worksheets.get(0);
// Add two columns of data
worksheet.cells.get("A1").putValue("Retail");
worksheet.cells.get("A2").putValue("Services");
worksheet.cells.get("A3").putValue("Info & Communication");
worksheet.cells.get("A4").putValue("Transport Equip");
worksheet.cells.get("A5").putValue("Construction");
worksheet.cells.get("A6").putValue("Other Products");
worksheet.cells.get("A7").putValue("Wholesale");
worksheet.cells.get("A8").putValue("Land Transport");
worksheet.cells.get("A9").putValue("Air Transport");
worksheet.cells.get("A10").putValue("Electric Appliances");
worksheet.cells.get("A11").putValue("Securities");
worksheet.cells.get("A12").putValue("Textiles & Apparel");
worksheet.cells.get("A13").putValue("Machinery");
worksheet.cells.get("A14").putValue("Metal Products");
worksheet.cells.get("A15").putValue("Cash");
worksheet.cells.get("A16").putValue("Banks");
worksheet.cells.get("B1").putValue(10.4);
worksheet.cells.get("B2").putValue(5.2);
worksheet.cells.get("B3").putValue(6.4);
worksheet.cells.get("B4").putValue(10.4);
worksheet.cells.get("B5").putValue(7.9);
worksheet.cells.get("B6").putValue(4.1);
worksheet.cells.get("B7").putValue(3.5);
worksheet.cells.get("B8").putValue(5.7);
worksheet.cells.get("B9").putValue(3);
worksheet.cells.get("B10").putValue(14.7);
worksheet.cells.get("B11").putValue(3.6);
worksheet.cells.get("B12").putValue(2.8);
worksheet.cells.get("B13").putValue(7.8);
worksheet.cells.get("B14").putValue(2.4);
worksheet.cells.get("B15").putValue(1.8);
worksheet.cells.get("B16").putValue(10.1);
// Create a pie chart and add it to the collection of charts
const id = worksheet.charts.add(AsposeCells.ChartType.Pie, 3, 3, 23, 13);
// Access newly created Chart instance
const chart = worksheet.charts.get(id);
// Set series data range
chart.nSeries.add("B1:B16", true);
// Set category data range
chart.nSeries.categoryData = "A1:A16";
// Turn off legend
chart.showLegend = false;
// Access data labels
const dataLabels = chart.nSeries.get(0).dataLabels;
// Turn on category names
dataLabels.showCategoryName = true;
// Turn on percentage format
dataLabels.showPercentage = true;
// Set position
dataLabels.position = AsposeCells.LabelPositionType.OutsideEnd;
// Set separator
dataLabels.separatorType = AsposeCells.DataLabelsSeparatorType.Comma;
// In order to save the chart image, create an instance of ImageOrPrintOptions
const anOption = new AsposeCells.ImageOrPrintOptions();
// Set image format
anOption.imageType = AsposeCells.ImageType.Png;
// Set resolution
anOption.horizontalResolution = 200;
anOption.verticalResolution = 200;
// Render chart to image (returns image byte array in browser)
const imageData = chart.toImage(anOption);
const imageBlob = new Blob([imageData], { type: 'image/png' });
const downloadImageLink = document.getElementById('downloadImageLink');
downloadImageLink.href = URL.createObjectURL(imageBlob);
downloadImageLink.download = 'output_out.png';
downloadImageLink.style.display = 'inline-block';
downloadImageLink.textContent = 'Download Chart Image';
// Save the workbook to see chart inside the Excel
const outputData = workbook.save(SaveFormat.Xlsx);
const blob = new Blob([outputData], { type: 'application/vnd.openxmlformats-officedocument.spreadsheetml.sheet' });
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'output_out.xlsx';
downloadLink.style.display = 'inline-block';
downloadLink.textContent = 'Download Excel File';
resultDiv.innerHTML = '<p style="color: green;">Chart created and files are ready. Click the download links to get the results.</p>';
});
</script>
</html>
| Результирующая круговая диаграмма |
|---|
 |
Продвинутые темы
- Пользовательские цвета секторов в круговой диаграмме
- Определение того, находятся ли точки данных во втором сегменте или в столбце на круговой из кругов или столбчатой из кругов диаграмме
