hur man bygger en samarbetsmöjlighet i Excel med GridJs

Guide för samarbetsredigerare i Excel

Arkitekturöversikt

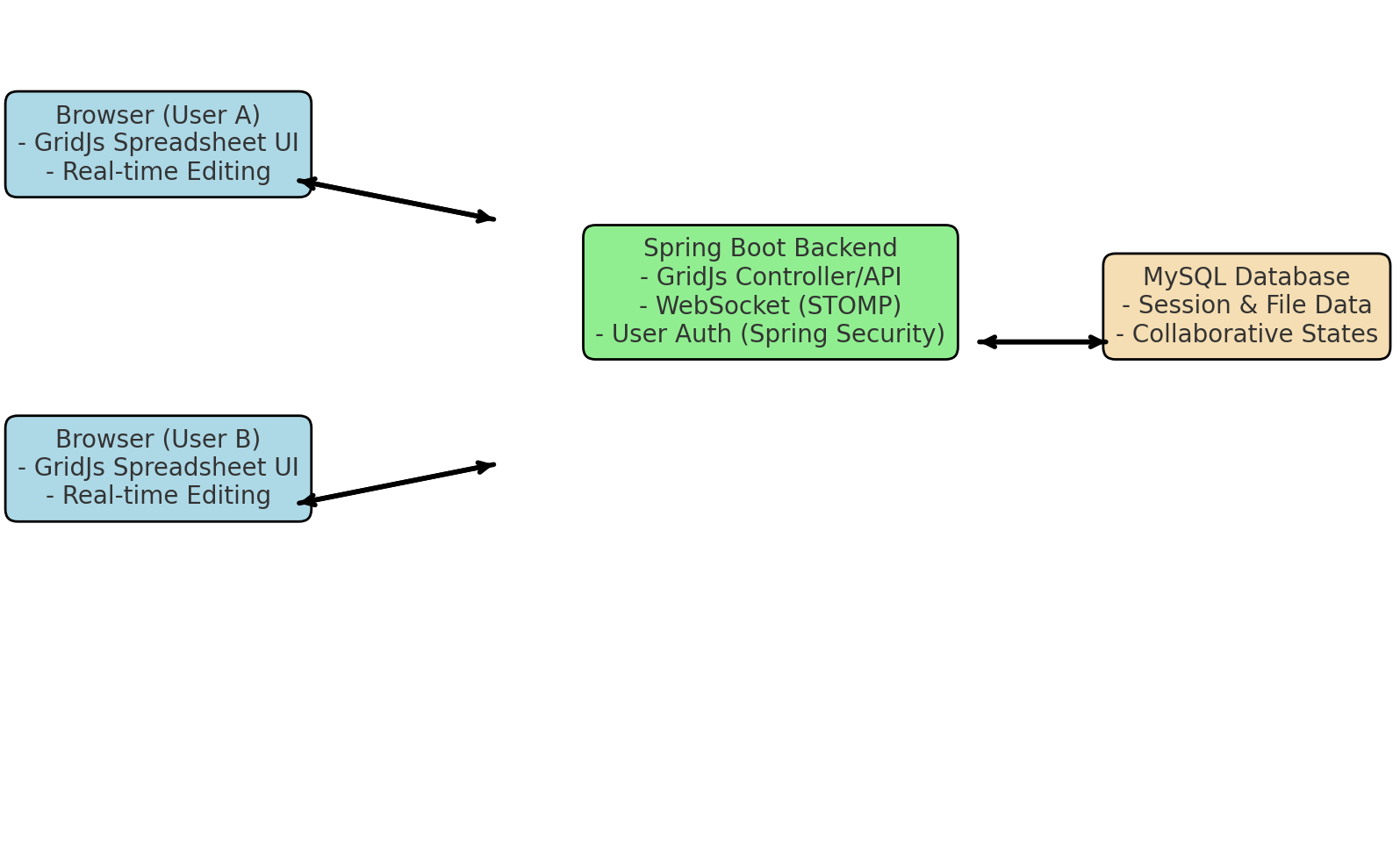

Följande diagram visar hur GridJs möjliggör samarbetsredigering med flera användare, en Spring Boot-backend, WebSocket-kommunikation och en MySQL-databas för tillståndshantering.

GridJs Collaborativ Arkitektur

Förutsättningar

Innan du börjar, se till att du har installerat följande:

  • Java 8+
  • Maven
  • MySQL (eller en annan stödd SQL-databas)
  • (Valfritt) Docker om du föredrar att köra i containrar
  • En giltig Aspose.Cells-licens (eller tillfällig licens)

Step 1: Clone the Demo Project

Clone the official Aspose.Cells GridJs demo repository:

git clone https://github.com/aspose-cells/Aspose.Cells.Grid-for-Java.git
cd Aspose.Cells-for-Java/Examples.GridJs.Collaborative

Step 2: Configure Collaborative Mode

Open the src/main/resources/application.properties file and adjust the settings:

# Directory containing spreadsheet files
testconfig.ListDir=/app/wb

# Directory for storing cache files
testconfig.CachePath=/app/grid_cache

# Aspose.Cells license file
testconfig.AsposeLicensePath=/app/license

# Enable collaborative mode
gridjs.iscollabrative=true

# Database connection (example: MySQL)
spring.datasource.url=jdbc:mysql://localhost:3306/gridjsdemodb?createDatabaseIfNotExist=true&useUnicode=true&serverTimezone=UTC&useSSL=false
spring.datasource.username=root
spring.datasource.password=root
spring.sql.init.platform=mysql

Detta gör att flera användare kan redigera samma kalkylblad samtidigt.
Ändringar lagras i databasen och synkroniseras mellan klienterna i realtid.

Step 3: Run the Application

Run with Maven:

mvn spring-boot:run

Eller direkt från huvudklassen:

src/main/java/com/aspose/gridjsdemo/usermanagement/UserManagementApplication.java

Step 4: Test Collaborative Editing

Open your browser and navigate to:
👉 http://localhost:8080/gridjsdemo/list

Steps:

  1. A login page appears. Click Create User to register User1 and log in. You will then see the file list.
  2. Open a file from the list. The spreadsheet editor will load.
  3. Copy the same URL into another browser window. It will redirect to the login page. Create User2 and log in.
  4. Both users now see the same spreadsheet.
  5. If User1 edits the spreadsheet, User2 will see the changes in real time.
  6. If User2 edits, User1 will see the changes as well.
  7. Users can also download and save the file.

Steg 5: Kör i Docker (Valfritt)

Om du kör i Docker, redigera rad 10 i docker-compose.yml för att mappa licensfilen.

Till exempel, om din licensfil är på C:/license/aspose.lic:

volumes:
  - C:/license/aspose.lic:/app/license  # optional: set Aspose license file

Det här mappar den lokala filen till containern.

Sedan bygger och kör du:

docker-compose up --build

Åtkomst till appen på:
👉 http://localhost:8080/gridjsdemo/list

Key Configuration Details

1. Enable Collaborative Mode

In /src/main/resources/application.properties:

gridjs.iscollabrative=true

I server-side konfiguration /src/main/java/com/aspose/gridjsdemo/filemanagement/FileConfig.java:

@Bean
public GridJsOptions gridJsOptions() {
    //..... other options
    //here we shall set true for collaborative mode
    options.setCollaborative(true);
    return options;
}

Eller globalt:

Config.setCollaborative(true);

I klient-side laddningsalternativ /src/main/resources/templates/file/index.html:

const option = {
    //..... other options
    //here we shall set true for collaborative mode
    isCollaborative: true
    //..... other options
};

2. User System Integration

The demo uses Spring Security for a simple user system.

You must provide a CoWorkUserProvider implementation to connect GridJs with your user system:

In server-side config /src/main/java/com/aspose/gridjsdemo/filemanagement/FileConfig.java:

For example: here we defined MyCustomUser to implement all the interfaces in CoWorkUserProvider.

@Bean
public CoWorkUserProvider currentUserProvider() {
    return new MyCustomUser();
}

I /src/main/java/com/aspose/gridjsdemo/filemanagement/MyCustomUser.java:

public class MyCustomUser implements CoWorkUserProvider {
    //Get the current login user name
    @Override
    public String getCurrentUserName() {
        return getCurrentUser().getUsername();
    }

    //Get the current login user Id
    @Override
    public Long getCurrentUserId() {
        return getCurrentUser().getUserId();
    }

    //Get the current login user permission
    @Override
    public CoWorkUserPermission getPermission() {
        return CoWorkUserPermission.EDITABLE;
    }

    private static CustomUserDetails getCurrentUser() {
        Authentication authentication = SecurityContextHolder.getContext().getAuthentication();
        if (authentication != null && authentication.getPrincipal() instanceof CustomUserDetails) {
            return (CustomUserDetails) authentication.getPrincipal();
        }
        throw new IllegalStateException("User not authenticated");
    }
}

3. WebSocket Configuration

The demo uses Spring WebSocket with STOMP.

Example config:

In /src/main/java/com/aspose/gridjsdemo/messages/WebSocketConfig.java:

public class WebSocketConfig implements WebSocketMessageBrokerConfigurer {
    @Override
    public void configureMessageBroker(MessageBrokerRegistry config) {
        config.enableSimpleBroker("/topic");
        config.setApplicationDestinationPrefixes("/app");
        config.setUserDestinationPrefix("/user");
    }

    @Override
    public void registerStompEndpoints(StompEndpointRegistry registry) {
        registry.addEndpoint("/ws")
                .setAllowedOrigins("http://localhost:8080")
                .withSockJS();
    }
}

GridJs förväntar sig att messageTopic matchar “/topic/opr” vilket är standard:

com.aspose.gridjs.Config.setMessageTopic("/topic/opr");

Eller:

@Bean
    public GridJsOptions gridJsOptions() {
	//.... other options
    	options.setMessageTopic("/topic/opr");
    	//.... other options
        return options;
    }

På klienten:

xs.setCollaborativeSetting('/GridJs2/msg','/ws','/app/opr','/user/queue','/topic/opr');

Här motsvarar /GridJs2/msg ruttvägen definierad i
src/main/java/com/aspose/gridjsdemo/filemanagement/controller/GridJsOprController.java:

@RequestMapping("/GridJs2/msg")

Exempel med anpassade WebSocket-vägar

Om din server använder en annan konfiguration:

public class WebSocketConfig implements WebSocketMessageBrokerConfigurer {
    @Override
    public void configureMessageBroker(MessageBrokerRegistry config) {
        config.enableSimpleBroker("/topic_gridjs");
        config.setApplicationDestinationPrefixes("/app_gridjs");
        config.setUserDestinationPrefix("/user_gridjs");
    }

    @Override
    public void registerStompEndpoints(StompEndpointRegistry registry) {
        registry.addEndpoint("/ws_gridjs")
                .setAllowedOrigins("http://localhost:8080")
                .withSockJS();
    }
}

Då måste du ställa in:

Server-sida:

com.aspose.gridjs.Config.setMessageTopic("/topic_gridjs/opr");

eller

    @Bean
    public GridJsOptions gridJsOptions() {
	//.... other option
    	options.setMessageTopic("/topic_gridjs/opr");
    	//.... other option
        return options;
    }

Klientsida:

xs.setCollaborativeSetting('/GridJs2/msg','/ws_gridjs','/app_gridjs/opr','/user_gridjs/queue','/topic_gridjs/opr');

detaljdokumentet för setCollaborativeSetting kan hittas här

⚠️ Obs: Som standard fungerar demo-konfigurationen direkt.
Extra konfiguration krävs endast om appen anpassar WebSocket-endpoints.

Kom ihåg: det kollektiva läget stödjer inte lazy loading.
Aktivera inte Config.setLazyLoading(true).

Additional Notes

  • We can add file uploads to load and edit spreadsheet file from upload directory.
  • Integrate with cloud storage like AWS S3 or Azure Blob.

Slutsats

Med Aspose.Cells.GridJs kan du snabbt bygga en kraftfull samarbetsvillig Excel-redigerare.
Kombinationen av Java-backend, GridJs-frontend, SQL-lagring och WebSocket-meddelanden säkerställer tillförlitlig realtidsredigering av kalkylblad.
