使用C++为交替行和列应用条件格式阴影
Contents
[
Hide
]
Aspose.Cells API提供了添加和操作 Worksheet 对象的条件格式规则的方法。这些规则可以以多种方式定制,以根据条件或规则获得所需的格式。本文将演示如何使用Aspose.Cells for C++ API,通过条件格式规则和Excel内置函数,为交替行列添加阴影。
本文使用Excel内置函数,如ROW、COLUMN和MOD。以下是这些函数的一些详细信息,以便更好地理解提供的代码片段。
- **ROW()**函数返回单元格引用的行号。如果省略引用参数,则假定引用是输入ROW函数的单元格地址。
- **COLUMN()**函数返回单元格引用的列号。如果省略引用参数,则假定引用是输入COLUMN函数的单元格地址。
- **MOD()**函数返回一个数字被除数除后的余数,函数的第一个参数是要查找余数的数值,第二个参数是用来除以数值参数的数。如果除数为0,则会返回#DIV/0!错误。
让我们开始编写一些代码,借助Aspose.Cells for C++ API实现此目标。
#include <iostream>
#include "Aspose.Cells.h"
using namespace Aspose::Cells;
int main()
{
Aspose::Cells::Startup();
// Source directory path
U16String srcDir(u"..\\Data\\01_SourceDirectory\\");
// Output directory path
U16String outDir(u"..\\Data\\02_OutputDirectory\\");
// Create an instance of Workbook
Workbook book;
// Access the Worksheet on which desired rule has to be applied
Worksheet sheet = book.GetWorksheets().Get(0);
// Add FormatConditions to the instance of Worksheet
int idx = sheet.GetConditionalFormattings().Add();
// Access the newly added FormatConditions via its index
auto conditionCollection = sheet.GetConditionalFormattings().Get(idx);
// Define a CellsArea on which conditional formatting will be applicable
// The code creates a CellArea ranging from A1 to I20
CellArea area = CellArea::CreateCellArea(u"A1", u"I20");
// Add area to the instance of FormatConditions
conditionCollection.AddArea(area);
// Add a condition to the instance of FormatConditions
// For this case, the condition type is expression, which is based on some formula
idx = conditionCollection.AddCondition(FormatConditionType::Expression);
// Access the newly added FormatCondition via its index
FormatCondition formatCondition = conditionCollection.Get(idx);
// Set the formula for the FormatCondition
// Formula uses the Excel's built-in functions as discussed earlier in this article
formatCondition.SetFormula1(u"=MOD(ROW(),2)=0");
// Set the background color and pattern for the FormatCondition's Style
formatCondition.GetStyle().SetBackgroundColor(Color::Blue());
formatCondition.GetStyle().SetPattern(BackgroundType::Solid);
// Save the result on disk
book.Save(outDir + u"output_out.xlsx");
std::cout << "Conditional formatting applied successfully!" << std::endl;
Aspose::Cells::Cleanup();
}

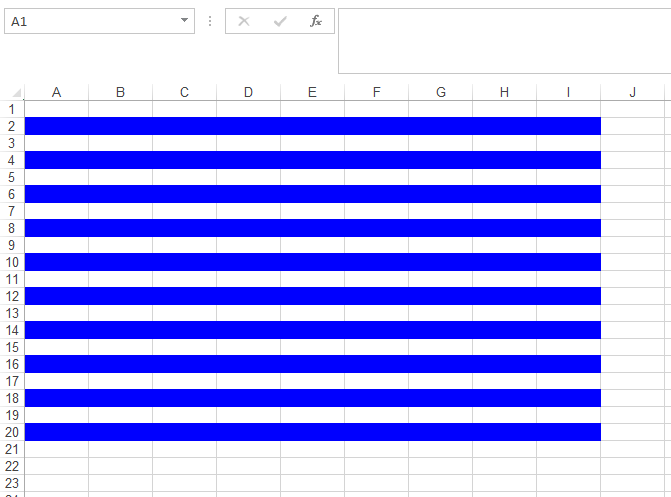

以下快照显示了加载到Excel应用程序中的结果电子表格。
![]() |
---|

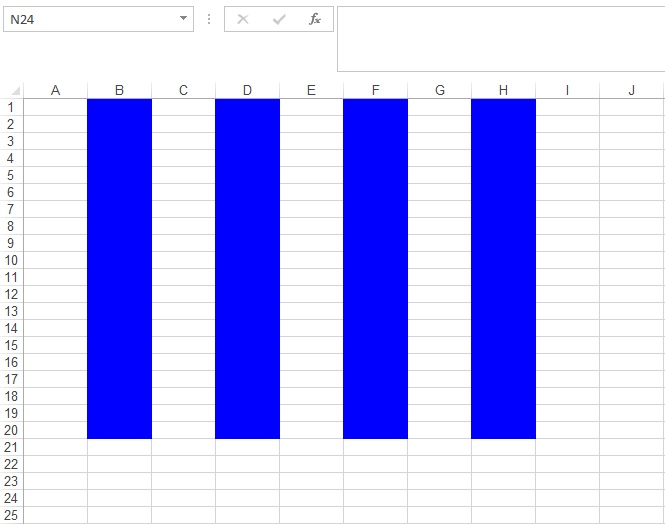

为了将底纹应用于交替列,您只需将公式**=MOD(ROW(),2)=0**更改为**=MOD(COLUMN(),2)=0**,即不再获取行索引,而是修改公式以检索列索引。 在这种情况下,生成的电子表格将如下所示。
![]() |
---|
