用C++从工作簿中提取OLE对象

从工作簿中提取OLE对象

创建模板工作簿

  1. 在Microsoft Excel中创建一个工作簿。
  2. 在第一个工作表上添加Microsoft Word文档、Excel工作簿和PDF文档作为OLE对象。

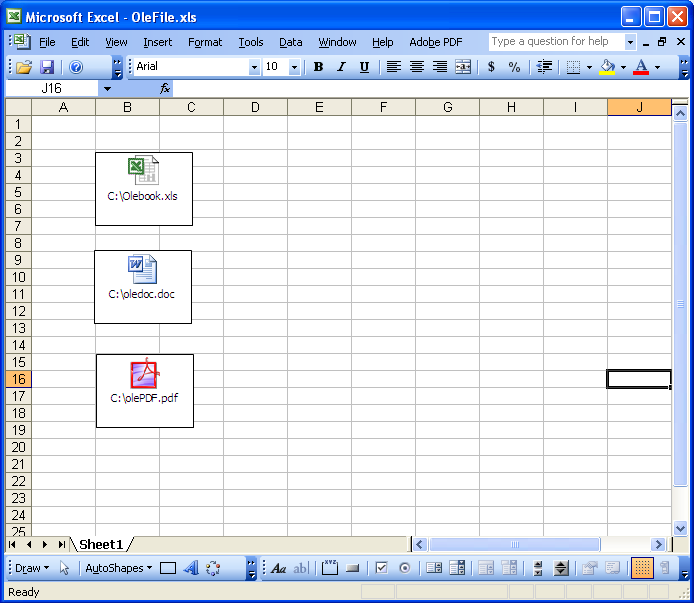

带有OLE对象的模板文档(OleFile.xls)
todo:image_alt_text

接下来,提取OLE对象并保存到硬盘,保留其各自的文件类型。

下载并安装Aspose.Cells

  1. 下载Aspose.Cells for C++
  2. 在您的开发计算机上安装它。

所有Aspose组件在安装后都处于评估模式。评估模式没有时间限制,只会在生成的文档中插入水印。

创建一个项目

启动Visual Studio并创建一个新的控制台应用程序。此示例将展示一个C++控制台应用程序。

  1. 添加引用
    1. 向你的项目中添加对Aspose.Cells组件的引用,例如,添加对…\Program Files\Aspose\Aspose.Cells\Bin\Net1.0\Aspose.Cells.dll的引用。

从工作簿中提取OLE对象

以下代码实际完成了查找和提取OLE对象的工作。OLE对象(DOC、XLS和PDF文件)会被保存到硬盘。

#include <iostream>
#include <fstream>
#include <memory>
#include <string>
#include "Aspose.Cells.h"

using namespace Aspose::Cells;
using namespace Aspose::Cells::Drawing;

int main()
{
    Aspose::Cells::Startup();

    // Source directory path
    U16String srcDir(u"..\\Data\\01_SourceDirectory\\");

    // Open the template file
    Workbook workbook(srcDir + u"oleFile.xlsx");

    // Get the OleObject Collection in the first worksheet
    OleObjectCollection oles = workbook.GetWorksheets().Get(0).GetOleObjects();

    // Loop through all the oleobjects and extract each object in the worksheet
    for (int i = 0; i < oles.GetCount(); i++)
    {
        OleObject ole = oles.Get(i);

        // Specify the output filename
        U16String fileName = srcDir + u"outOle" + U16String(std::to_string(i).c_str()) + u".";

        // Specify each file format based on the oleobject format type
        switch (ole.GetFileFormatType())
        {
            case FileFormatType::Doc:
                fileName += u"doc";
                break;
            case FileFormatType::Excel97To2003:
                fileName += u"Xlsx";
                break;
            case FileFormatType::Ppt:
                fileName += u"Ppt";
                break;
            case FileFormatType::Pdf:
                fileName += u"Pdf";
                break;
            case FileFormatType::Unknown:
                fileName += u"Jpg";
                break;
            default:
                // Handle other formats if needed
                break;
        }

        // Save the oleobject as a new excel file if the object type is xls
        if (ole.GetFileFormatType() == FileFormatType::Xlsx)
        {
            Vector<uint8_t> objectData = ole.GetObjectData();
            if (objectData.GetLength() > 0)
            {
                Workbook oleBook(objectData);
                oleBook.GetSettings().SetIsHidden(false);
                oleBook.Save(srcDir + u"outOle" + U16String(std::to_string(i).c_str()) + u".out.xlsx");
            }
        }
        // Create the files based on the oleobject format types
        else
        {
            Vector<uint8_t> objectData = ole.GetObjectData();
            if (objectData.GetLength() > 0)
            {
                std::ofstream fs(fileName.ToUtf8().c_str(), std::ios::binary);
                fs.write(reinterpret_cast<const char*>(objectData.GetData()), objectData.GetLength());
                fs.close();
            }
        }
    }

    Aspose::Cells::Cleanup();
    return 0;
}
