使用 C++ 加载工作簿或工作表时过滤对象

可能的使用场景

请在过滤工作簿中的数据时使用 LoadOptions.GetLoadFilter() 属性。如果要从单个工作表过滤数据,则必须重写 LoadFilter.StartSheet 方法。在创建或使用 LoadFilter 时,请提供来自 LoadDataFilterOptions 枚举的适当值。

LoadDataFilterOptions 枚举具有以下可能的值。

  • 所有
  • 文档设置
  • 单元格空白
  • 单元格布尔
  • 单元格数据
  • 单元格错误
  • 单元格数值
  • 单元格字符串
  • 单元格值
  • Chart
  • 条件格式
  • 数据验证
  • 定义名称
  • 文档属性
  • 公式
  • 超链接
  • 合并区域
  • 数据透视表
  • 设置
  • 形状
  • 表单数据
  • 表格设置
  • 结构
  • 样式
  • VBA
  • Xml映射

加载工作簿时过滤对象

以下示例代码说明了如何从工作簿中筛选图表。请查看此代码中使用的示例excel文件和由此生成的输出PDF。从输出PDF中可以看出,所有图表都已从工作簿中筛选出。

#include <iostream>
#include "Aspose.Cells.h"
using namespace Aspose::Cells;

int main()
{
    Aspose::Cells::Startup();

    // Source directory path
    U16String srcDir(u"..\\Data\\01_SourceDirectory\\");

    // Output directory path
    U16String outDir(u"..\\Data\\02_OutputDirectory\\");

    // Filter charts from the workbook
    LoadOptions lOptions;
    lOptions.SetLoadFilter(new LoadFilter(LoadDataFilterOptions::All & ~LoadDataFilterOptions::Chart));

    // Load the workbook with the above filter
    U16String inputFilePath = srcDir + u"sampleFilterCharts.xlsx";
    Workbook workbook(inputFilePath, lOptions);

    // Save worksheet to a single PDF page
    PdfSaveOptions pOptions;
    pOptions.SetOnePagePerSheet(true);

    // Save the workbook in PDF format
    U16String outputFilePath = outDir + u"sampleFilterCharts.pdf";
    workbook.Save(outputFilePath, pOptions);

    std::cout << "Workbook saved successfully with filtered charts!" << std::endl;

    Aspose::Cells::Cleanup();
}

加载工作表时过滤对象

以下示例代码加载了源excel文件,并使用自定义过滤器从其工作表中筛选以下数据。

  • 它会从名为NoCharts的工作表中筛选图表。
  • 它会从名为NoShapes的工作表中筛选形状。
  • 它会从名为NoConditionalFormatting的工作表中筛选条件格式。

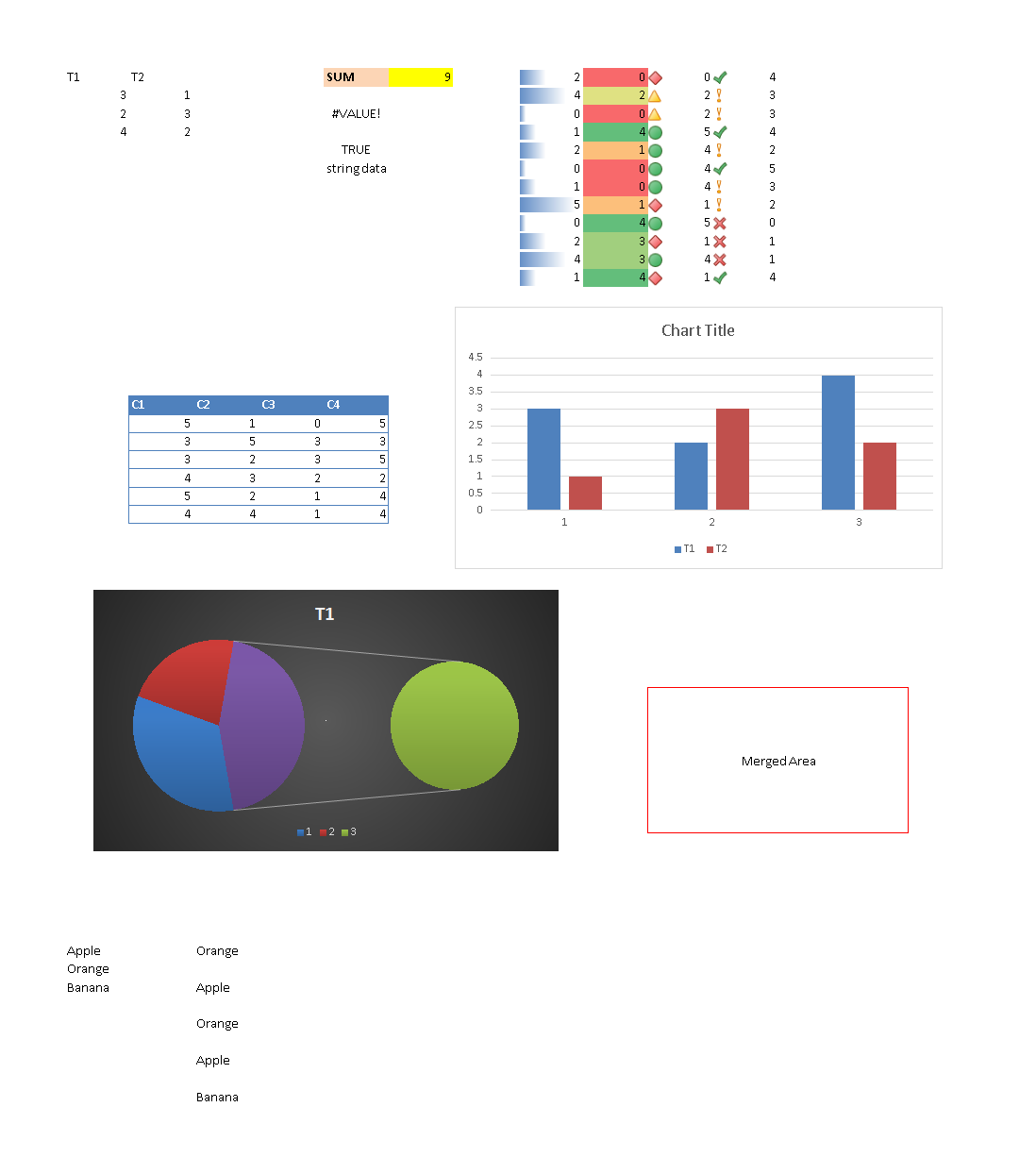

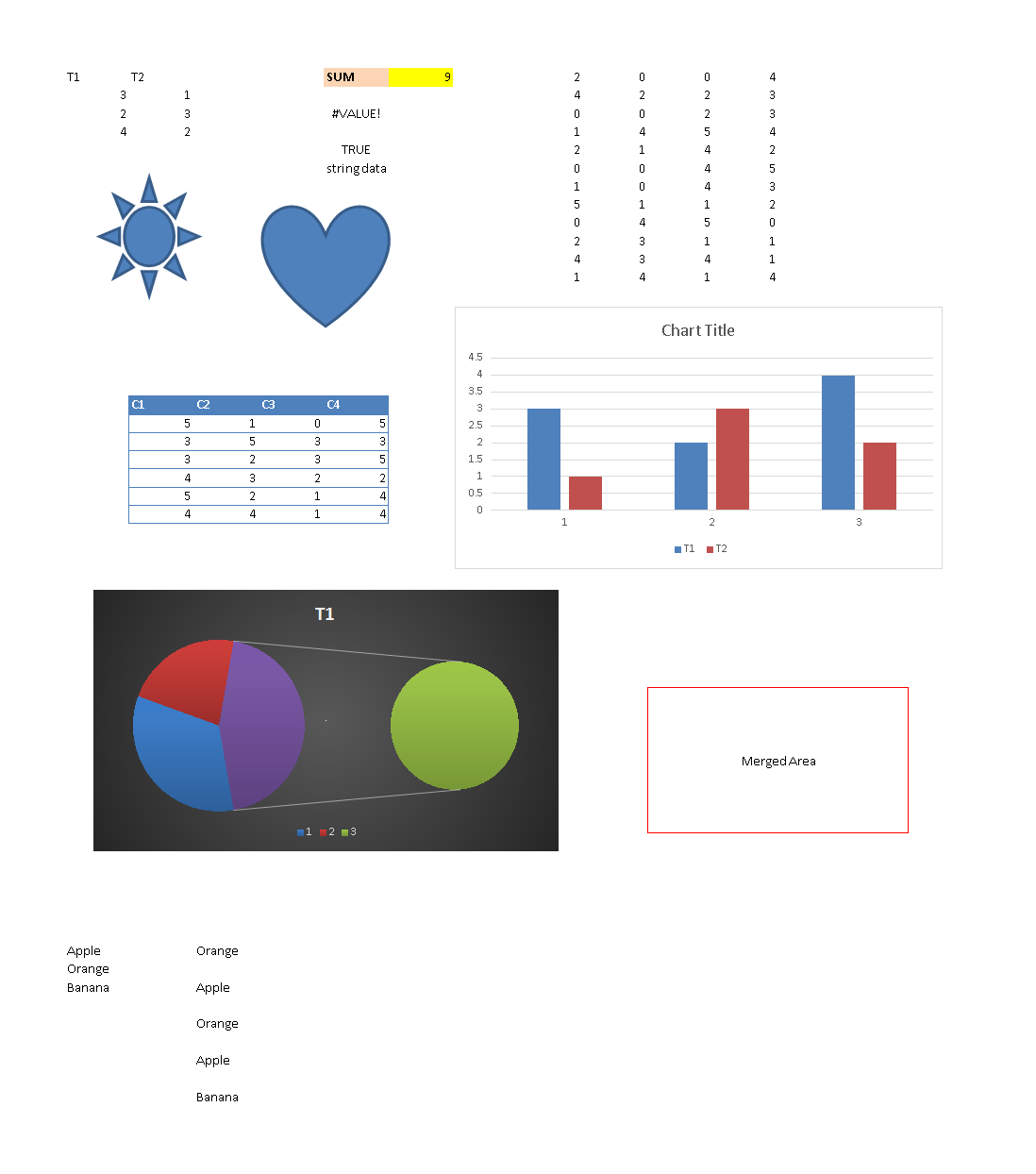

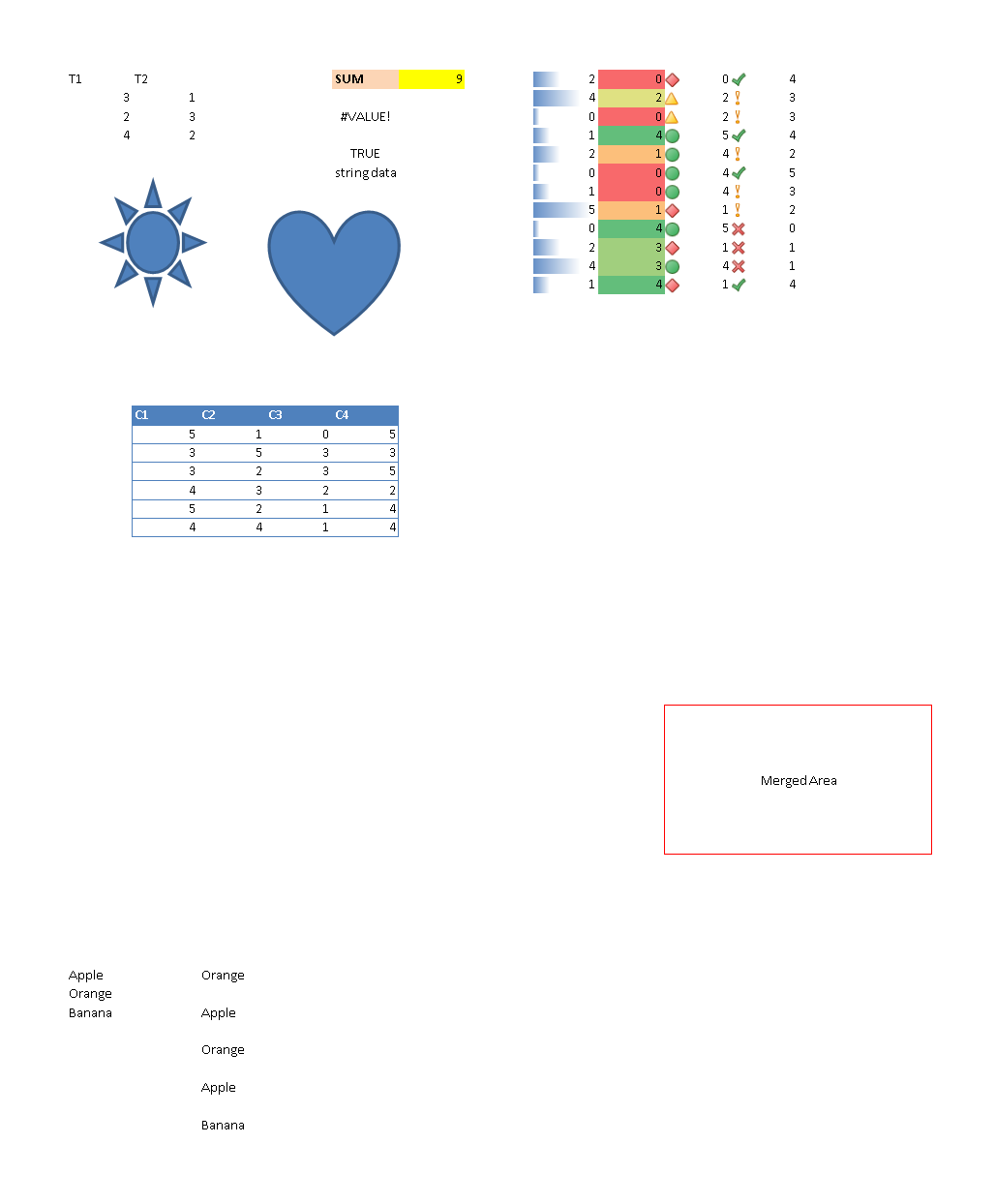

一旦使用自定义过滤器加载了源excel文件,它会逐个工作表地获取所有工作表的图像。以下是用于参考的输出图像。可以看出,第一张图像没有图表,第二张图像没有形状,第三张图像没有条件格式。

#include "Aspose.Cells.h"
using namespace Aspose::Cells;

class CustomLoadFilter : public LoadFilter
{
public:
    void StartSheet(Worksheet& sheet) override
    {
        U16String sheetName = sheet.GetName();

        if (sheetName == u"NoCharts")
        {
            // Load everything and filter charts
            SetLoadDataFilterOptions(static_cast<LoadDataFilterOptions>(static_cast<int>(LoadDataFilterOptions::All) & ~static_cast<int>(LoadDataFilterOptions::Chart)));
        }

        if (sheetName == u"NoShapes")
        {
            // Load everything and filter shapes
            SetLoadDataFilterOptions(static_cast<LoadDataFilterOptions>(static_cast<int>(LoadDataFilterOptions::All) & ~static_cast<int>(LoadDataFilterOptions::Drawing)));
        }

        if (sheetName == u"NoConditionalFormatting")
        {
            // Load everything and filter conditional formatting
            SetLoadDataFilterOptions(static_cast<LoadDataFilterOptions>(static_cast<int>(LoadDataFilterOptions::All) & ~static_cast<int>(LoadDataFilterOptions::ConditionalFormatting)));
        }
    }
};

// Add main function to serve as entry point
int main() {
    Aspose::Cells::Startup();
    Aspose::Cells::Cleanup();
    return 0;

}

这是如何根据工作表名称使用CustomLoadFilter类。

#include <iostream>
#include "Aspose.Cells.h"
using namespace Aspose::Cells;

class CustomLoadFilter : public LoadFilter
{
public:
    CustomLoadFilter() : LoadFilter(LoadDataFilterOptions::All) {}
};

int main()
{
    Aspose::Cells::Startup();

    // Source directory
    U16String srcDir(u"..\\Data\\01_SourceDirectory\\");

    // Output directory
    U16String outDir(u"..\\Data\\02_OutputDirectory\\");

    // Filter worksheets using CustomLoadFilter class
    LoadOptions loadOpts;
    CustomLoadFilter customLoadFilter;
    loadOpts.SetLoadFilter(&customLoadFilter);

    // Load the workbook with filter defined in CustomLoadFilter class
    Workbook workbook(srcDir + u"sampleCustomFilteringPerWorksheet.xlsx", loadOpts);

    // Take the image of all worksheets one by one
    WorksheetCollection sheets = workbook.GetWorksheets();
    for (int i = 0; i < sheets.GetCount(); i++)
    {
        // Access worksheet at index i
        Worksheet worksheet = sheets.Get(i);

        // Create an instance of ImageOrPrintOptions
        // Render entire worksheet to image
        ImageOrPrintOptions imageOpts;
        imageOpts.SetOnePagePerSheet(true);
        imageOpts.SetImageType(Aspose::Cells::Drawing::ImageType::Png);

        // Convert worksheet to image
        SheetRender render(worksheet, imageOpts);
        render.ToImage(0, outDir + u"outputCustomFilteringPerWorksheet_" + worksheet.GetName() + u".png");
    }

    Aspose::Cells::Cleanup();
    return 0;
}
