用C++向Excel插入背景图片
Contents
[
Hide
]
通过添加图片作为工作表背景,你可以使工作表更具吸引力。如果你有一个特殊的公司图形,它可以在不遮挡工作表数据的情况下为背景增添一丝色彩。你可以使用Aspose.Cells API设置工作表的背景图片。
在Microsoft Excel中设置工作表背景
在Microsoft Excel(例如Microsoft Excel 2019)中设置工作表的背景图片:
-

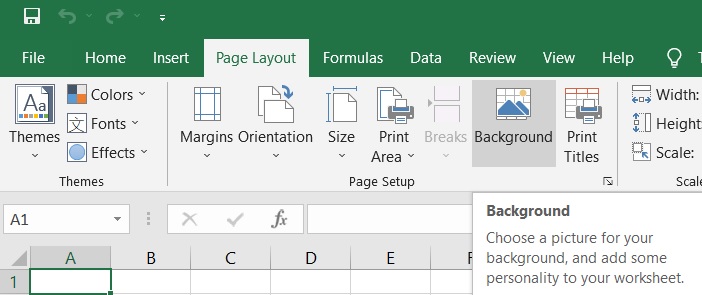

从页面布局菜单中找到页面设置选项,然后点击背景选项。
-
选择一张图片来设置工作表的背景图片。
设置工作表背景
使用Aspose.Cells设置工作表背景
下面的代码使用从流中读取的图像设置了一个背景图像。
#include <iostream>
#include <fstream>
#include "Aspose.Cells.h"
using namespace Aspose::Cells;
Vector<uint8_t> GetDataFromFile(const U16String& file)
{
std::string f = file.ToUtf8();
// open a file
std::ifstream fileStream(f, std::ios::binary);
if (!fileStream.is_open()) {
std::cerr << "Failed to open the file." << std::endl;
return 1;
}
// Get file size
fileStream.seekg(0, std::ios::end);
std::streampos fileSize = fileStream.tellg();
fileStream.seekg(0, std::ios::beg);
// Read file contents into uint8_t array
uint8_t* buffer = new uint8_t[fileSize];
fileStream.read(reinterpret_cast<char*>(buffer), fileSize);
fileStream.close();
Vector<uint8_t>data(buffer, fileSize);
delete[] buffer;
return data;
}
using namespace Aspose::Cells;
int main()
{
Aspose::Cells::Startup();
// Create a new Workbook
Workbook workbook;
// Get the first worksheet
Worksheet sheet = workbook.GetWorksheets().Get(0);
Vector<uint8_t> buffer = GetDataFromFile(U16String(u"background.jpg"));
// Set the background image for the worksheet
sheet.SetBackgroundImage(buffer);
// Save the Excel file
workbook.Save(u"outputBackImageSheet.xlsx");
// Save the HTML file
workbook.Save(u"outputBackImageSheet.html", SaveFormat::Html);
std::cout << "Files saved successfully." << std::endl;
Aspose::Cells::Cleanup();
return 0;
}
