使用 C++ 保护工作表
保护工作表
介绍
Microsoft Excel中的常规保护选项包括:
- 内容
- 对象
- 方案
受保护的工作表不会隐藏或保护敏感数据,因此它与文件加密不同。通常,工作表保护适用于展示目的。它防止最终用户修改工作表中的数据、内容和格式。
保护工作表
Aspose.Cells提供了Workbook类,表示Microsoft Excel文件。Workbook类包含Worksheets集合,允许访问Excel文件中的每个工作表。工作表由Worksheet类表示。
Worksheet类提供Protect方法,用于在工作表上应用保护。Protect方法接受以下参数:
- 保护类型,工作表上应用的保护类型。 保护类型是用 ProtectionType 枚举帮助应用的。
- 新密码,用于保护工作表的新密码。
- 旧密码,如果工作表已经受到密码保护,则传入旧密码。如果工作表尚未受到保护,则传递 null。
ProtectionType枚举包含以下预定义的保护类型:
保护类型 | 描述 |
---|---|
All | 用户无法修改工作表中的任何内容 |
Contents | 用户无法在工作表中输入数据 |
Objects | 用户无法修改绘图对象 |
Scenarios | 用户无法修改已保存的情景 |
Structure | 用户无法修改结构 |
Windows | 保护应用于窗口 |
None | 不应用任何保护 |
下例显示如何使用密码保护工作表。
#include <iostream>
#include "Aspose.Cells.h"
using namespace Aspose::Cells;
int main()
{
Aspose::Cells::Startup();
// Source directory path
U16String srcDir(u"..\\Data\\01_SourceDirectory\\");
// Output directory path
U16String outDir(u"..\\Data\\02_OutputDirectory\\");
// Path of input Excel file
U16String inputFilePath = srcDir + u"book1.xls";
// Path of output Excel file
U16String outputFilePath = outDir + u"output.out.xls";
// Create workbook from the input file
Workbook excel(inputFilePath);
// Accessing the first worksheet in the Excel file
Worksheet worksheet = excel.GetWorksheets().Get(0);
// Protecting the worksheet with a password
worksheet.Protect(ProtectionType::All, u"aspose", nullptr);
// Saving the modified Excel file in default format
excel.Save(outputFilePath, SaveFormat::Excel97To2003);
std::cout << "Worksheet protected and file saved successfully!" << std::endl;
Aspose::Cells::Cleanup();
}

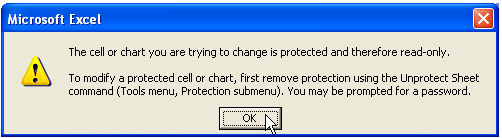

使用上述代码保护工作表后,打开工作表即可检查工作表的保护。一旦打开文件并尝试向工作表添加一些数据,您将会看到以下对话框:
警告对话框,提示用户无法修改工作表 |
---|
![]() |
要在工作表上操作,请选择 保护,然后在 工具 菜单项中选择 取消保护工作表。
选择取消保护工作表菜单项后,将会打开一个对话框,提示您输入密码,以便您可以在工作表上进行操作,如下所示:
||
使用Microsoft Excel保护工作表的部分单元格
可能会有某些场景需要仅锁定工作表中的一些单元格。如果要锁定工作表中的特定单元格,必须解锁工作表中的所有其他单元格。工作表中的所有单元格已初始化为锁定,您可以在 Microsoft Excel 中打开任何 Excel 文件并单击 格式 | 单元格 来显示 单元格格式 对话框,然后单击 保护 选项卡,查看一个复选框标记为“已锁定”默认为选中状态。
以下描述如何使用 MS Excel 锁定一些单元格。此方法适用于 Microsoft Office Excel 97、2000、2002、2003 及更高版本。
- 点击全选按钮(位于行号1上方和列号A左侧的灰色矩形)来选择整个工作表。
- 在格式菜单上点击单元格,点击保护选项卡,然后取消锁定复选框。 这将解锁工作表上的所有单元格。 如果单元格命令不可用,工作表的部分可能已被锁定。在工具菜单上,指向保护,然后点击取消保护工作表。
- 仅选择您想要锁定的单元格,然后重复第2步,但这次选择锁定复选框。
- 在工具菜单上,指向保护,点击保护工作表,然后点击确定。
- 在保护工作表对话框中,您可以选择指定密码并选择要允许用户更改的元素。
使用Aspose Cells在工作表中保护一些单元格
在这种方法中,我们只使用Aspose.Cells API来执行此任务。
示例:以下示例展示了如何在工作表中保护一些单元格。首先解锁工作表中的所有单元格,然后锁定其中的3个单元格(A1、B1、C1)。最后,保护工作表。Style 对象包含一个布尔属性,IsLocked。您可以将 IsLocked属性设置为true或false,并应用*Column/Row.ApplyStyle()*方法来锁定或解锁带有所需属性的行/列。
#include <iostream>
#include "Aspose.Cells.h"
using namespace Aspose::Cells;
int main()
{
Aspose::Cells::Startup();
U16String outDir(u"../Data/02_OutputDirectory/");
Workbook wb;
Worksheet sheet = wb.GetWorksheets().Get(0);
for(int i = 0; i <= 255; ++i)
{
Style style = sheet.GetCells().GetColumns().Get(i).GetStyle();
style.SetIsLocked(false);
StyleFlag flag;
flag.SetLocked(true);
sheet.GetCells().ApplyColumnStyle(i, style, flag);
}
auto lockCell = [&](const U16String& cellRef)
{
Style style = sheet.GetCells().Get(cellRef).GetStyle();
style.SetIsLocked(true);
sheet.GetCells().Get(cellRef).SetStyle(style);
};
lockCell(u"A1");
lockCell(u"B1");
lockCell(u"C1");
sheet.Protect(ProtectionType::All);
U16String outputPath = outDir + u"output.out.xls";
wb.Save(outputPath, SaveFormat::Excel97To2003);
std::cout << "Protected workbook created successfully." << std::endl;
Aspose::Cells::Cleanup();
return 0;
}
在工作表中保护一行
Aspose.Cells允许您轻松锁定工作表中的任何行。在这里,我们可以利用Row类的ApplyStyle()方法来对工作表中的特定行应用Style。该方法接受两个参数:Style对象和包含所有与应用格式相关的成员的StyleFlag对象。
下面的示例展示了如何在工作表中保护一行。首先解锁工作表中的所有单元格,然后锁定其中的第一行。最后,保护工作表。Style对象包含一个布尔属性,IsLocked。您可以将IsLocked属性设置为true或false,以使用StyleFlag对象锁定或解锁行/列。
#include <iostream>
#include "Aspose.Cells.h"
using namespace Aspose::Cells;
int main()
{
Aspose::Cells::Startup();
U16String outDir(u"..\\Data\\02_OutputDirectory\\");
Workbook wb;
Worksheet sheet = wb.GetWorksheets().Get(0);
for (int i = 0; i <= 255; i++)
{
Column column = sheet.GetCells().GetColumns().Get(i);
Style style = column.GetStyle();
style.SetIsLocked(false);
StyleFlag flag;
flag.SetLocked(true);
column.ApplyStyle(style, flag);
}
Row firstRow = sheet.GetCells().GetRows().Get(0);
Style rowStyle = firstRow.GetStyle();
rowStyle.SetIsLocked(true);
StyleFlag rowFlag;
rowFlag.SetLocked(true);
sheet.GetCells().ApplyRowStyle(0, rowStyle, rowFlag);
sheet.Protect(ProtectionType::All);
wb.Save(outDir + u"output.out.xls", SaveFormat::Excel97To2003);
std::cout << "File saved successfully!" << std::endl;
Aspose::Cells::Cleanup();
}
在工作表中保护一列
Aspose.Cells允许您轻松锁定工作表中的任何列。在这里,我们可以利用Column类的ApplyStyle()方法来对工作表中的特定列应用Style。该方法接受两个参数:Style对象和包含所有与应用格式相关的成员的StyleFlag对象。
下面的示例展示了如何在工作表中保护一列。首先解锁工作表中的所有单元格,然后锁定其中的第一列。最后,保护工作表。Style对象包含一个布尔属性,IsLocked。您可以将IsLocked属性设置为true或false,以使用StyleFlag对象锁定或解锁行/列。
#include <iostream>
#include "Aspose.Cells.h"
using namespace Aspose::Cells;
int main()
{
Aspose::Cells::Startup();
U16String srcDir(u"..\\Data\\01_SourceDirectory\\");
U16String outDir(u"..\\Data\\02_OutputDirectory\\");
Workbook wb;
Worksheet sheet = wb.GetWorksheets().Get(0);
for (int i = 0; i <= 255; i++)
{
Style style = sheet.GetCells().GetColumns().Get((uint8_t)i).GetStyle();
style.SetIsLocked(false);
StyleFlag flag;
flag.SetLocked(true);
sheet.GetCells().GetColumns().Get((uint8_t)i).ApplyStyle(style, flag);
}
Style style = sheet.GetCells().GetColumns().Get(0).GetStyle();
style.SetIsLocked(true);
StyleFlag flag;
flag.SetLocked(true);
sheet.GetCells().GetColumns().Get(0).ApplyStyle(style, flag);
sheet.Protect(ProtectionType::All);
wb.Save(outDir + u"output.out.xls", SaveFormat::Excel97To2003);
std::cout << "File saved successfully!" << std::endl;
Aspose::Cells::Cleanup();
}
允许用户编辑范围
下面的示例展示了如何允许用户在受保护的工作表中编辑范围。
#include <iostream>
#include "Aspose.Cells.h"
using namespace Aspose::Cells;
int main()
{
Aspose::Cells::Startup();
// Source directory path
U16String srcDir(u"..\\Data\\01_SourceDirectory\\");
// Output directory path
U16String outDir(u"..\\Data\\02_OutputDirectory\\");
// Instantiate a new Workbook
Workbook book;
// Get the first (default) worksheet
Worksheet sheet = book.GetWorksheets().Get(0);
// Get the Allow Edit Ranges
ProtectedRangeCollection allowRanges = sheet.GetAllowEditRanges();
// Create the range and get the ProtectedRange
int idx = allowRanges.Add(u"r2", 1, 1, 3, 3);
ProtectedRange protectedRange = allowRanges.Get(idx);
// Specify the password
protectedRange.SetPassword(u"123");
// Protect the sheet
sheet.Protect(ProtectionType::All);
// Save the Excel file
book.Save(outDir + u"protectedrange.out.xls");
std::cout << "Protected range created successfully!" << std::endl;
Aspose::Cells::Cleanup();
}
