用C++读取形状发光效果的颜色

可能的使用场景

如果您想要阅读任何形状的发光效果的颜色,请使用Shape.Glow.Color属性。这将帮助您找到与形状的发光效果的颜色相关的各种属性。

读取形状发光效果的颜色

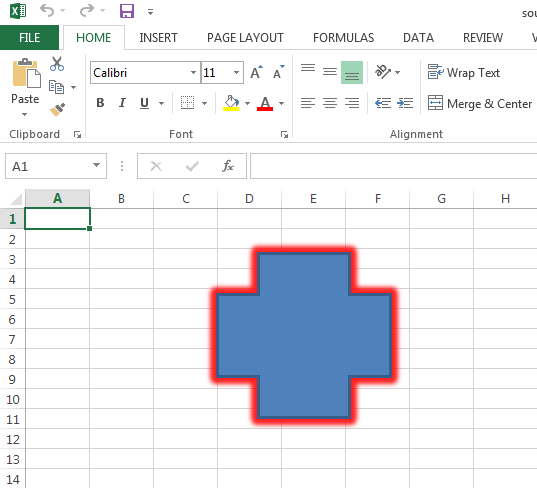

请查看以下示例代码及其源Excel文件和控制台输出,供您参考。以下屏幕截图显示了在Microsoft Excel中查看源Excel文件时形状的发光效果。

todo:image_alt_text

用C++读取形状发光效果颜色的代码

#include <iostream>
#include "Aspose.Cells.h"

using namespace Aspose::Cells;
using namespace Aspose::Cells::Drawing;

int main()
{
    Aspose::Cells::Startup();

    U16String srcDir(u"..\\Data\\01_SourceDirectory\\");
    Workbook book(srcDir + u"sourceGlowEffectColor.xlsx");
    Worksheet sheet = book.GetWorksheets().Get(0);
    Shape shape = sheet.GetShapes().Get(0);
    GlowEffect effect = shape.GetGlow();
    CellsColor color = effect.GetColor();

    Color clr = color.GetColor();
    uint32_t argb = (static_cast<uint32_t>(clr.a) << 24) |
                    (static_cast<uint32_t>(clr.r) << 16) |
                    (static_cast<uint32_t>(clr.g) << 8) |
                    static_cast<uint32_t>(clr.b);

    std::cout << "Color: " << argb << std::endl;
    std::cout << "ColorIndex: " << color.GetColorIndex() << std::endl;
    std::cout << "IsShapeColor: " << color.IsShapeColor() << std::endl;
    std::cout << "Transparency: " << color.GetTransparency() << std::endl;
    std::cout << "Type: " << static_cast<int>(color.GetType()) << std::endl;

    Aspose::Cells::Cleanup();
}

控制台输出

以下是在提供的源Excel文件上执行上述示例代码时的控制台输出。

Color: Color [A=222, R=255, G=0, B=0]

ColorIndex: 16711672

IsShapeColor: True

Transparency: 0.13

Type: RGB
