用Node.js通过C++确定Shape是否为智能艺术形状

可能的使用场景

智能艺术形状是Microsoft Excel中的特殊形状，允许你自动创建复杂的图表。你可以使用Shape.isSmartArt()属性判断形状是智能艺术形状还是普通形状。

确定形状是否为智能图形

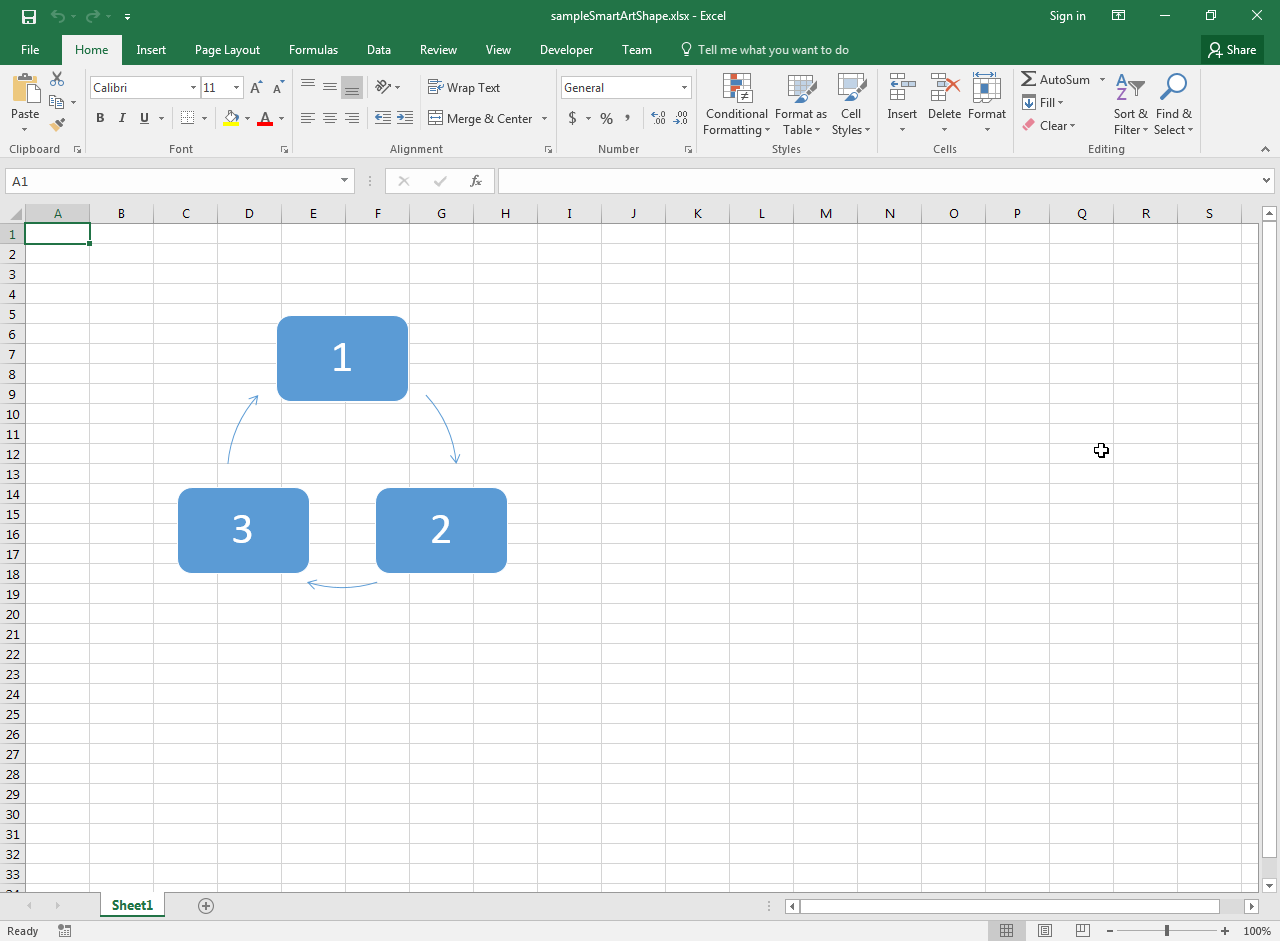

以下示例代码加载包含智能艺术形状的示例Excel文件，如截图所示。然后它打印第一个形状的Shape.isSmartArt()属性值，请查看示例代码控制台输出。

示例代码

const path = require("path");
const AsposeCells = require("aspose.cells.node");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "sampleSmartArtShape.xlsx");

// Load the sample smart art shape - Excel file
const workbook = new AsposeCells.Workbook(filePath);

// Access first worksheet
const worksheet = workbook.getWorksheets().get(0);

// Access first shape
const shape = worksheet.getShapes().get(0);

// Determine if shape is smart art
console.log("Is Smart Art Shape: " + shape.isSmartArt());

控制台输出



Is Smart Art Shape: True
