通过C++和Node.js从工作簿中提取OLE对象

从工作簿中提取OLE对象

创建模板工作簿

  1. 在Microsoft Excel中创建一个工作簿。
  2. 在第一个工作表上添加Microsoft Word文档、Excel工作簿和PDF文档作为OLE对象。

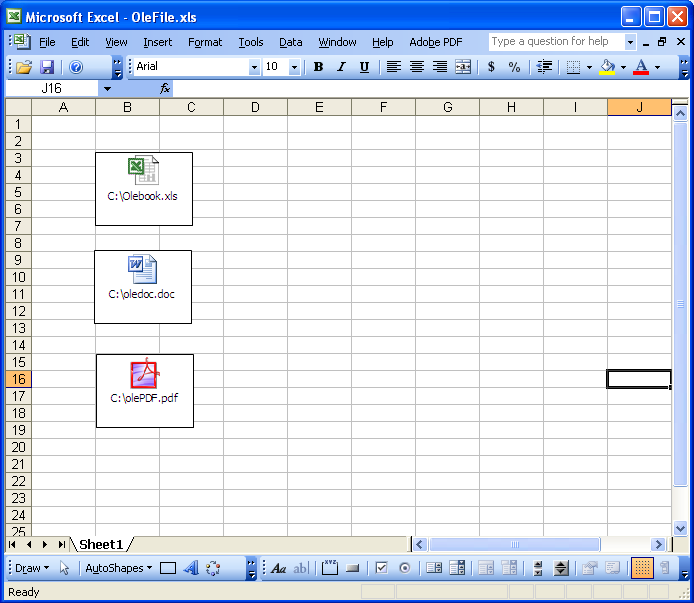

带有OLE对象的模板文档(OleFile.xls)
todo:image_alt_text

接下来,提取OLE对象并保存到硬盘,保留其各自的文件类型。

下载并安装Aspose.Cells

下载Aspose.Cells for Node.js via C++

  1. 在您的开发计算机上安装它。

所有Aspose组件在安装后都处于评估模式。评估模式没有时间限制,只会在生成的文档中插入水印。

创建一个项目

启动Node.js并创建一个新的控制台应用程序。本示例将演示一个Node.js控制台应用程序,但你也可以使用任何兼容JavaScript的环境。

  1. 添加依赖项
    1. 在你的项目中添加Aspose.Cells组件的引用,例如使用require函数引入包:
    const { Cells } = require("aspose.cells");


从工作簿中提取OLE对象

以下代码实际完成了查找和提取OLE对象的工作。OLE对象(DOC、XLS和PDF文件)会被保存到硬盘。

const fs = require("fs");
const path = require("path");
const AsposeCells = require("aspose.cells.node");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");

// Open the template file.
const workbook = new AsposeCells.Workbook(path.join(dataDir, "oleFile.xlsx"));

// Get the OleObject Collection in the first worksheet.
const oles = workbook.getWorksheets().get(0).getOleObjects();

// Loop through all the oleobjects and extract each object in the worksheet.
for (let i = 0; i < oles.getCount(); i++) {
const ole = oles.get(i);
// Specify the output filename.
let fileName = path.join(dataDir, "outOle" + i + ".");
// Specify each file format based on the oleobject format type.
switch (ole.getFileFormatType()) {
case AsposeCells.FileFormatType.Doc:
fileName += "doc";
break;
case AsposeCells.FileFormatType.Excel97To2003:
fileName += "Xlsx";
break;
case AsposeCells.FileFormatType.Ppt:
fileName += "Ppt";
break;
case AsposeCells.FileFormatType.Pdf:
fileName += "Pdf";
break;
case AsposeCells.FileFormatType.Unknown:
fileName += "Jpg";
break;
default:
//........
break;
}
// Save the oleobject as a new excel file if the object type is xls.
if (ole.getFileFormatType() === AsposeCells.FileFormatType.Xlsx) {
const ms = Buffer.from(ole.getObjectData());
if (ole.getObjectData() != null) {
const oleBook = new AsposeCells.Workbook(ms);
oleBook.getSettings().setIsHidden(false);
oleBook.save(path.join(dataDir, "outOle" + i + ".out.xlsx"));
}
} else {
if (ole.getObjectData() != null) {
fs.writeFileSync(fileName, ole.getObjectData());
}
}
}
