通过Node.js通过C++插入Excel文件的图片和形状

Excel中的形状主要分为以下几类:

  • 图片
  • Ole对象
  • 线条
  • 矩形
  • 基本形状
  • 方块箭头
  • 方程式形状
  • 流程图
  • 星星和横幅
  • 标注

本指南将从每个类别中选择一两个形状作为示例。通过这些例子,你将学习如何使用Aspose.Cells将指定形状插入到工作表中。

使用Node.js在Excel工作表中添加图片

向电子表格中添加图片非常简单。只需几行代码:
只需调用PictureCollection.add(number, number, number, number, Uint8Array)方法(封装在Pictures对象中)即可。PictureCollection.add(number, number, number, number, Uint8Array)方法接受以下参数:

  • 左上角行索引,左上角行的索引。
  • 左上角列索引,左上角列的索引。
  • 图像文件名,图像文件的名称,包括完整路径。
const path = require("path");
const AsposeCells = require("aspose.cells.node");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");

// Instantiating a Workbook object
const workbook = new AsposeCells.Workbook();

// Adding a new worksheet to the Workbook object
const sheetIndex = workbook.getWorksheets().add();

// Obtaining the reference of the newly added worksheet by passing its sheet index
const worksheet = workbook.getWorksheets().get(sheetIndex);

// Adding a picture at the location of a cell whose row and column indices
// Are 5 in the worksheet. It is "F6" cell
worksheet.getPictures().add(5, 5, path.join(dataDir, "logo.jpg"));

// Saving the Excel file
workbook.save(path.join(dataDir, "output.xls"));

使用Node.js在Excel工作表中插入OLE对象

Aspose.Cells支持在工作表中添加、提取和操作OLE对象。因此,Aspose.Cells具有OleObjectCollection类,用于向集合列表中添加新的OLE对象。另一个类,OleObject,表示OLE对象。它具有一些重要成员:

  • OleObject.getImageData()属性指定图像(图标)的字节数组数据。图像将显示在工作表中,用于展示OLE对象。
  • OleObject.getObjectData()属性指定对象的数据,形式为字节数组。当双击OLE对象图标时,将在相关程序中显示这些数据。

下面的示例演示了如何将一个或多个OLE对象添加到工作表中。

const path = require("path");
const fs = require("fs");
const AsposeCells = require("aspose.cells.node");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");

// Instantiate a new Workbook.
const workbook = new AsposeCells.Workbook();

// Get the first worksheet.
const sheet = workbook.getWorksheets().get(0);

// Define a string variable to store the image path.
const imageUrl = path.join(dataDir, "logo.jpg");

// Get the picture into the streams.
const imageData = fs.readFileSync(imageUrl);

// Get an excel file path in a variable.
const excelFilePath = path.join(dataDir, "book1.xls");

// Get the file into the streams.
const objectData = fs.readFileSync(excelFilePath);

// Add an Ole object into the worksheet with the image
// Shown in MS Excel.
sheet.getOleObjects().add(14, 3, 200, 220, imageData);

// Set embedded ole object data.
sheet.getOleObjects().get(0).setObjectData(objectData);

// Save the excel file
workbook.save(path.join(dataDir, "output.out.xls"));

使用Node.js在Excel工作表中插入线条

线条的形状属于线条类别。

在Microsoft Excel中(例如2007年):

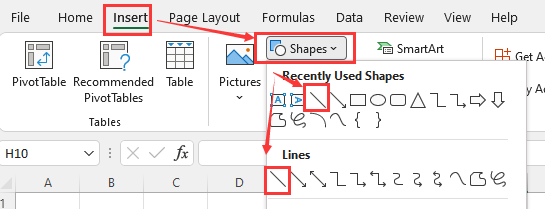

  • 选择要插入线条的单元格
  • 点击“插入”菜单,然后点击“形状”
  • 然后,从“最近使用的形状”或“线条”中选择线条

使用Aspose.Cells

您可以使用以下方法在工作表中插入线条。

以下示例展示了如何在工作表中插入线条。

const path = require("path");
const AsposeCells = require("aspose.cells.node");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "sample.xlsx");
// Create workbook from sample file
const workbook = new AsposeCells.Workbook(filePath);

// Access first worksheet from the collection
const sheet = workbook.getWorksheets().get(0);

// Add the line to the worksheet
sheet.getShapes().addLine(2, 0, 2, 0, 100, 300); // method 1
// sheet.getShapes().addAutoShape(AutoShapeType.Line, 2, 0, 2, 0, 100, 300); // method 2
// sheet.getShapes().addShape(MsoDrawingType.Line, 2, 0, 2, 0, 100, 300); // method 3

// Save. You can check your line in this way.
workbook.save("sample.xlsx", AsposeCells.SaveFormat.Xlsx);

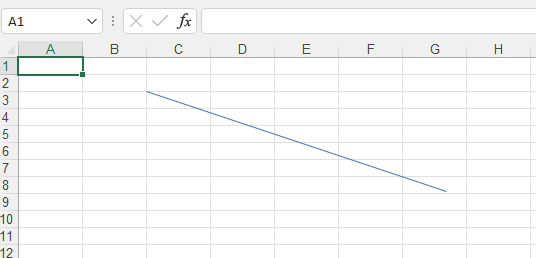

执行上述代码,您将获得以下结果:

使用Node.js在Excel工作表中插入箭头线条

箭头线条的形状属于线条类别。它是线条的一种特殊情况。

在Microsoft Excel中(例如2007年):

  • 选择要插入箭头线的单元格

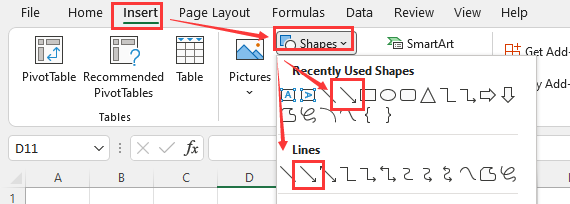

  • 点击“插入”菜单,然后点击“形状”
  • 然后,从“最近使用的形状”或“线条”选择箭头线条

使用Aspose.Cells

您可以使用以下方法在工作表中插入箭头线。

以下示例展示了如何在工作表中插入箭头线条。

const path = require("path");
const AsposeCells = require("aspose.cells.node");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "sample.xlsx");
// Loads the workbook which contains hidden external links
const workbook = new AsposeCells.Workbook(filePath);

// Access first worksheet from the collection
const sheet = workbook.getWorksheets().get(0);

// Add the line arrow to the worksheet
let s = sheet.getShapes().addLine(2, 0, 2, 0, 100, 300); // method 1
// let s = sheet.getShapes().addAutoShape(AsposeCells.AutoShapeType.Line, 2, 0, 2, 0, 100, 300); // method 2
// let s = sheet.getShapes().addShape(AsposeCells.MsoDrawingType.Line, 2, 0, 2, 0, 100, 300); // method 3

// add a arrow at the line begin
s.getLine().setBeginArrowheadStyle(AsposeCells.MsoArrowheadStyle.Arrow); // arrow type
s.getLine().setBeginArrowheadWidth(AsposeCells.MsoArrowheadWidth.Wide); // arrow width
s.getLine().setBeginArrowheadLength(AsposeCells.MsoArrowheadLength.Short); // arrow length

// add a arrow at the line end
s.getLine().setEndArrowheadStyle(AsposeCells.MsoArrowheadStyle.ArrowOpen); // arrow type
s.getLine().setEndArrowheadWidth(AsposeCells.MsoArrowheadWidth.Narrow); // arrow width
s.getLine().setEndArrowheadLength(AsposeCells.MsoArrowheadLength.Long); // arrow length

// Save. You can check your arrow in this way.
workbook.save("sample.xlsx", AsposeCells.SaveFormat.Xlsx);

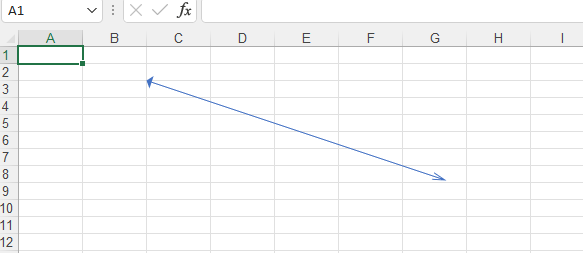

执行上述代码,您将获得以下结果:

在Excel工作表中插入矩形的Node.js示例

矩形的形状属于矩形类别。

在Microsoft Excel中(例如2007年):

  • 选择要插入矩形的单元格

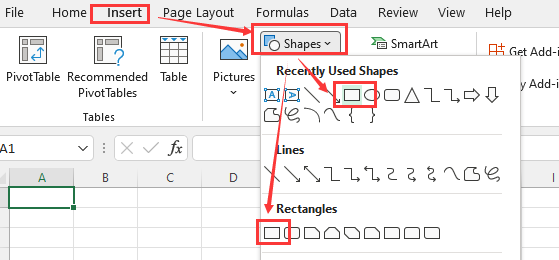

  • 点击“插入”菜单,然后点击“形状”
  • 然后,从“最近使用的形状”或“矩形”中选择矩形

使用Aspose.Cells

您可以使用以下方法在工作表中插入矩形。

以下示例展示了如何在工作表中插入矩形。

const AsposeCells = require("aspose.cells.node");
const path = require("path");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "sample.xlsx");
// Create workbook from sample file
const workbook = new AsposeCells.Workbook(filePath);

// Access first worksheet from the collection
const sheet = workbook.getWorksheets().get(0);

// Add the rectangle to the worksheet
sheet.getShapes().addRectangle(2, 0, 2, 0, 100, 300);

// Save
workbook.save("sample.xlsx", AsposeCells.SaveFormat.Xlsx);

执行上述代码,您将获得以下结果:

使用Node.js在Excel工作表中插入立方体

立方体的形状属于基本形状类别。

在Microsoft Excel中(例如2007年):

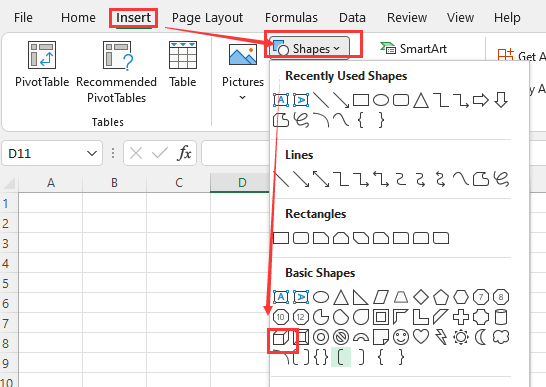

  • 选择要插入立方体的单元格
  • 点击“插入”菜单,然后点击“形状”
  • 然后,从“基本形状”中选择立方体

使用Aspose.Cells

您可以使用以下方法在工作表中插入立方体。

以下示例展示了如何在工作表中插入立方体。

const path = require("path");
const AsposeCells = require("aspose.cells.node");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "sample.xlsx");
// Loads the workbook which contains hidden external links
const workbook = new AsposeCells.Workbook(filePath);

// Access first worksheet from the collection
const sheet = workbook.getWorksheets().get(0);

// Add the cube to the worksheet
sheet.getShapes().addAutoShape(AsposeCells.AutoShapeType.Cube, 2, 0, 2, 0, 100, 300);

// Save. You can check your cube in this way.
workbook.save("sample.xlsx", AsposeCells.SaveFormat.Xlsx);

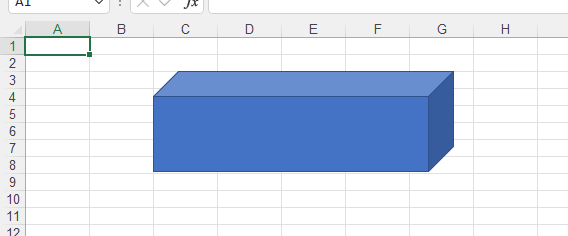

执行上述代码,您将获得以下结果:

在Excel工作表中插入提示文本箭头(呼出四边形)Node.js示例

呼出四边形箭头的形状属于块箭头类别。

在Microsoft Excel中(例如2007年):

  • 选择要插入标注四箭头的单元格

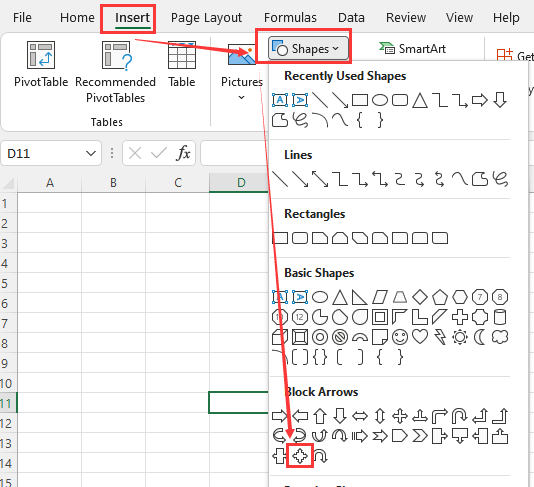

  • 点击“插入”菜单,然后点击“形状”
  • 然后,从“块箭头”中选择呼出四边形箭头

使用Aspose.Cells

您可以使用以下方法在工作表中插入标注四箭头

以下示例展示如何向工作表插入调用箭头。

const path = require("path");
const AsposeCells = require("aspose.cells.node");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "sample.xlsx");
// Loads the workbook which contains hidden external links
const workbook = new AsposeCells.Workbook(filePath);

// Access first worksheet from the collection
const sheet = workbook.getWorksheets().get(0);

// Add the callout quad arrow to the worksheet
sheet.getShapes().addAutoShape(AsposeCells.AutoShapeType.QuadArrowCallout, 2, 0, 2, 0, 100, 100);

//Save
workbook.save("sample.xlsx", AsposeCells.SaveFormat.Xlsx);

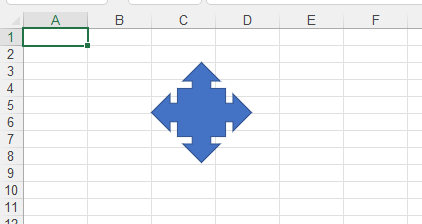

执行上述代码,您将获得以下结果:

使用 Node.js 在 Excel 工作表中插入乘号

乘号的形状属于 方程式形状 类别。

在Microsoft Excel中(例如2007年):

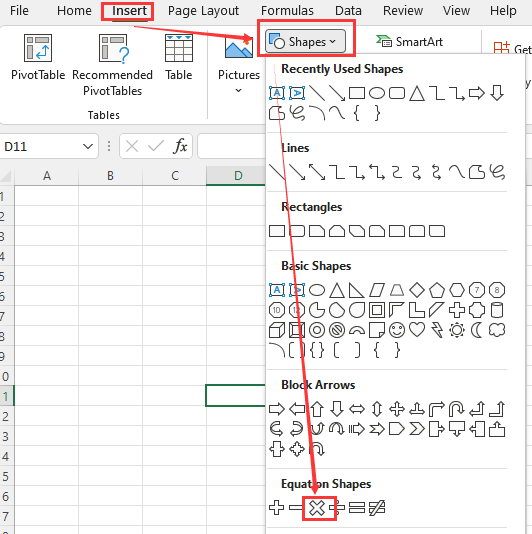

  • 选择要插入乘法符号的单元格
  • 点击“插入”菜单,然后点击“形状”
  • 然后,从 方程式形状 中选择乘号

使用Aspose.Cells

您可以使用以下方法在工作表中插入乘法符号

以下示例展示如何向工作表插入乘号。

const path = require("path");
const AsposeCells = require("aspose.cells.node");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "sample.xlsx");
// Loads the workbook which contains hidden external links
const workbook = new AsposeCells.Workbook(filePath);

// Access first worksheet from the collection
const sheet = workbook.getWorksheets().get(0);

// Add the multiplication sign to the worksheet
sheet.getShapes().addAutoShape(AsposeCells.AutoShapeType.MathMultiply, 2, 0, 2, 0, 100, 100);

// Save. You can check your multiplication in this way.
workbook.save("sample.xlsx", AsposeCells.SaveFormat.Xlsx);

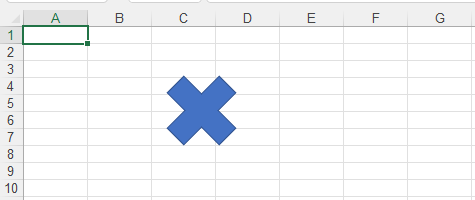

执行上述代码,您将获得以下结果:

使用 Node.js 在 Excel 工作表中插入多文档

多文档的形状属于 流程图 类别。

在Microsoft Excel中(例如2007年):

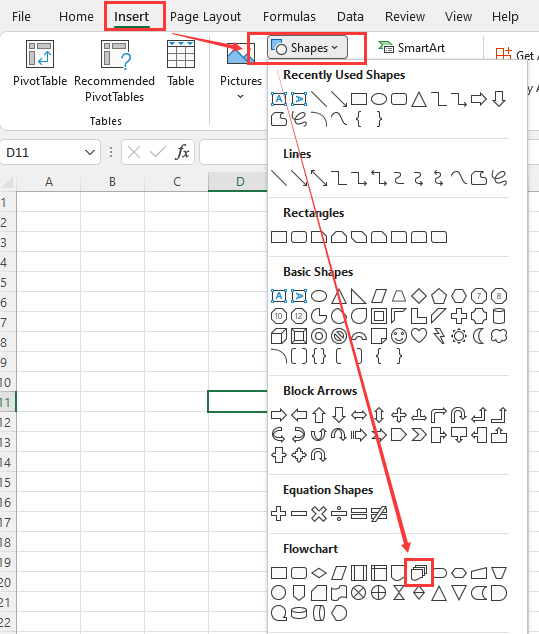

  • 选择要插入多文档的单元格
  • 点击“插入”菜单,然后点击“形状”
  • 然后,从 流程图 中选择多文档

使用Aspose.Cells

您可以使用以下方法在工作表中插入多文档。

以下示例展示如何向工作表插入多文档。

const path = require("path");
const AsposeCells = require("aspose.cells.node");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "sample.xlsx");
// Create workbook from sample file
const workbook = new AsposeCells.Workbook(filePath);

// Access first worksheet from the collection
const sheet = workbook.getWorksheets().get(0);

// Add the multidocument to the worksheet
sheet.getShapes().addAutoShape(AsposeCells.AutoShapeType.FlowChartMultidocument, 2, 0, 2, 0, 100, 100);

// Save
workbook.save("sample.xlsx", AsposeCells.SaveFormat.Xlsx);

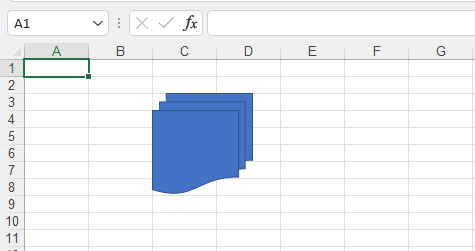

执行上述代码,您将获得以下结果:

使用 Node.js 在 Excel 工作表中插入五角星

五角星的形状属于 星星和旗帜 类别。

在Microsoft Excel中(例如2007年):

  • 选择要插入五角星的单元格

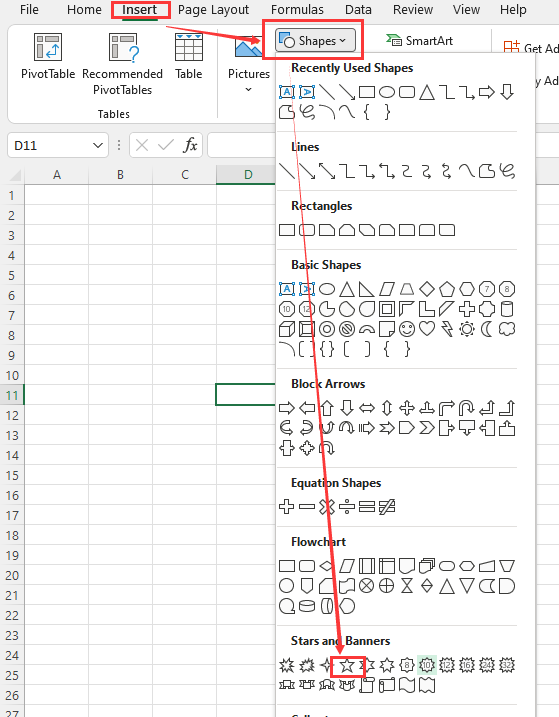

  • 点击“插入”菜单,然后点击“形状”
  • 然后,从 星星与旗帜 中选择五角星

使用Aspose.Cells

您可以使用以下方法在工作表中插入五角星

以下示例展示如何向工作表插入五角星。

const AsposeCells = require("aspose.cells.node");
const path = require("path");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "sample.xlsx");
// Create workbook from sample file
const workbook = new AsposeCells.Workbook(filePath);

// Access first worksheet from the collection
const sheet = workbook.getWorksheets().get(0);

// Add the Five-pointed star to the worksheet
sheet.getShapes().addAutoShape(AsposeCells.AutoShapeType.Star5, 2, 0, 2, 0, 100, 100);

// Save. You can check your icon in this way.
workbook.save("sample.xlsx", AsposeCells.SaveFormat.Xlsx);

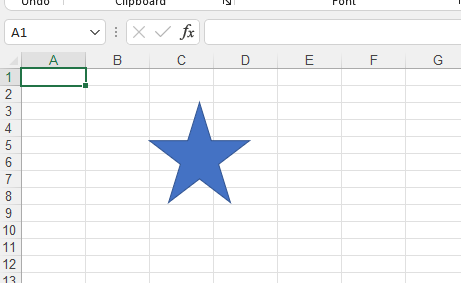

执行上述代码,您将获得以下结果:

使用 Node.js 在 Excel 工作表中插入思维云泡泡

思维云泡泡的形状属于 注释 类别。

在Microsoft Excel中(例如2007年):

  • 选择要插入思维气泡云的单元格

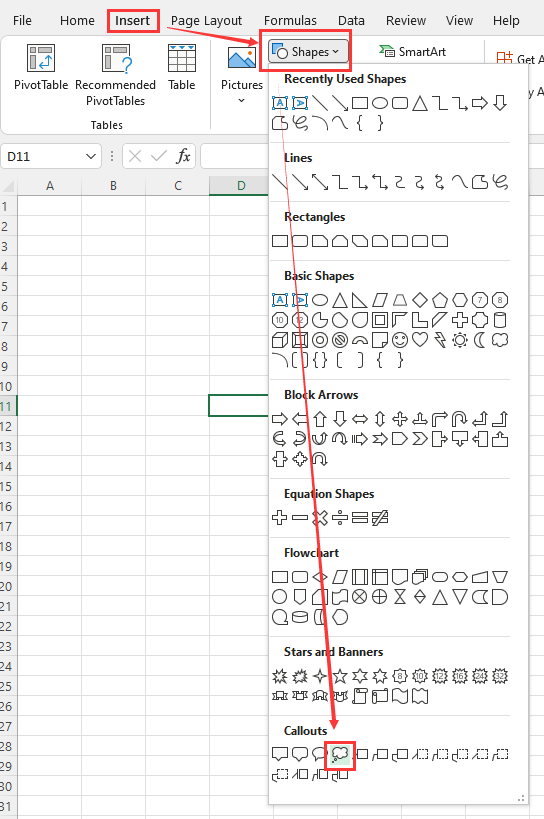

  • 点击“插入”菜单,然后点击“形状”
  • 然后,从 注释 中选择思维云泡泡

使用Aspose.Cells

您可以使用以下方法在工作表中插入思维气泡云。

以下示例展示如何向工作表插入思维云泡泡。

const AsposeCells = require("aspose.cells.node");
const path = require("path");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "sample.xlsx");
// Loads the workbook which contains hidden external links
const workbook = new AsposeCells.Workbook(filePath);

// Access first worksheet from the collection
const sheet = workbook.getWorksheets().get(0);

// Add the thought bubble cloud to the worksheet
sheet.getShapes().addAutoShape(AsposeCells.AutoShapeType.CloudCallout, 2, 0, 2, 0, 100, 100);

// Save
workbook.save("sample.xlsx", AsposeCells.SaveFormat.Xlsx);

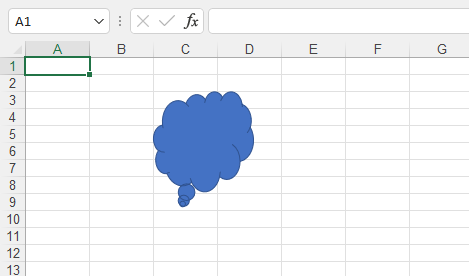

执行上述代码,您将获得以下结果:
