用Node.js通过C++保护工作表

保护工作表

介绍

Microsoft Excel中的常规保护选项包括:

  • 内容
  • 对象
  • 方案

受保护的工作表不会隐藏或保护敏感数据,因此它与文件加密不同。通常,工作表保护适用于展示目的。它防止最终用户修改工作表中的数据、内容和格式。

保护工作表

Aspose.Cells提供一个类Workbook,代表Microsoft Excel文件。Workbook类包含一个getWorksheets()集合,可以访问Excel文件中的每个工作表。工作表由Worksheet类表示。

Worksheet类提供用于在工作表上应用保护的protect(ProtectionType)方法。protect(ProtectionType)方法接受以下参数:

  • 保护类型,应用于工作表的保护类型。保护类型是使用ProtectionType枚举来应用的。
  • 新密码,用于保护工作表的新密码。
  • 旧密码,如果工作表已经受到密码保护,则传入旧密码。如果工作表尚未受到保护,则传递 null。

ProtectionType枚举包含以下预定义的保护类型:

保护类型 描述
All 用户无法修改工作表中的任何内容
Contents 用户无法在工作表中输入数据
Objects 用户无法修改绘图对象
Scenarios 用户无法修改已保存的情景
Structure 用户无法修改结构
Windows 保护应用于窗口
None 不应用任何保护

下例显示如何使用密码保护工作表。

const path = require("path");
const fs = require("fs");
const AsposeCells = require("aspose.cells.node");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "book1.xls");

// Instantiating a Workbook object with file buffer
const excel = new AsposeCells.Workbook(fs.readFileSync(filePath));

// Accessing the first worksheet in the Excel file
const worksheet = excel.getWorksheets().get(0);

// Protecting the worksheet with a password
worksheet.protect(AsposeCells.ProtectionType.All, "aspose", null);

// Saving the modified Excel file in default format
excel.save(path.join(dataDir, "output.out.xls"), AsposeCells.SaveFormat.Excel97To2003);

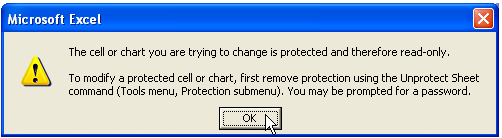

使用上述代码保护工作表后,打开工作表即可检查工作表的保护。一旦打开文件并尝试向工作表添加一些数据,您将会看到以下对话框:

警告对话框,提示用户无法修改工作表
todo:image_alt_text

要在工作表上操作,请选择 保护,然后在 工具 菜单项中选择 取消保护工作表

选择取消保护工作表菜单项后,将会打开一个对话框,提示您输入密码,以便您可以在工作表上进行操作,如下所示:

|todo:image_alt_text|

使用Microsoft Excel保护工作表的部分单元格

某些情况下你可能只需要锁定工作表中的部分单元格。如果你想锁定工作表中的特定单元格,你必须解锁工作表中的所有其他单元格。工作表中的所有单元格默认都已初始化为锁定状态;你可以通过在MS Excel中打开任何Excel文件,点击“格式|单元格…”弹出“单元格格式”对话框,再点击“保护”标签,看到被选中的“锁定”复选框(默认已勾选)来确认这一点。

以下内容描述了如何使用MS Excel锁定部分单元格。此方法适用于Microsoft Office Excel 97、2000、2002、2003及更高版本。

  1. 点击全选按钮(位于行号1上方和列号A左侧的灰色矩形)来选择整个工作表。
  2. 在“格式”菜单中点击“单元格”,切换到“保护”标签,然后取消选中“锁定”复选框。 这样就解锁了工作表上的所有单元格。 如果单元格命令不可用,工作表的部分可能已被锁定。在工具菜单上,指向保护,然后点击取消保护工作表
  3. 仅选择你想锁定的单元格,重复第2步,但这次勾选“锁定”。
  4. 在“工具”菜单中,指向“保护”,点击“保护工作表”,然后点击“确定”。
  5. 在“保护工作表”对话框中,你可以设置密码,并选择用户可更改的元素。

使用Aspose.Cells保护工作表中的部分单元格

在此方法中,我们仅使用Aspose.Cells API完成任务。

示例:以下示例演示如何保护工作表中的部分单元格。它先解锁所有单元格,然后锁定3个单元格(A1、B1、C1),最后保护工作表。Style对象包含一个布尔属性isLocked(),你可以将isLocked()属性设置为true或false,并使用*Column/Row.applyStyle()*方法锁定或解锁行/列,使用你希望的属性。

const path = require("path");
const AsposeCells = require("aspose.cells.node");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");

// Create a new workbook.
const wb = new AsposeCells.Workbook();

// Create a worksheet object and obtain the first sheet.
const sheet = wb.getWorksheets().get(0);

// Define the style object.
let style;

// Define the styleflag object
const styleflag = new AsposeCells.StyleFlag();

// Loop through all the columns in the worksheet and unlock them.
for (let i = 0; i <= 255; i++) {
style = sheet.getCells().getColumns().get((i)).getStyle();
style.setIsLocked(false);
styleflag.setLocked(true);
sheet.getCells().getColumns().get((i)).applyStyle(style, styleflag);
}

// Lock the three cells...i.e. A1, B1, C1.
style = sheet.getCells().get("A1").getStyle();
style.setIsLocked(true);
sheet.getCells().get("A1").setStyle(style);
style = sheet.getCells().get("B1").getStyle();
style.setIsLocked(true);
sheet.getCells().get("B1").setStyle(style);
style = sheet.getCells().get("C1").getStyle();
style.setIsLocked(true);
sheet.getCells().get("C1").setStyle(style);

// Finally, Protect the sheet now.
sheet.protect(AsposeCells.ProtectionType.All);

// Save the excel file.
wb.save(path.join(dataDir, "output.out.xls"), AsposeCells.SaveFormat.Excel97To2003);

在工作表中保护一行

Aspose.Cells允许你轻松锁定工作表中的任一行。在这里,我们可以使用Aspose.Cells.Row类的applyStyle(Style, StyleFlag)方法,将Style应用于工作表中的特定行。此方法接受两个参数:一个Style对象和一个StyleFlag对象,后者包含所有与应用格式相关的成员。

以下示例演示如何保护工作表中的某一行。它先解锁所有单元格,然后锁定第一行,最后保护工作表。Style对象包含一个布尔属性isLocked(),你可以将isLocked()设为true或false,以锁定或解锁该行/列,使用 StyleFlag对象。

const path = require("path");
const AsposeCells = require("aspose.cells.node");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");

// Create a new workbook.
const wb = new AsposeCells.Workbook();

// Create a worksheet object and obtain the first sheet.
const sheet = wb.getWorksheets().get(0);

// Define the style object.
let style;

// Define the styleflag object.
const flag = new AsposeCells.StyleFlag();

// Loop through all the columns in the worksheet and unlock them.
for (let i = 0; i <= 255; i++) {
style = sheet.getCells().getColumns().get(i).getStyle();
style.setIsLocked(false);
flag.setLocked(true);
sheet.getCells().getColumns().get(i).applyStyle(style, flag);
}

// Get the first row style.
style = sheet.getCells().getRows().get(0).getStyle();

// Lock it.
style.setIsLocked(true);

// Set the lock setting.
flag.setLocked(true);

// Apply the style to the first row.
sheet.getCells().applyRowStyle(0, style, flag);

// Protect the sheet.
sheet.protect(AsposeCells.ProtectionType.All);

// Save the excel file.
wb.save(path.join(dataDir, "output.out.xls"), AsposeCells.SaveFormat.Excel97To2003);

在工作表中保护一列

Aspose.Cells允许你轻松锁定工作表中的某一列。这里,我们可以使用Aspose.Cells.Column类的applyStyle(Style, StyleFlag)方法,将Style应用于工作表中的特定列。此方法接受两个参数:一个Style对象和一个StyleFlag对象,后者包含所有相关格式成员。

以下示例显示如何保护工作表中的某一列。它先解锁所有单元格,然后锁定第一列,最后保护工作表。Style对象包含一个布尔属性isLocked(),你可以将isLocked()设为true或false,以锁定或解锁该列,使用StyleFlag对象。

const AsposeCells = require("aspose.cells.node");
const path = require("path");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");

// Create a new workbook.
const wb = new AsposeCells.Workbook();

// Create a worksheet object and obtain the first sheet.
const sheet = wb.getWorksheets().get(0);

// Define the style object.
let style;

// Define the styleflag object.
const flag = new AsposeCells.StyleFlag();

// Loop through all the columns in the worksheet and unlock them.
for (let i = 0; i <= 255; i++) {
style = sheet.getCells().getColumns().get(i).getStyle();
style.setIsLocked(false);
flag.setLocked(true);
sheet.getCells().getColumns().get(i).applyStyle(style, flag);
}

// Get the first column style.
style = sheet.getCells().getColumns().get(0).getStyle();

// Lock it.
style.setIsLocked(true);

// Apply the style to the first column.
sheet.getCells().getColumns().get(0).applyStyle(style, flag);

// Protect the sheet.
sheet.protect(AsposeCells.ProtectionType.All);

// Save the excel file.
wb.save(path.join(dataDir, "output.out.xls"), AsposeCells.SaveFormat.Excel97To2003);

允许用户编辑范围

下面的示例展示了如何允许用户在受保护的工作表中编辑范围。

const path = require("path");
const AsposeCells = require("aspose.cells.node");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");

// Instantiate a new Workbook
const book = new AsposeCells.Workbook();

// Get the first (default) worksheet
const sheet = book.getWorksheets().get(0);

// Get the Allow Edit Ranges
const allowRanges = sheet.getAllowEditRanges();

// Define ProtectedRange
let protected_range;

// Create the range
const idx = allowRanges.add("r2", 1, 1, 3, 3);
protected_range = allowRanges.get(idx);

// Specify the password
protected_range.setPassword("123");

// Protect the sheet
sheet.protect(AsposeCells.ProtectionType.All);

// Save the Excel file
book.save(path.join(dataDir, "protectedrange.out.xls"));
