设置 PdfSaveOptions 和 ImageOrPrintOptions 的 DefaultFont 属性以提升优先级,使用 C++ 和 Node.js
可能的使用场景
在设置 PdfSaveOptions 和 ImageOrPrintOptions 的 DefaultFont 属性时,您可能希望保存为 PDF 或图像时将该 DefaultFont 设置为工作簿中所有没有安装的字体的文本。
通常,在保存为 PDF 或图片时,Aspose.Cells for Node.js via C++ 会优先尝试设置工作簿的默认字体(即 Workbook.DefaultStyle.Font
)。如果工作簿的默认字体仍无法正确显示/渲染文本,Aspose.Cells 将尝试使用 PdfSaveOptions/ImageOrPrintOptions 中默认字体属性所指定的字体进行渲染。
为了符合您的期望,我们在 PdfSaveOptions/ImageOrPrintOptions 中提供了一个名为"CheckWorkbookDefaultFont“的布尔属性。您可以将其设置为 false 以禁用尝试工作簿的默认字体,或者让 PdfSaveOptions/ImageOrPrintOptions 中的 DefaultFont 设置具有优先级。
设置PdfSaveOptions/ImageOrPrintOptions的DefaultFont属性
以下示例代码打开一个Excel文件。第一个工作表的A1单元格内设置了一段文本“Christmas Time Font text”。字体名为“Christmas Time Personal Use”,该字体未安装在机器上。我们将PdfSaveOptions/ImageOrPrintOptions的DefaultFont属性设置为“Times New Roman”。同时将布尔属性CheckWorkbookDefaultFont设置为“false”,确保A1单元格的文本使用“Times New Roman”字体渲染,而不是使用默认字体(此处为“Calibri”)。该代码将第一个工作表渲染为PNG和TIFF图像格式,最后输出为PDF文件。

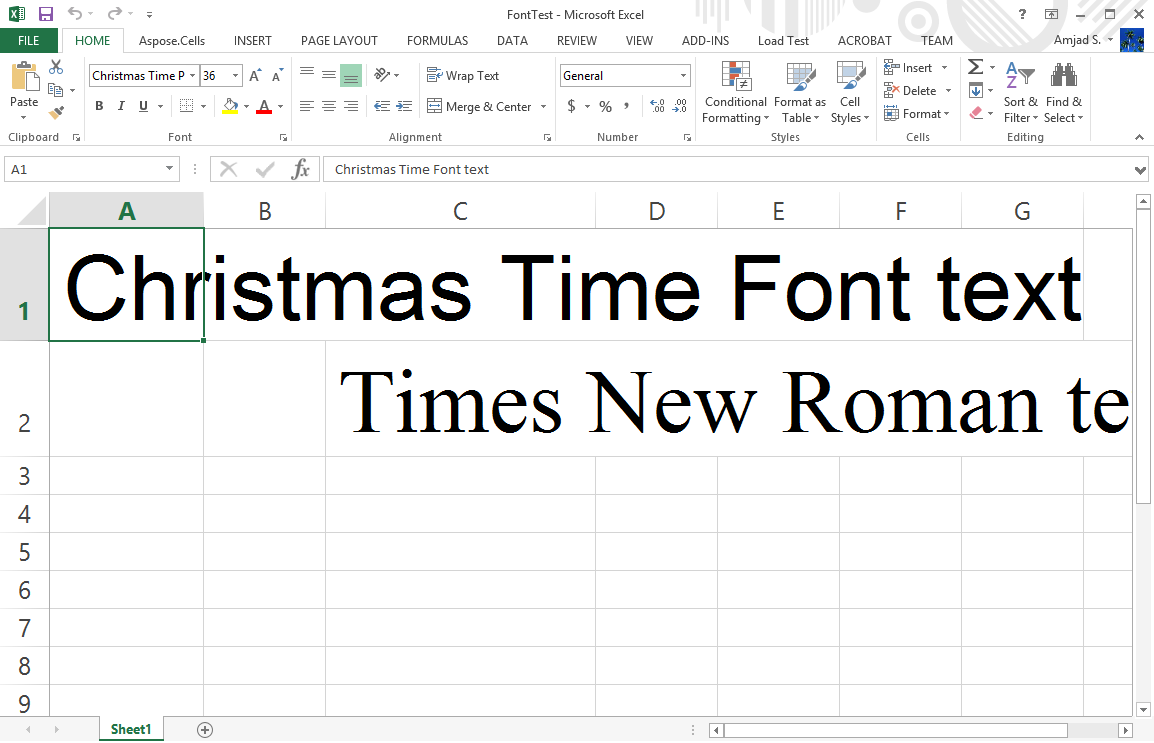

这是示例代码中使用的模板文件的屏幕截图。
设置ImageOrPrintOptions.getDefaultFont()属性为“Times New Roman”后生成的PNG图像示意。
设置ImageOrPrintOptions.getDefaultFont()属性为“Times New Roman”后,输出的TIF图像。
在设置 PdfSaveOptions.getDefaultFont() 属性为 “Times New Roman” 后,查看输出 PDF 文件。
示例代码
const path = require("path");
const AsposeCells = require("aspose.cells.node");
// The path to the documents directory.
const sourceDir = path.join(__dirname, "data");
const outputDir = path.join(__dirname, "output");
// Open an Excel file.
const workbook = new AsposeCells.Workbook(path.join(sourceDir, "sampleSetDefaultFontPropertyOfPdfSaveOptionsAndImageOrPrintOptions.xlsx"));
// Rendering to PNG file format while setting the CheckWorkbookDefaultFont attribute to false.
// So, "Times New Roman" font would be used for any missing (not installed) font in the workbook.
const imgOpt = new AsposeCells.ImageOrPrintOptions();
imgOpt.setImageType(AsposeCells.ImageType.Png);
imgOpt.setCheckWorkbookDefaultFont(false);
imgOpt.setDefaultFont("Times New Roman");
const sr = new AsposeCells.SheetRender(workbook.getWorksheets().get(0), imgOpt);
sr.toImage(0, path.join(outputDir, "out1_imagePNG.png"));
// Rendering to TIFF file format while setting the CheckWorkbookDefaultFont attribute to false.
// So, "Times New Roman" font would be used for any missing (not installed) font in the workbook.
imgOpt.setImageType(AsposeCells.ImageType.Tiff);
const wr = new AsposeCells.WorkbookRender(workbook, imgOpt);
wr.toImage(path.join(outputDir, "out1_imageTIFF.tiff"));
// Rendering to PDF file format while setting the CheckWorkbookDefaultFont attribute to false.
// So, "Times New Roman" font would be used for any missing (not installed) font in the workbook.
const saveOptions = new AsposeCells.PdfSaveOptions();
saveOptions.setDefaultFont("Times New Roman");
saveOptions.setCheckWorkbookDefaultFont(false);
workbook.save(path.join(outputDir, "out1_pdf.pdf"), saveOptions);
