如何创建树状图表

可能的使用场景

树状图表提供了数据的分级视图，可轻松找出模式，比如哪些项目是商店的畅销品。树的分支由矩形代表，每个子分支显示为较小的矩形。树状图表通过颜色和临近性显示类别，并且可以轻松显示大量数据，这在其他图表类型中可能会很困难。

树状图表

运行下面的代码后，您将会看到如下所示的树状图表。

示例代码

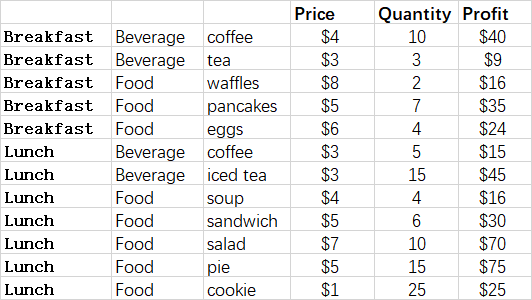

以下示例代码加载 样本 Excel 文件 并生成 输出 Excel 文件。

from aspose.cells import Workbook
from aspose.cells.charts import ChartType
from aspose.cells.drawing import FillType

#  Create an instance of Workbook
workbook = Workbook("treemap.xlsx")
#  Access the first worksheet
worksheet = workbook.worksheets[0]
#  Add a Treemap chart
pieIdx = worksheet.charts.add(ChartType.TREEMAP, 5, 6, 20, 12)
#  Retrieve the Chart object
chart = worksheet.charts[pieIdx]
#  Set the legend can be showed
chart.show_legend = True
#  Set the chart title name
chart.title.text = "TreeMap Chart"
#  Add series data range(D2:D13,actually)
chart.n_series.add("D2:F13", True)
#  Set category data(A2:A13 is incorrect )
chart.n_series.category_data = "A2:C13"
#  Show the DataLabels with category names
chart.n_series[0].data_labels.show_category_name = True
#  Fill the PlotArea area with nothing
chart.plot_area.area.fill_format.fill_type = FillType.NONE
#  Save the Excel file
workbook.save("out.xlsx")
