PositionedBlock

This element is used to place any number of other form elements at the specific coordinates on the page. This element does not have a visual representation by itself and is only used for organizing other content.

Declaration

PositionedBlock element is declared as an object with "element_type": "PositionedBlock" property.

Elements displayed inside the block are provided as an array of objects in the children property.

{
	"element_type": "PositionedBlock",
	"children": [
		/*** put child elements here */
	]
}

Required properties

Name	Type	Description
element_type	string	Must be "PositionedBlock" (case-insensitive).
children	array	Child elements.
x	integer	Absolute position of the block (in pixels) relative to the left edge of the page.
y	integer	Absolute position of the block (in pixels) relative to the top edge of the page.

Optional properties

Name	Type	Default value	Description
name	string	n/a	Used as a reminder of the element’s purpose; for example, “Student info”. You can use the same value for multiple blocks. This text is not displayed on the form.
width	integer	Automatically adjusted to fit content	Set fixed block width, in pixels. The content that does not fit the block width may be clipped or wrapped based on the global page overflow setting.
height	integer	Automatically adjusted to fit content	Set fixed block height, in pixels. The content that does not fit the block height may be clipped based on the global page overflow setting.

Allowed child elements

All, except for Page and Template.

Examples

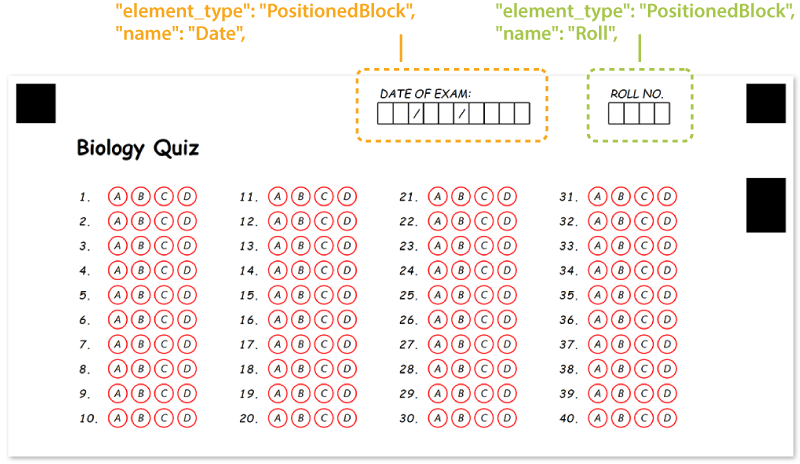

Check out the code example to see how PositionedBlock element can be used and combined with other elements.

{
	"element_type": "Template",
	"children": [
		{
			"element_type": "Page",
			"children": [
				{
					"element_type": "Text",
					"name": "Biology Quiz",
					"font_size": 16,
					"font_style": "bold"
				},
				{
					"element_type": "EmptyLine"
				},
				{
					"element_type": "AnswerSheet",
					"name": "Plants",
					"elements_count": 40,
					"columns_count": 4,
					"answers_count": 4
				},
				{
					"element_type": "PositionedBlock",
					"name": "Date",
					"x": 1200,
					"y": 30,
					"children": [
						{
							"element_type": "Content",
							"name": "DATE OF EXAM:"
						},
						{
							"element_type": "Content",
							"name": "  /  /    ",
							"content_type": "cells"
						}
					]
				},
				{
					"element_type": "PositionedBlock",
					"name": "Roll",
					"x": 1950,
					"y": 30,
					"children": [
						{
							"element_type": "Content",
							"name": "ROLL NO."
						},
						{
							"element_type": "Content",
							"name": "    ",
							"content_type": "cells"
						}
					]
				}
			]
		}
	]
}
