Chart Data Label

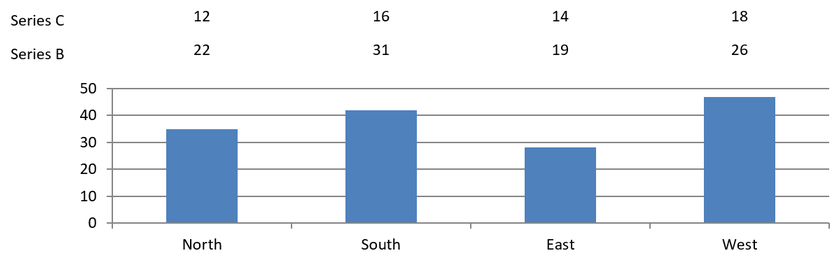

Data labels on a chart show details about the chart data series or individual data points. They allow readers to quickly identify data series and they also make charts easier to understand.

Set Precision of Data in Chart Data Labels

This PHP code shows you how to set the data precision in a chart data label:

  $pres = new Presentation();
  try {
    $chart = $pres->getSlides()->get_Item(0)->getShapes()->addChart(ChartType::Line, 50, 50, 450, 300);
    $chart->setDataTable(true);
    $chart->getChartData()->getSeries()->get_Item(0)->setNumberFormatOfValues("#,##0.00");
    $pres->save("output.pptx", SaveFormat::Pptx);
  } finally {
    if (!java_is_null($pres)) {
      $pres->dispose();
    }
  }

Display Percentage as Labels

Aspose.Slides for PHP via Java allows you to set percentage labels on displayed charts. This PHP code demonstrates the operation:

  # Creates an instance of the Presentation class
  $pres = new Presentation();
  try {
    # Gets the first slide
    $slide = $pres->getSlides()->get_Item(0);
    $chart = $slide->getShapes()->addChart(ChartType::StackedColumn, 20, 20, 400, 400);
    $series;
    $total_for_Cat = new double[$chart->getChartData()->getCategories()->size()];
    for($k = 0; $k < java_values($chart->getChartData()->getCategories()->size()) ; $k++) {
      $cat = $chart->getChartData()->getCategories()->get_Item($k);
      for($i = 0; $i < java_values($chart->getChartData()->getSeries()->size()) ; $i++) {
        $total_for_Cat[$k] = $total_for_Cat[$k] + $chart->getChartData()->getSeries()->get_Item($i)->getDataPoints()->get_Item($k)->getValue()->getData();
      }
    }
    $dataPontPercent = 0.0;
    for($x = 0; $x < java_values($chart->getChartData()->getSeries()->size()) ; $x++) {
      $series = $chart->getChartData()->getSeries()->get_Item($x);
      $series->getLabels()->getDefaultDataLabelFormat()->setShowLegendKey(false);
      for($j = 0; $j < java_values($series->getDataPoints()->size()) ; $j++) {
        $lbl = $series->getDataPoints()->get_Item($j)->getLabel();
        $dataPontPercent = $series->getDataPoints()->get_Item($j)->getValue()->getData() / $total_for_Cat[$j] * 100;
        $port = new Portion();
        $port->setText(sprintf("{0:F2} %.2f", $dataPontPercent));
        $port->getPortionFormat()->setFontHeight(8.0);
        $lbl->getTextFrameForOverriding()->setText("");
        $para = $lbl->getTextFrameForOverriding()->getParagraphs()->get_Item(0);
        $para->getPortions()->add($port);
        $lbl->getDataLabelFormat()->setShowSeriesName(false);
        $lbl->getDataLabelFormat()->setShowPercentage(false);
        $lbl->getDataLabelFormat()->setShowLegendKey(false);
        $lbl->getDataLabelFormat()->setShowCategoryName(false);
        $lbl->getDataLabelFormat()->setShowBubbleSize(false);
      }
    }
    # Saves the presentation containing the chart
    $pres->save("output.pptx", SaveFormat::Pptx);
  } finally {
    if (!java_is_null($pres)) {
      $pres->dispose();
    }
  }

Set Percentage Sign with Chart Data Labels

This PHP code shows you to set the percentage sign for a chart data label:

  # Creates an instance of the Presentation class
  $pres = new Presentation();
  try {
    # Gets a slide's reference through its index
    $slide = $pres->getSlides()->get_Item(0);
    # Creates the PercentsStackedColumn chart on a slide
    $chart = $slide->getShapes()->addChart(ChartType::PercentsStackedColumn, 20, 20, 500, 400);
    # Sets the NumberFormatLinkedToSource to false
    $chart->getAxes()->getVerticalAxis()->setNumberFormatLinkedToSource(false);
    $chart->getAxes()->getVerticalAxis()->setNumberFormat("0.00%");
    $chart->getChartData()->getSeries()->clear();
    $defaultWorksheetIndex = 0;
    # Gets the chart data worksheet
    $workbook = $chart->getChartData()->getChartDataWorkbook();
    # Adds new series
    $series = $chart->getChartData()->getSeries()->add($workbook->getCell($defaultWorksheetIndex, 0, 1, "Reds"), $chart->getType());
    $series->getDataPoints()->addDataPointForBarSeries($workbook->getCell($defaultWorksheetIndex, 1, 1, 0.3));
    $series->getDataPoints()->addDataPointForBarSeries($workbook->getCell($defaultWorksheetIndex, 2, 1, 0.5));
    $series->getDataPoints()->addDataPointForBarSeries($workbook->getCell($defaultWorksheetIndex, 3, 1, 0.8));
    $series->getDataPoints()->addDataPointForBarSeries($workbook->getCell($defaultWorksheetIndex, 4, 1, 0.65));
    # Sets the fill color of series
    $series->getFormat()->getFill()->setFillType(FillType::Solid);
    $series->getFormat()->getFill()->getSolidFillColor()->setColor(java("java.awt.Color")->RED);
    # Sets the LabelFormat properties
    $series->getLabels()->getDefaultDataLabelFormat()->setShowValue(true);
    $series->getLabels()->getDefaultDataLabelFormat()->setNumberFormatLinkedToSource(false);
    $series->getLabels()->getDefaultDataLabelFormat()->setNumberFormat("0.0%");
    $series->getLabels()->getDefaultDataLabelFormat()->getTextFormat()->getPortionFormat()->setFontHeight(10);
    $series->getLabels()->getDefaultDataLabelFormat()->getTextFormat()->getPortionFormat()->getFillFormat()->setFillType(FillType::Solid);
    $series->getLabels()->getDefaultDataLabelFormat()->getTextFormat()->getPortionFormat()->getFillFormat()->getSolidFillColor()->setColor(java("java.awt.Color")->WHITE);
    $series->getLabels()->getDefaultDataLabelFormat()->setShowValue(true);
    # Adds new series
    $series2 = $chart->getChartData()->getSeries()->add($workbook->getCell($defaultWorksheetIndex, 0, 2, "Blues"), $chart->getType());
    $series2->getDataPoints()->addDataPointForBarSeries($workbook->getCell($defaultWorksheetIndex, 1, 2, 0.7));
    $series2->getDataPoints()->addDataPointForBarSeries($workbook->getCell($defaultWorksheetIndex, 2, 2, 0.5));
    $series2->getDataPoints()->addDataPointForBarSeries($workbook->getCell($defaultWorksheetIndex, 3, 2, 0.2));
    $series2->getDataPoints()->addDataPointForBarSeries($workbook->getCell($defaultWorksheetIndex, 4, 2, 0.35));
    # Sets Fill type and color
    $series2->getFormat()->getFill()->setFillType(FillType::Solid);
    $series2->getFormat()->getFill()->getSolidFillColor()->setColor(java("java.awt.Color")->BLUE);
    $series2->getLabels()->getDefaultDataLabelFormat()->setShowValue(true);
    $series2->getLabels()->getDefaultDataLabelFormat()->setNumberFormatLinkedToSource(false);
    $series2->getLabels()->getDefaultDataLabelFormat()->setNumberFormat("0.0%");
    $series2->getLabels()->getDefaultDataLabelFormat()->getTextFormat()->getPortionFormat()->setFontHeight(10);
    $series2->getLabels()->getDefaultDataLabelFormat()->getTextFormat()->getPortionFormat()->getFillFormat()->setFillType(FillType::Solid);
    $series2->getLabels()->getDefaultDataLabelFormat()->getTextFormat()->getPortionFormat()->getFillFormat()->getSolidFillColor()->setColor(java("java.awt.Color")->WHITE);
    # Writes the presentation to disk
    $pres->save("SetDataLabelsPercentageSign_out.pptx", SaveFormat::Pptx);
  } finally {
    if (!java_is_null($pres)) {
      $pres->dispose();
    }
  }

Set Label Distances From Axis

This PHP code shows you how to set the label distance from a category axis when you are dealing with a chart plotted from axes:

  # Creates an instance of the Presentation class
  $pres = new Presentation();
  try {
    # Gets a slide's reference
    $sld = $pres->getSlides()->get_Item(0);
    # Creates a chart on the slide
    $ch = $sld->getShapes()->addChart(ChartType::ClusteredColumn, 20, 20, 500, 300);
    # Sets the label distance from an axis
    $ch->getAxes()->getHorizontalAxis()->setLabelOffset(500);
    # WriteS the presentation to disk
    $pres->save("output.pptx", SaveFormat::Pptx);
  } finally {
    if (!java_is_null($pres)) {
      $pres->dispose();
    }
  }

Adjust Label Location

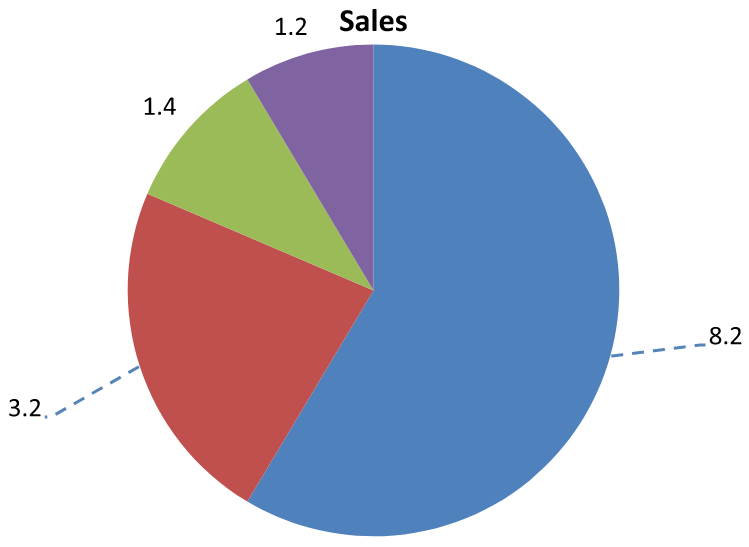

When you create a chart that does not rely on any axis such as a pie chart, the chart’s data labels may end up being too close to its edge. In such a case, you have to adjust the location of the data label so that the leader lines get displayed clearly.

This PHP code shows you how to adjust the label location on a pie chart:

  $pres = new Presentation();
  try {
    $chart = $pres->getSlides()->get_Item(0)->getShapes()->addChart(ChartType::Pie, 50, 50, 200, 200);
    $series = $chart->getChartData()->getSeries();
    $label = $series->get_Item(0)->getLabels()->get_Item(0);
    $label->getDataLabelFormat()->setShowValue(true);
    $label->getDataLabelFormat()->setPosition(LegendDataLabelPosition->OutsideEnd);
    $label->setX(0.71);
    $label->setY(0.04);
    $pres->save("pres.pptx", SaveFormat::Pptx);
  } finally {
    if (!java_is_null($pres)) {
      $pres->dispose();
    }
  }
