تغيير اتجاه تسميات العلامات باستخدام C++

تغيير اتجاه التسمية التلقائية

توفر Aspose.Cells إمكانية تغيير اتجاه تسميات العلامات على الرسم البياني باستخدام خاصية TickLabels.GetDirectionType(). تقبل الخاصية TickLabels.GetDirectionType() قيمة تعداد ChartTextDirectionType. يوفر تعداد ChartTextDirectionType الأعضاء التالية:

  • أفقي
  • رأسي
  • دوران 90
  • دوران 270
  • مكدس

الصورة التالية تقارن بين الملفات المصدر وملفات الإخراج:

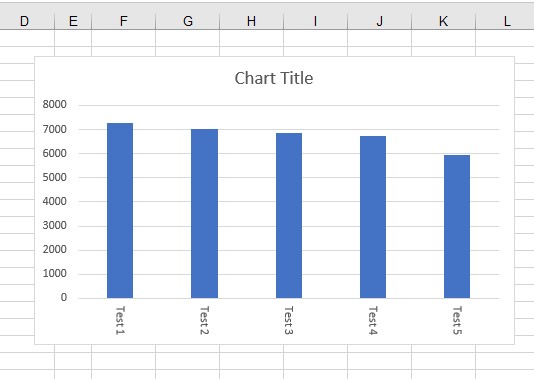

صورة الملف الأصلي

todo:image_alt_text

صورة الملف الإخراج

todo:image_alt_text

مقتطف الكود التالي يغير اتجاه تسمية العلامة المحورية من دوران 90 إلى أفقي.

الكود المثالي

#include <iostream>
#include "Aspose.Cells.h"
using namespace Aspose::Cells;

int main()
{
    Aspose::Cells::Startup();

    // For complete examples and data files, please go to https://github.com/aspose-cells/Aspose.Cells-for-C

    // Directory source and output paths
    U16String sourceDir(u"..\\Data\\01_SourceDirectory\\");
    U16String outDir(u"..\\Data\\02_OutputDirectory\\");

    // Create workbook and load the sample Excel file
    Workbook workbook(sourceDir + u"SampleChangeTickLabelDirection.xlsx");

    // Obtain the first worksheet
    Worksheet worksheet = workbook.GetWorksheets().Get(0);

    // Load the chart from the source worksheet
    Chart chart = worksheet.GetCharts().Get(0);

    // Set the category axis tick labels direction to Horizontal
    chart.GetCategoryAxis().GetTickLabels().SetDirectionType(ChartTextDirectionType::Horizontal);

    // Output the modified workbook to a new file
    workbook.Save(outDir + u"outputChangeChartDataLableDirection.xlsx");

    std::cout << "Chart tick label direction changed successfully!" << std::endl;

    Aspose::Cells::Cleanup();
}

يمكن تحميل ملفات المصدر والإخراج من الروابط التالية.

ملف المصدر

ملف الإخراج
