تحويل Smart Art إلى شكل مجموعة باستخدام C++
Contents
[
Hide
]
سيناريوهات الاستخدام المحتملة
يمكنك تحويل شكل الرسوم البيانية الذكية إلى شكل مجموعة باستخدام الطريقة Shape::GetResultOfSmartArt(). ستمكنك من التعامل مع شكل رسوم بيانية ذكية مثل شكل مجموعة. وبالتالي، ستكون لديك الوصول إلى الأجزاء أو الأشكال الفردية لشكل المجموعة.
تحويل الرسوم البيانية الذكية إلى شكل مجموعة

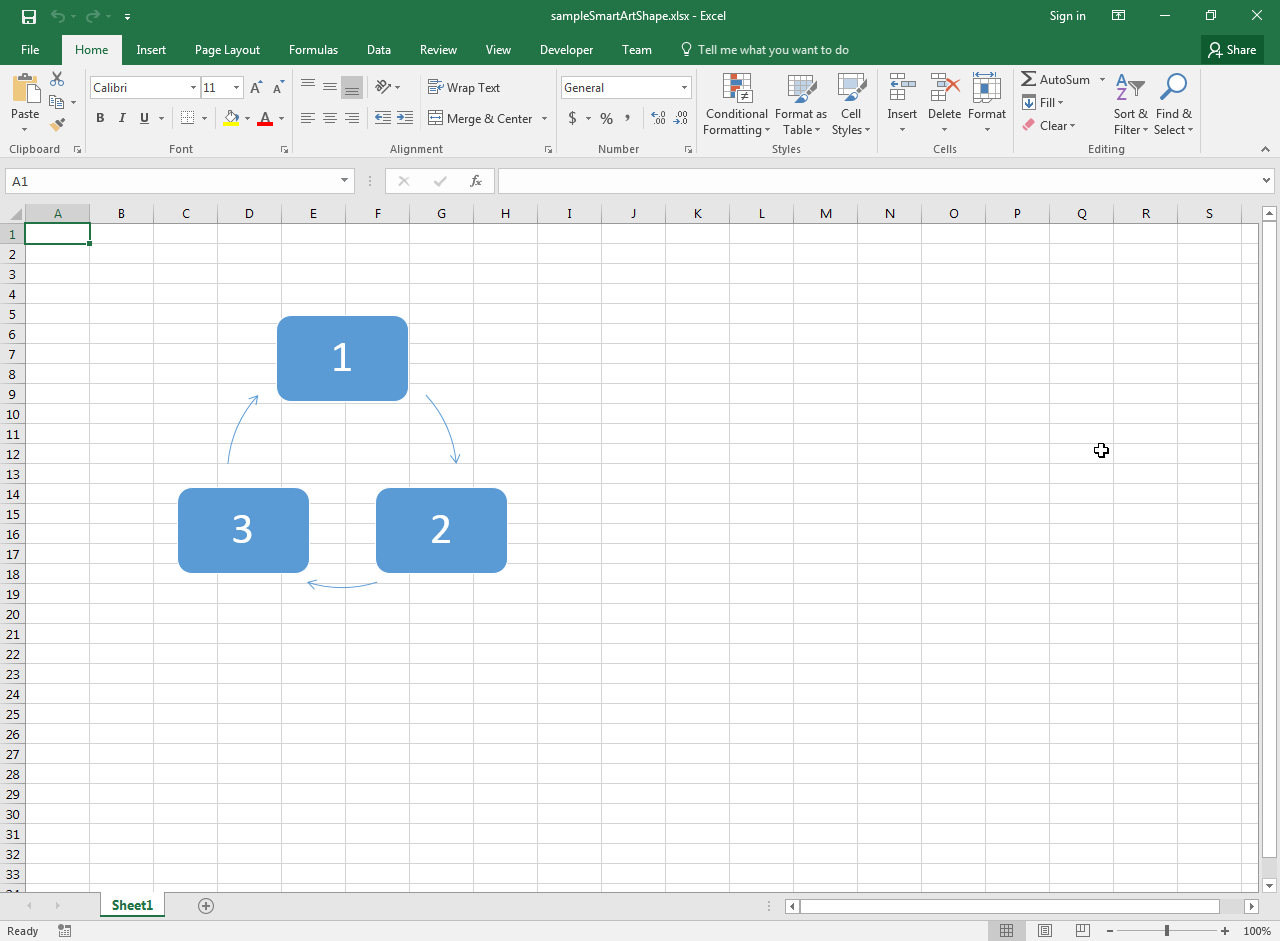

الشيفرة النموذجية التالية تقوم بتحميل ملف إكسل نموذج الذي يحتوي على شكل فن ذكي كما هو موضح في لقطة الشاشة هذه. ثم تقوم بتحويل شكل الفن الذكي إلى شكل مجموعة وطباعة خاصية Shape::IsGroup. يرجى الاطلاع على مخرجات وحدة التحكم للشيفرة النموذجية المعطاة أدناه.
الكود المثالي
#include <iostream>
#include "Aspose.Cells.h"
using namespace Aspose::Cells;
using namespace Aspose::Cells::Drawing;
int main()
{
Aspose::Cells::Startup();
// Load the sample smart art shape - Excel file
U16String inputFilePath(u"sampleSmartArtShape_GetResultOfSmartArt.xlsx");
Workbook wb(inputFilePath);
// Access first worksheet
Worksheet ws = wb.GetWorksheets().Get(0);
// Access first shape
Shape sh = ws.GetShapes().Get(0);
// Determine if shape is smart art
std::cout << "Is Smart Art Shape: " << sh.IsSmartArt() << std::endl;
// Determine if shape is group shape
std::cout << "Is Group Shape: " << sh.IsGroup() << std::endl;
// Convert smart art shape into group shape
std::cout << "Is Group Shape: " << sh.GetResultOfSmartArt().IsGroup() << std::endl;
Aspose::Cells::Cleanup();
}
مخرجات الوحدة
Is Smart Art Shape: True
Is Group Shape: False
Is Group Shape: True
