إنشاء رسم بياني أسهم عالي منخفض إغلاق (HLC) باستخدام Node.js عبر C++

سيناريوهات الاستخدام المحتملة

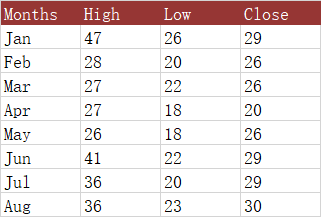

يستخدم رسم الأسهم عالي-منخفض-إغلاق أربعة أعمدة من البيانات. العمود الأول هو فئة، عادةً تاريخ لكن يمكن استخدام أسماء الأسهم أيضًا. الأعمدة الثلاثة التالية، بالترتيب، هي للأسعار العليا، الدنيا، والإغلاق. يُشار إلى نطاق السعر لكل فئة بخط عمودي من أدنى إلى أعلى، ويُعرض سعر الإغلاق باستخدام علامة مميزة تمتد إلى يمين هذا الخط.

todo:image_alt_text

تحسينات الرؤية في الرسم البياني

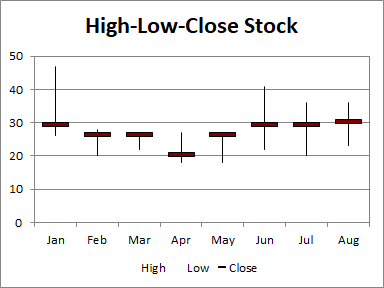

في بعض الأحيان، لجعل الرسم البياني يبدو أكثر تفاعلية، يمكننا تعديل مظهر العلامة (الإغلاق)، أو جعلها تظهر على المحور الثانوي.

todo:image_alt_text

الكود المثالي

الكود العينة التالي يحمل ملف إكسل العينة ويولد ملف إكسل الناتج.

const path = require("path");
const AsposeCells = require("aspose.cells.node");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "High-Low-Close.xlsx");

// Create an instance of Workbook
const workbook = new AsposeCells.Workbook(filePath);
// Access the first worksheet.
const worksheet = workbook.getWorksheets().get(0);
// Create High-Low-Close-Stock Chart
const pieIdx = worksheet.getCharts().add(AsposeCells.ChartType.StockHighLowClose, 5, 6, 20, 12);
// Retrieve the Chart object
const chart = worksheet.getCharts().get(pieIdx);
// Set the legend can be showed
chart.setShowLegend(true);
// Set the chart title name
chart.getTitle().setText("High-Low-Close Stock");
// Set the Legend at the bottom of the chart area
chart.getLegend().setPosition(AsposeCells.LegendPositionType.Bottom);
// Set data range
chart.setChartDataRange("A1:D9", true);
// Set category data
chart.getNSeries().setCategoryData("A2:A9");
// Set the marker with the built-in data
chart.getNSeries().get(2).getMarker().setMarkerStyle(AsposeCells.ChartMarkerType.Dash);
chart.getNSeries().get(2).getMarker().setMarkerSize(20);
chart.getNSeries().get(2).getMarker().getArea().setFormatting(AsposeCells.FormattingType.Custom);
chart.getNSeries().get(2).getMarker().getArea().setForegroundColor(AsposeCells.Color.Maroon);
// Fill the PlotArea area with nothing
chart.getPlotArea().getArea().getFillFormat().setFillType(AsposeCells.FillType.None);
// Save the Excel file
workbook.save("out.xlsx");
