إنشاء مخطط سهم حجم فتح عالي منخفض إغلاق باستخدام Node.js عبر C++
سيناريوهات الاستخدام المحتملة

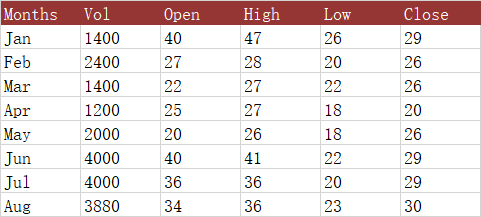

المخطط الرابع الذي سننظر إليه هو مخطط حجم فتح عالي منخفض إغلاق. من المهم تكرار أن البيانات يجب أن تكون بالترتيب الصحيح. إذا كنت بحاجة لإعادة ترتيب جدول البيانات الخاص بك، يجب أن تقوم بذلك قبل إعداد المخطط. يتضمن هذا المخطط عمودًا للحجم مباشرة بعد العمود الأول (الفئة)، ويشمل رسم بياني عمودي على المحور الرئيسي يُظهر هذا الحجم، بينما يتم نقل الأسعار إلى المحور الثانوي.

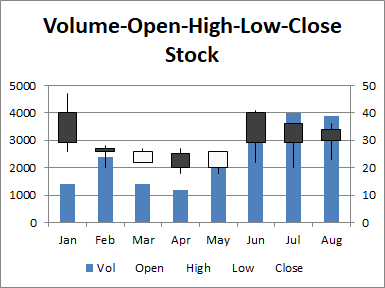

مخطط الأسهم لحجم فتح عالي منخفض إغلاق (VHLC)
الكود المثالي
الكود العينة التالي يقوم بتحميل ملف Excel عينة وإنشاء ملف Excel الخرج.
const path = require("path");
const AsposeCells = require("aspose.cells.node");
// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "Volume-Open-High-Low-Close.xlsx");
// Create an instance of Workbook
const workbook = new AsposeCells.Workbook(filePath);
// Access the first worksheet.
const worksheet = workbook.getWorksheets().get(0);
// Create High-Low-Close-Stock Chart
const pieIdx = worksheet.getCharts().add(AsposeCells.ChartType.StockVolumeOpenHighLowClose, 5, 6, 20, 12);
// Retrieve the Chart object
const chart = worksheet.getCharts().get(pieIdx);
// Set the legend can be showed
chart.setShowLegend(true);
// Set the chart title name
chart.getTitle().setText("Volume-Open-High-Low-Close Stock");
// Set the Legend at the bottom of the chart area
chart.getLegend().setPosition(AsposeCells.LegendPositionType.Bottom);
// Set data range
chart.setChartDataRange("A1:F9", true);
// Set category data
chart.getNSeries().setCategoryData("A2:A9");
// Set Color for the first series (Volume) data
chart.getNSeries().get(0).getArea().setForegroundColor(new AsposeCells.Color(79, 129, 189));
// Fill the PlotArea area with nothing
chart.getPlotArea().getArea().getFillFormat().setFillType(AsposeCells.FillType.None);
// Save the Excel file
workbook.save("out.xlsx");
