إرسال شكل في مقدمة أو خلفية داخل ورقة العمل باستخدام Node.js عبر C++

سيناريوهات الاستخدام المحتملة

عندما تتواجد أشكال متعددة في نفس الموقع، يتم تحديد رؤيتها حسب مواقع ترتيب z. توفر Aspose.Cells طريقة Shape.toFrontOrBack()، التي تغير موضع ترتيب z للشكل. لإرسال شكل إلى الخلف، ستستخدم رقمًا سالبًا مثل -1، -2، -3، وهكذا، ولإحضار شكل إلى الأمام، ستستخدم رقمًا موجبًا مثل 1، 2، 3، وهكذا.

إرسال الشكل إلى الأمام أو الوراء داخل ورقة العمل

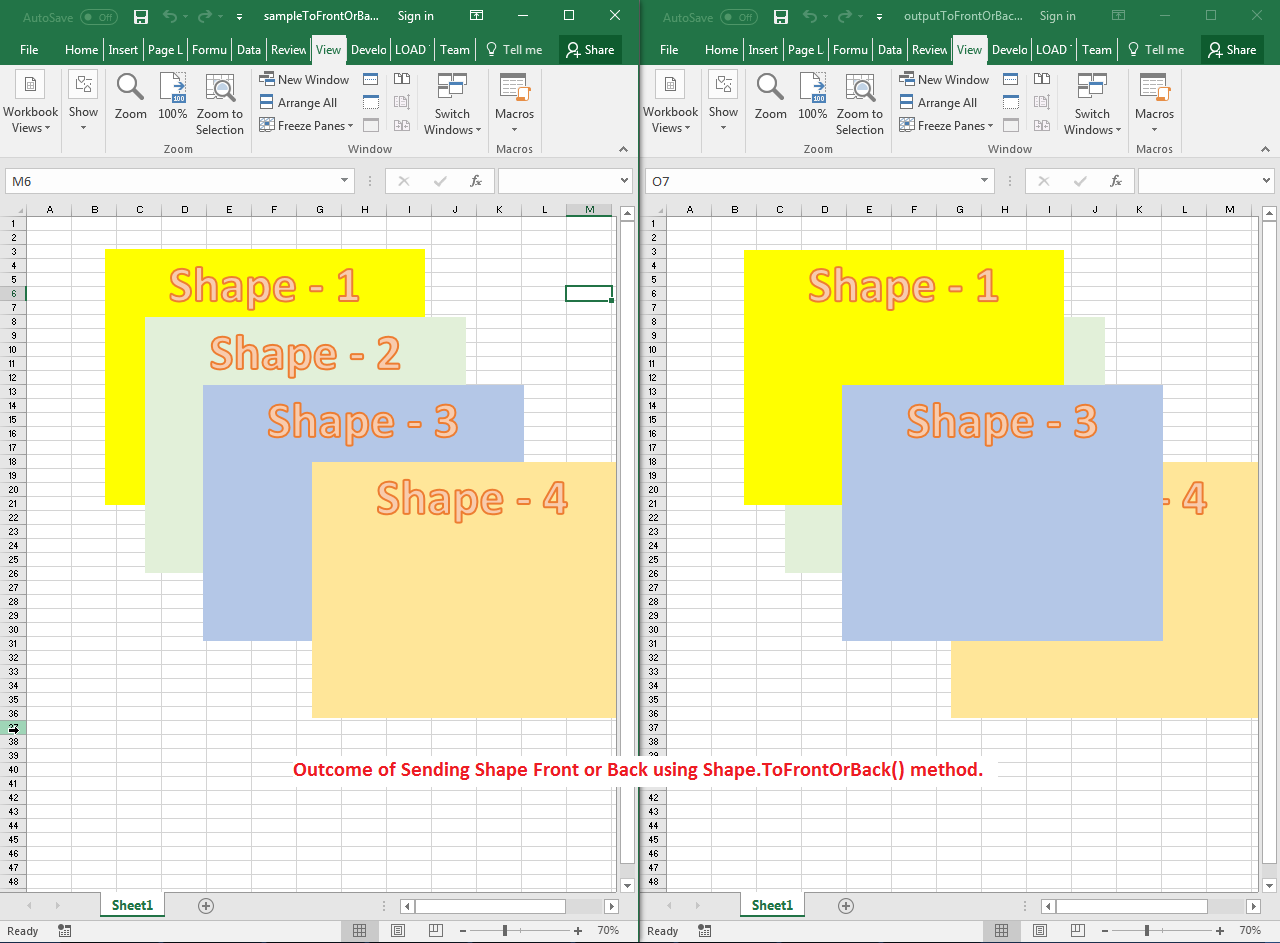

يوضح رمز العينة التالي استخدام طريقة Shape.toFrontOrBack(). الرجاء مراجعة ملف Excel النموذجي (50528330.xlsx) المستخدم في الكود وملف Excel الناتج (50528331.xlsx) الذي تم إنشاؤه به. تُظهر لقطة الشاشة تأثير الكود على ملف Excel النموذجي عند التشغيل.

todo:image_alt_text

الكود المثالي

const path = require("path");
const AsposeCells = require("aspose.cells.node");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const sourceFilePath = path.join(dataDir, "sampleToFrontOrBack.xlsx");

// Load source Excel file
const workbook = new AsposeCells.Workbook(sourceFilePath);

// Access first worksheet
const worksheet = workbook.getWorksheets().get(0);

// Access first and fourth shape
const shape1 = worksheet.getShapes().get(0);
const shape4 = worksheet.getShapes().get(3);

// Print the Z-Order position of the shape
console.log("Z-Order Shape 1: " + shape1.getZOrderPosition());

// Send this shape to front
shape1.toFrontOrBack(2);

// Print the Z-Order position of the shape
console.log("Z-Order Shape 4: " + shape4.getZOrderPosition());

// Send this shape to back
shape4.toFrontOrBack(-2);

// Save the output Excel file
const outputFilePath = path.join(dataDir, "outputToFrontOrBack.xlsx");
workbook.save(outputFilePath);
