محور Z باستخدام Node.js عبر C++

سيناريوهات الاستخدام المحتملة

بالنسبة لبعض المخططات ثلاثية الأبعاد مثل الأعمدة ثلاثية الأبعاد، المخروط ثلاثي الأبعاد، أو الهرم ثلاثي الأبعاد الذي يحتوي على محور العمق (السلسلة)، المعروف أيضًا باسم محور Z، والذي يمكن تغييره. يمكنك تحديد الفاصل الزمني بين علامات الترقيم، وتسميات المحور، وعمليات أخرى.

معالجة المحاور الرئيسية والثانوية مثل Microsoft Excel

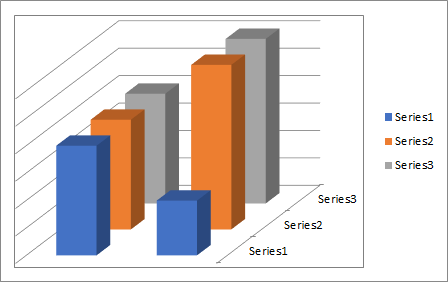

يرجى مراجعة الكود النموذجي التالي الذي ينشئ ملف Excel جديد ويرتب قيم المخطط في الورقة الأولى. ثم نضيف مخططًا ونحدد نوع المخطط ليكون Column3D، ويمكنك رؤية محور Z أيضًا المسمى محور العمق.

todo:image_alt_text

الكود المثالي

const path = require("path");
const AsposeCells = require("aspose.cells.node");

// The path to the documents directory.
const dataDir = path.join(__dirname, "data");
const filePath = path.join(dataDir, "sample.xlsx");
// Loads the workbook which contains hidden external links
const workbook = new AsposeCells.Workbook(filePath);
// Get the first worksheet
const worksheet = workbook.getWorksheets().get(0);
// Put values to cells for creating chart
worksheet.getCells().get("A1").putValue("A");
worksheet.getCells().get("B1").putValue("B");
worksheet.getCells().get("C1").putValue("C");
worksheet.getCells().get("A2").putValue(2);
worksheet.getCells().get("A3").putValue(1);
worksheet.getCells().get("B2").putValue(2);
worksheet.getCells().get("B3").putValue(3);
worksheet.getCells().get("C2").putValue(2);
worksheet.getCells().get("C3").putValue(3);
// Add a chart to the worksheet
const chartIndex = worksheet.getCharts().add(AsposeCells.ChartType.Column3D, 9, 6, 25, 16);
// Access the instance of the newly added chart
const chart = worksheet.getCharts().get(chartIndex);
// Calculate the chart
chart.calculate();
// Add SeriesCollection (chart data source) to the chart ranging from "A2" cell to "C3"
chart.setChartDataRange("A2:C3", true);
// Hide the CategoryAxis axis
chart.getCategoryAxis().setIsVisible(false);
// Hide the ValueAxis axis
chart.getValueAxis().setIsVisible(false);
// Save the file
workbook.save("ZAxis.xlsx");
