Créer un graphique bourse Volume Ouverture Haut Bas Fermeture (VOHLC) avec C++
Contents
[
Hide
]
Scénarios d’utilisation possibles

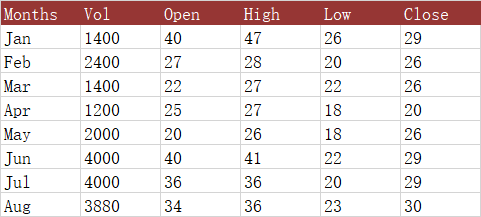

Le quatrième graphique que nous examinerons est le graphique Volume Open High Low Close. Encore une fois, il est important de répéter que vous devez disposer des données dans le bon ordre. Si vous avez besoin de réarranger votre tableau de données, faites-le avant de configurer votre graphique. Ce graphique inclut une colonne pour le volume immédiatement après la première colonne (catégorie), et les graphiques incluent un graphique en colonnes sur l’axe principal affichant ce volume, tandis que les prix sont déplacés vers l’axe secondaire.

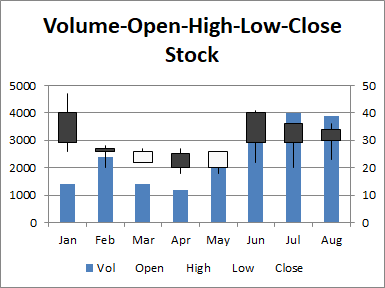

Graphique boursier Volume-Ouverture-Haut-Bas-Fermeture (VHLC)
Code d’exemple
Le code d’exemple suivant charge le fichier Excel d’exemple et génère le fichier Excel de sortie.
#include <iostream>
#include "Aspose.Cells.h"
using namespace Aspose::Cells;
int main()
{
Aspose::Cells::Startup();
// Create an instance of Workbook
Workbook workbook(u"Volume-Open-High-Low-Close.xlsx");
// Access the first worksheet
Worksheet worksheet = workbook.GetWorksheets().Get(0);
// Create High-Low-Close-Stock Chart
int32_t pieIdx = worksheet.GetCharts().Add(ChartType::StockVolumeOpenHighLowClose, 5, 6, 20, 12);
// Retrieve the Chart object
Chart chart = worksheet.GetCharts().Get(pieIdx);
// Set the legend to be shown
chart.SetShowLegend(true);
// Set the chart title name
chart.GetTitle().SetText(u"Volume-Open-High-Low-Close Stock");
// Set the Legend at the bottom of the chart area
chart.GetLegend().SetPosition(LegendPositionType::Bottom);
// Set data range
chart.SetChartDataRange(u"A1:F9", true);
// Set category data
chart.GetNSeries().GetCategoryData() = u"A2:A9";
// Set Color for the first series (Volume) data
chart.GetNSeries().Get(0).GetArea().SetForegroundColor(Color{0xff, 79, 129, 189});
// Fill the PlotArea area with nothing
chart.GetPlotArea().GetArea().GetFillFormat().SetFillType(FillType::None);
// Save the Excel file
workbook.Save(u"out.xlsx");
std::cout << "Chart created and file saved successfully!" << std::endl;
Aspose::Cells::Cleanup();
}
