Converti il Smart Art in forma di gruppo con C++

Possibili Scenari di Utilizzo

È possibile convertire la forma di Arte intelligente in Forma di gruppo utilizzando il metodo Shape::GetResultOfSmartArt(). Questo ti consentirà di gestire la forma di arte intelligente come una forma di gruppo. Di conseguenza, avrai accesso alle singole parti o forme della forma di gruppo.

Convertire la SmartArt in una forma di gruppo

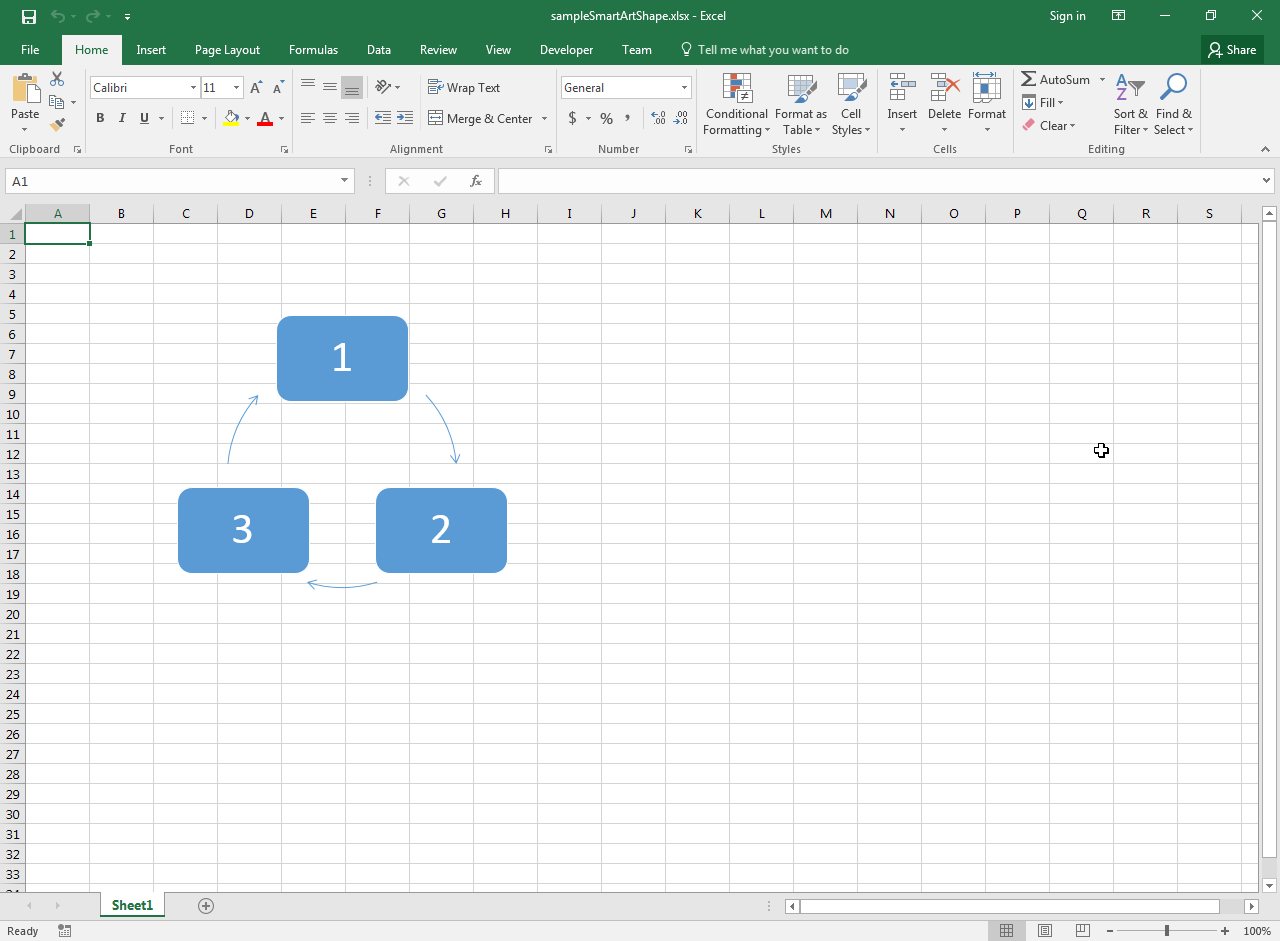

Il seguente esempio di codice carica il file Excel di esempio contenente una forma di smart art come mostrato nello screenshot. Quindi converte la forma smart art in forma di gruppo e stampa la proprietà Shape::IsGroup. Vedi l’output della console di seguito.

todo:image_alt_text

Codice di Esempio

#include <iostream>
#include "Aspose.Cells.h"

using namespace Aspose::Cells;
using namespace Aspose::Cells::Drawing;

int main()
{
    Aspose::Cells::Startup();

    // Load the sample smart art shape - Excel file
    U16String inputFilePath(u"sampleSmartArtShape_GetResultOfSmartArt.xlsx");
    Workbook wb(inputFilePath);

    // Access first worksheet
    Worksheet ws = wb.GetWorksheets().Get(0);

    // Access first shape
    Shape sh = ws.GetShapes().Get(0);

    // Determine if shape is smart art
    std::cout << "Is Smart Art Shape: " << sh.IsSmartArt() << std::endl;

    // Determine if shape is group shape
    std::cout << "Is Group Shape: " << sh.IsGroup() << std::endl;

    // Convert smart art shape into group shape
    std::cout << "Is Group Shape: " << sh.GetResultOfSmartArt().IsGroup() << std::endl;

    Aspose::Cells::Cleanup();
}

Output della console

Is Smart Art Shape: True

Is Group Shape: False

Is Group Shape: True
