Estrazione di oggetti OLE dal workbook con C++

Estrarre oggetti OLE da un file di lavoro

Creazione di un file di lavoro modello

  1. Crea un workbook in Microsoft Excel.
  2. Aggiungi un documento Microsoft Word, un workbook Excel e un documento PDF come oggetti OLE sul primo foglio di lavoro.

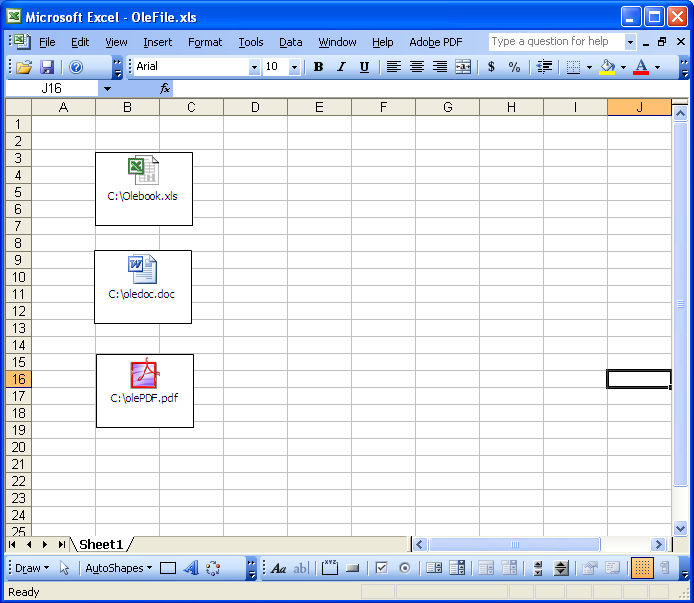

Modello di documento con oggetti OLE (OleFile.xls)
todo:image_alt_text

Successivamente, estrai gli oggetti OLE e salvali sul disco rigido con i rispettivi tipi di file.

Scarica e installa Aspose.Cells

  1. Scarica Aspose.Cells for C++.
  2. Installalo sul tuo computer di sviluppo.

Tutti i componenti Aspose, una volta installati, funzionano in modalità di valutazione. La modalità di valutazione non ha limiti di tempo e inserisce solo filigrane nei documenti prodotti.

Crea un Progetto

Avvia Visual Studio e crea una nuova applicazione console. Questo esempio mostrerà un’applicazione console C++.

  1. Aggiungi Riferimenti
    1. Aggiungi un riferimento al componente Aspose.Cells nel tuo progetto, ad esempio, aggiungi un riferimento a …\Program Files\Aspose\Aspose.Cells\Bin\Net1.0\Aspose.Cells.dll.

Estrai oggetti OLE

Il codice sotto fa il vero lavoro di trovare ed estrarre oggetti OLE. Gli oggetti OLE (file DOC, XLS e PDF) vengono salvati su disco.

#include <iostream>
#include <fstream>
#include <memory>
#include <string>
#include "Aspose.Cells.h"

using namespace Aspose::Cells;
using namespace Aspose::Cells::Drawing;

int main()
{
    Aspose::Cells::Startup();

    // Source directory path
    U16String srcDir(u"..\\Data\\01_SourceDirectory\\");

    // Open the template file
    Workbook workbook(srcDir + u"oleFile.xlsx");

    // Get the OleObject Collection in the first worksheet
    OleObjectCollection oles = workbook.GetWorksheets().Get(0).GetOleObjects();

    // Loop through all the oleobjects and extract each object in the worksheet
    for (int i = 0; i < oles.GetCount(); i++)
    {
        OleObject ole = oles.Get(i);

        // Specify the output filename
        U16String fileName = srcDir + u"outOle" + U16String(std::to_string(i).c_str()) + u".";

        // Specify each file format based on the oleobject format type
        switch (ole.GetFileFormatType())
        {
            case FileFormatType::Doc:
                fileName += u"doc";
                break;
            case FileFormatType::Excel97To2003:
                fileName += u"Xlsx";
                break;
            case FileFormatType::Ppt:
                fileName += u"Ppt";
                break;
            case FileFormatType::Pdf:
                fileName += u"Pdf";
                break;
            case FileFormatType::Unknown:
                fileName += u"Jpg";
                break;
            default:
                // Handle other formats if needed
                break;
        }

        // Save the oleobject as a new excel file if the object type is xls
        if (ole.GetFileFormatType() == FileFormatType::Xlsx)
        {
            Vector<uint8_t> objectData = ole.GetObjectData();
            if (objectData.GetLength() > 0)
            {
                Workbook oleBook(objectData);
                oleBook.GetSettings().SetIsHidden(false);
                oleBook.Save(srcDir + u"outOle" + U16String(std::to_string(i).c_str()) + u".out.xlsx");
            }
        }
        // Create the files based on the oleobject format types
        else
        {
            Vector<uint8_t> objectData = ole.GetObjectData();
            if (objectData.GetLength() > 0)
            {
                std::ofstream fs(fileName.ToUtf8().c_str(), std::ios::binary);
                fs.write(reinterpret_cast<const char*>(objectData.GetData()), objectData.GetLength());
                fs.close();
            }
        }
    }

    Aspose::Cells::Cleanup();
    return 0;
}
