Utilizzo della classe ChartGlobalizationSettings per impostare diverse lingue per il componente grafico con C++

Possibili Scenari di Utilizzo

Le API di Aspose.Cells hanno esposto la classe ChartGlobalizationSettings per gestire gli scenari in cui l’utente desidera impostare un componente del grafico in una lingua diversa, etichette personalizzate per i subtotali in un foglio di calcolo.

Introduzione alla classe ChartGlobalizationSettings

La classe ChartGlobalizationSettings attualmente offre i seguenti 8 metodi che possono essere sovrascritti in una classe personalizzata per tradurre come il nome di AxisTitle, AxisUnit, ChartTitle e così via in lingue diverse.

  1. GetAxisTitleName: Ottiene il nome del Titolo per l’Asse.
  2. GetAxisUnitName: Ottiene il Nome dell’Unità di Asse.
  3. GetChartTitleName: Ottiene il nome del Titolo del Grafico.
  4. GetLegendDecreaseName: Ottiene il nome di Diminuzione per la Leggenda.
  5. GetLegendIncreaseName: Ottiene il nome di aumento per la Leggenda.
  6. GetLegendTotalName: Ottiene il nome di Totale per la Leggenda.
  7. GetOtherName: Ottiene il nome delle etichette “Altro” per il Grafico.
  8. GetSeriesName: Ottiene il nome di Serie nel Grafico.

Traduzione personalizzata

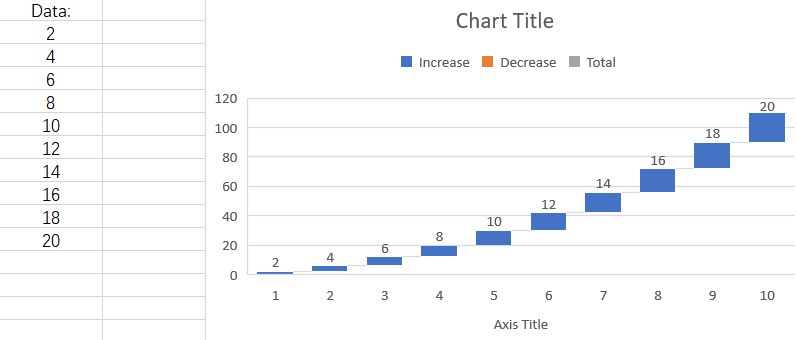

Qui, creeremo un grafico a barre basato sui seguenti dati. I nomi dei componenti del grafico verranno visualizzati in inglese nel grafico. Useremo un esempio in lingua turca per mostrare come visualizzare il Titolo del Grafico, i nomi di Aumento/Diminuzione della Leggenda, il nome Totale e il Titolo dell’Asse in turco.

todo:image_alt_text

Codice di Esempio

Il seguente codice di esempio carica il file Excel di esempio.

#include <iostream>
#include "Aspose.Cells.h"
using namespace Aspose::Cells;
using namespace Aspose::Cells::Charts;

class TurkeyChartGlobalizationSettings : public ChartGlobalizationSettings
{
public:
    TurkeyChartGlobalizationSettings() : ChartGlobalizationSettings() {}

    U16String GetChartTitleName() override
    {
        return u"Grafik Başlığı"; // Chart Title
    }

    U16String GetLegendIncreaseName() override
    {
        return u"Artış"; // Increase
    }

    U16String GetLegendDecreaseName() override
    {
        return u"Düşüş"; // Decrease
    }

    U16String GetLegendTotalName() override
    {
        return u"Toplam"; // Total
    }

    U16String GetAxisTitleName() override
    {
        return u"Eksen Başlığı"; // Axis Title
    }
};

void ChartGlobalizationSettingsTest()
{
    // Create an instance of existing Workbook
    U16String pathName = u"input.xlsx";
    Workbook workbook(pathName);

    // Set custom chartGlobalizationSettings, here is TurkeyChartGlobalizationSettings
    TurkeyChartGlobalizationSettings* globalizationSettings = new TurkeyChartGlobalizationSettings();
    workbook.GetSettings().GetGlobalizationSettings()->SetChartSettings(globalizationSettings);

    // Get the worksheet
    Worksheet worksheet = workbook.GetWorksheets().Get(0);

    // Load the chart from source worksheet
    ChartCollection chartCollection = worksheet.GetCharts();
    Chart chart = chartCollection.Get(0);

    // Chart Calculate
    chart.Calculate();

    // Get the chart title
    Title title = chart.GetTitle();

    // Output the name of the Chart title
    std::cout << "\nWorkbook chart title: " << title.GetText().ToUtf8() << std::endl;

    // Get the legend labels
    Vector<U16String> legendEntriesLabels = chart.GetLegend().GetLegendLabels();

    // Output the name of the Legend
    for (int i = 0; i < legendEntriesLabels.GetLength(); i++)
    {
        std::cout << "\nWorkbook chart legend: " << legendEntriesLabels[i].ToUtf8() << std::endl;
    }

    // Output the name of the Axis title
    Title categoryAxisTitle = chart.GetCategoryAxis().GetTitle();
    std::cout << "\nWorkbook category axis title: " << categoryAxisTitle.GetText().ToUtf8() << std::endl;

    delete globalizationSettings;
}

int main()
{
    Aspose::Cells::Startup();
    ChartGlobalizationSettingsTest();
    Aspose::Cells::Cleanup();
    return 0;
}

Output generato dal codice di esempio

Questo è l’output console del codice di esempio precedente.

Workbook chart title: Grafik Başlığı

Workbook chart legend: Artış

Workbook chart legend: Düşüş

Workbook chart legend: Toplam

Workbook category axis tile: Eksen Başlığı
