Estrai oggetti OLE dal libro di lavoro con JavaScript tramite C++
Contents
[
Hide
]
A volte, hai bisogno di estrarre gli oggetti OLE da un workbook. Aspose.Cells supporta l’estrazione e il salvataggio di quegli oggetti OLE.
Questo articolo mostra come creare un’applicazione in JavaScript tramite C++ ed estrarre diversi oggetti OLE da un libro di lavoro con poche semplici righe di codice.
Estrarre oggetti OLE da un file di lavoro
Creazione di un file di lavoro modello
- Crea un workbook in Microsoft Excel.
- Aggiungi un documento Microsoft Word, un workbook Excel e un documento PDF come oggetti OLE sul primo foglio di lavoro.

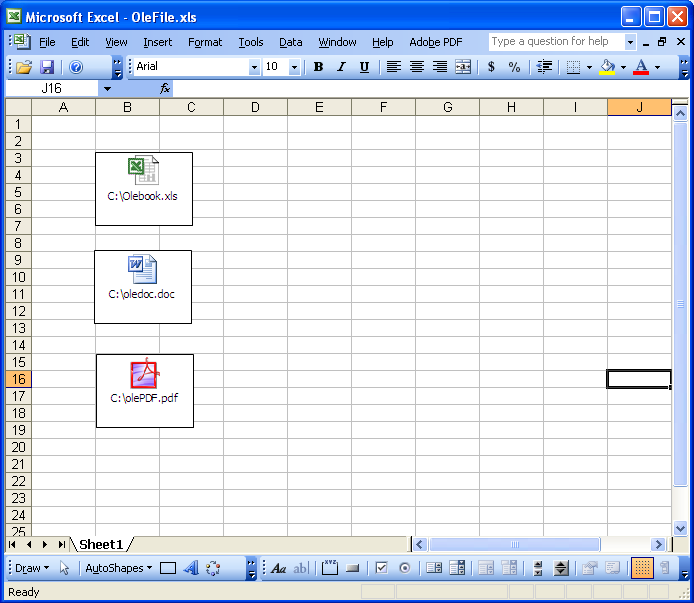

| Modello di documento con oggetti OLE (OleFile.xls) |
|---|
 |
Successivamente, estrai gli oggetti OLE e salvali sul disco rigido con i rispettivi tipi di file.
Scarica e installa Aspose.Cells
- Scarica Aspose.Cells for JavaScript tramite C++.
- Installalo sul tuo computer di sviluppo.
Tutti i componenti Aspose, una volta installati, funzionano in modalità di valutazione. La modalità di valutazione non ha limiti di tempo e inserisce solo filigrane nei documenti prodotti.
Crea un Progetto
Avvia un ambiente JavaScript e crea un nuovo progetto. Questo esempio mostrerà un’applicazione basata su browser, ma puoi usare anche qualsiasi ambiente compatibile con JavaScript.
- Aggiungi Dipendenze
- Includi lo script Aspose.Cells for JavaScript tramite C++ nella tua pagina HTML e crea un’interfaccia utente semplice per selezionare un file Excel ed estrarre gli oggetti OLE:
<!DOCTYPE html>
<html>
<head>
<title>Extract OLE Objects</title>
<meta charset="utf-8" />
<style>
body { font-family: Arial, sans-serif; margin: 20px; }
#downloadLink { display: none; margin-top: 10px; }
.ole-link { display: block; margin: 6px 0; }
.info { margin-top: 12px; }
</style>
</head>
<body>
<h1>Extract OLE Objects</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.xlsm,.xlsb" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, Utils } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
const resultDiv = document.getElementById('result');
const primaryDownloadLink = document.getElementById('downloadLink');
resultDiv.innerHTML = '';
primaryDownloadLink.style.display = 'none';
primaryDownloadLink.href = '';
primaryDownloadLink.textContent = '';
if (!fileInput.files.length) {
resultDiv.innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiate workbook from uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
const extractedLinks = [];
let totalExtracted = 0;
// Iterate through all worksheets
const sheetsCount = workbook.worksheets.count;
for (let s = 0; s < sheetsCount; s++) {
const worksheet = workbook.worksheets.get(s);
// Access OLE objects collection on the worksheet
const oleObjects = worksheet.oleObjects;
if (!oleObjects) continue;
const oleCount = oleObjects.count;
for (let o = 0; o < oleCount; o++) {
const ole = oleObjects.get(o);
// Attempt to get a filename from ole properties
// Applying universal getter->property conversion:
// getSourceFullName() -> sourceFullName, getName() -> name, getObjectData() -> objectData
let fileName = ole.sourceFullName || ole.name || `ole_object_sheet${s}_idx${o}.bin`;
// Ensure filename is just the basename
try {
// simple basename extraction
const parts = fileName.split(/[/\\]/);
fileName = parts[parts.length - 1] || fileName;
} catch (e) {
// if something unexpected, fallback
fileName = `ole_object_sheet${s}_idx${o}.bin`;
}
// Get the raw object data as bytes
const objectData = ole.objectData;
// Some runtimes may return a typed array, ArrayBuffer or plain JS array.
let blobData;
if (objectData instanceof ArrayBuffer) {
blobData = new Blob([new Uint8Array(objectData)]);
} else if (ArrayBuffer.isView(objectData)) {
blobData = new Blob([objectData]);
} else if (objectData && objectData.buffer && ArrayBuffer.isView(objectData.buffer)) {
blobData = new Blob([objectData]);
} else if (objectData && objectData.byteLength !== undefined) {
// fallback for objects exposing byteLength
blobData = new Blob([objectData]);
} else {
// If objectData is a normal JS array of bytes
blobData = new Blob([new Uint8Array(objectData)]);
}
const url = URL.createObjectURL(blobData);
// Create a download link element for this OLE object
const a = document.createElement('a');
a.href = url;
a.download = fileName;
a.textContent = `Download extracted OLE object: ${fileName}`;
a.className = 'ole-link';
resultDiv.appendChild(a);
extractedLinks.push({ name: fileName, url });
totalExtracted++;
}
}
if (totalExtracted === 0) {
resultDiv.innerHTML = '<p class="info">No OLE objects were found in the uploaded workbook.</p>';
} else {
// Make the first extracted file available via the primary downloadLink element as well
if (extractedLinks.length) {
primaryDownloadLink.href = extractedLinks[0].url;
primaryDownloadLink.download = extractedLinks[0].name;
primaryDownloadLink.style.display = 'inline-block';
primaryDownloadLink.textContent = `Download First Extracted OLE Object: ${extractedLinks[0].name}`;
}
const summary = document.createElement('p');
summary.className = 'info';
summary.innerHTML = `<strong>Extracted ${totalExtracted} OLE object(s).</strong> Use the links above to download them.`;
resultDiv.insertBefore(summary, resultDiv.firstChild);
}
});
</script>
</html>
```html
<!DOCTYPE html>
<html>
<head>
<title>Extract OLE Objects from Workbook</title>
</head>
<body>
<h1>Extract OLE Objects from Workbook</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx" />
<button id="extractBtn">Extract OLE Objects</button>
<div id="result"></div>
<div id="downloads"></div>
<script src="aspose.cells.js"></script>
<script type="text/javascript">
const { Workbook, FileFormatType, SaveFormat } = AsposeCells;
AsposeCells.onReady().then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('extractBtn').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
const result = document.getElementById('result');
const downloads = document.getElementById('downloads');
downloads.innerHTML = '';
if (!fileInput.files.length) {
result.innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Get the OleObject collection in the first worksheet.
const worksheet = workbook.worksheets.get(0);
const oles = worksheet.oleObjects;
const count = oles.count;
if (count === 0) {
result.innerHTML = '<p>No OLE objects found in the workbook.</p>';
return;
}
result.innerHTML = `<p>Found ${count} OLE object(s). Preparing downloads...</p>`;
for (let i = 0; i < count; i++) {
const ole = oles.get(i);
// Specify each file format based on the ole object format type.
let ext = 'bin';
switch (ole.fileFormatType) {
case FileFormatType.Doc:
ext = 'doc';
break;
case FileFormatType.Excel97To2003:
ext = 'xls';
break;
case FileFormatType.Xlsx:
ext = 'xlsx';
break;
case FileFormatType.Ppt:
ext = 'ppt';
break;
case FileFormatType.Pdf:
ext = 'pdf';
break;
case FileFormatType.Unknown:
ext = 'jpg';
break;
default:
ext = 'bin';
break;
}
const fileName = `outOle${i}.${ext}`;
// Save the ole object as a new excel file if the object type is xlsx.
if (ole.fileFormatType === FileFormatType.Xlsx) {
const ms = ole.objectData;
if (ms != null) {
const oleBook = new Workbook(ms);
oleBook.settings.isHidden = false;
const outData = oleBook.save(SaveFormat.Xlsx);
const blob = new Blob([outData], { type: 'application/vnd.openxmlformats-officedocument.spreadsheetml.sheet' });
const a = document.createElement('a');
a.href = URL.createObjectURL(blob);
a.download = fileName;
a.textContent = `Download ${fileName}`;
downloads.appendChild(a);
downloads.appendChild(document.createElement('br'));
}
} else {
const data = ole.objectData;
if (data != null) {
const blob = new Blob([data]);
const a = document.createElement('a');
a.href = URL.createObjectURL(blob);
a.download = fileName;
a.textContent = `Download ${fileName}`;
downloads.appendChild(a);
downloads.appendChild(document.createElement('br'));
}
}
}
result.innerHTML += '<p style="color: green;">Extraction completed! Use the links above to download the extracted files.</p>';
});
</script>
</body>
</html>
