Filtrare gli Oggetti durante il caricamento di Workbook o Foglio di lavoro con JavaScript via C++
Contents
[
Hide
]
Possibili Scenari di Utilizzo
Utilizza la proprietà LoadOptions.loadFilter mentre filtri i dati dal workbook. Ma se desideri filtrare i dati dai singoli fogli di lavoro, dovrai sovrascrivere il metodo LoadFilter.startSheet(Foglio di lavoro). Fornisci il valore appropriato dall’enumerazione LoadDataFilterOptions durante la creazione o l’uso di LoadFilter.
L’enumerazione LoadDataFilterOptions ha i seguenti valori possibili.
- Tutti
- Impostazioni del libro
- Cellavuota
- Cella booleana
- Dati cella
- Errore cella
- Numerico cella
- Stringa cella
- Valore cella
- Chart
- Formattazione condizionale
- Convalida dati
- Nomi definiti
- Proprietà documento
- Formula
- Collegamenti ipertestuali
- Area unita
- Tabella pivot
- Impostazioni
- Forma
- Dati del Foglio
- Impostazioni del Foglio
- Struttura
- Stile
- Tabella
- VBA
- XmlMap
Filtra oggetti durante il caricamento della cartella di lavoro

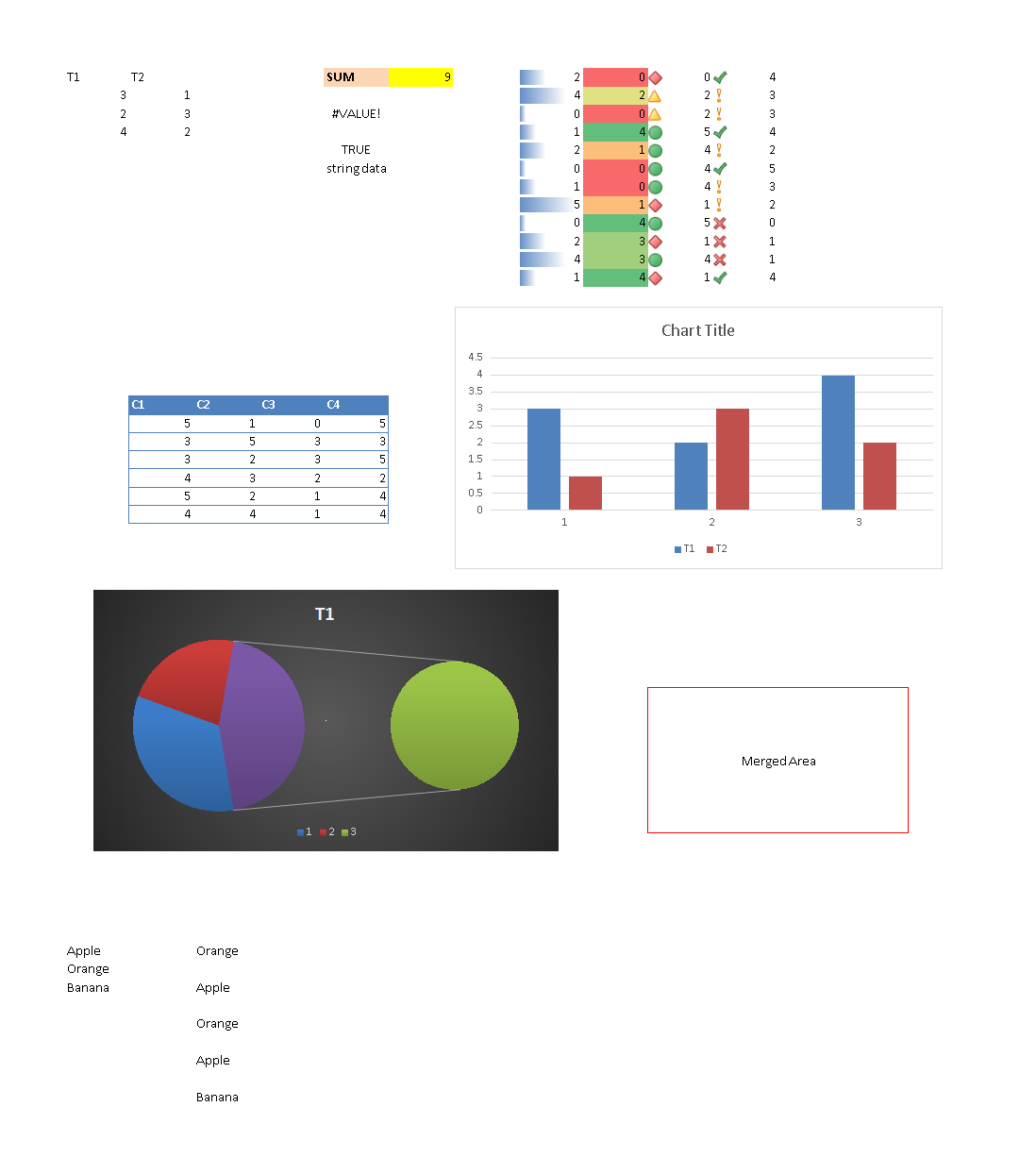

Il codice di esempio seguente illustra come filtrare i grafici dalla cartella di lavoro. Si prega di controllare il file excel di esempio utilizzato in questo codice e il PDF di output generato da esso. Come si può vedere nel PDF di output, tutti i grafici sono stati filtrati fuori dalla cartella di lavoro.
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example</title>
</head>
<body>
<h1>Filter Charts and Save to PDF Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, LoadOptions, LoadFilter, LoadDataFilterOptions, PdfSaveOptions } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
const resultDiv = document.getElementById('result');
const downloadLink = document.getElementById('downloadLink');
if (!fileInput.files.length) {
resultDiv.innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Create load options and filter out charts
const lOptions = new LoadOptions();
lOptions.loadFilter = new LoadFilter(LoadDataFilterOptions.All & ~LoadDataFilterOptions.Chart);
// Load the workbook with the above filter
const workbook = new Workbook(new Uint8Array(arrayBuffer), lOptions);
// Create PDF save options and set one page per sheet
const pOptions = new PdfSaveOptions();
pOptions.onePagePerSheet = true;
// Save the workbook in PDF format
const outputData = workbook.save(SaveFormat.Pdf, pOptions);
const blob = new Blob([outputData], { type: 'application/pdf' });
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'sampleFilterCharts.pdf';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download PDF File';
resultDiv.innerHTML = '<p style="color: green;">Workbook saved to PDF (charts filtered out). Click the download link to get the PDF.</p>';
});
</script>
</html>
Filtra oggetti durante il caricamento del foglio di lavoro
Il codice di esempio seguente carica il file Excel di origine e filtra i seguenti dati dai suoi fogli di lavoro utilizzando un filtro personalizzato.
- Filtra i Grafici dalla cartella di lavoro denominata NoCharts.
- Filtra le Forme dalla cartella di lavoro denominata NoShapes.
- Filtra la formattazione condizionale dalla cartella di lavoro denominata NoConditionalFormatting.

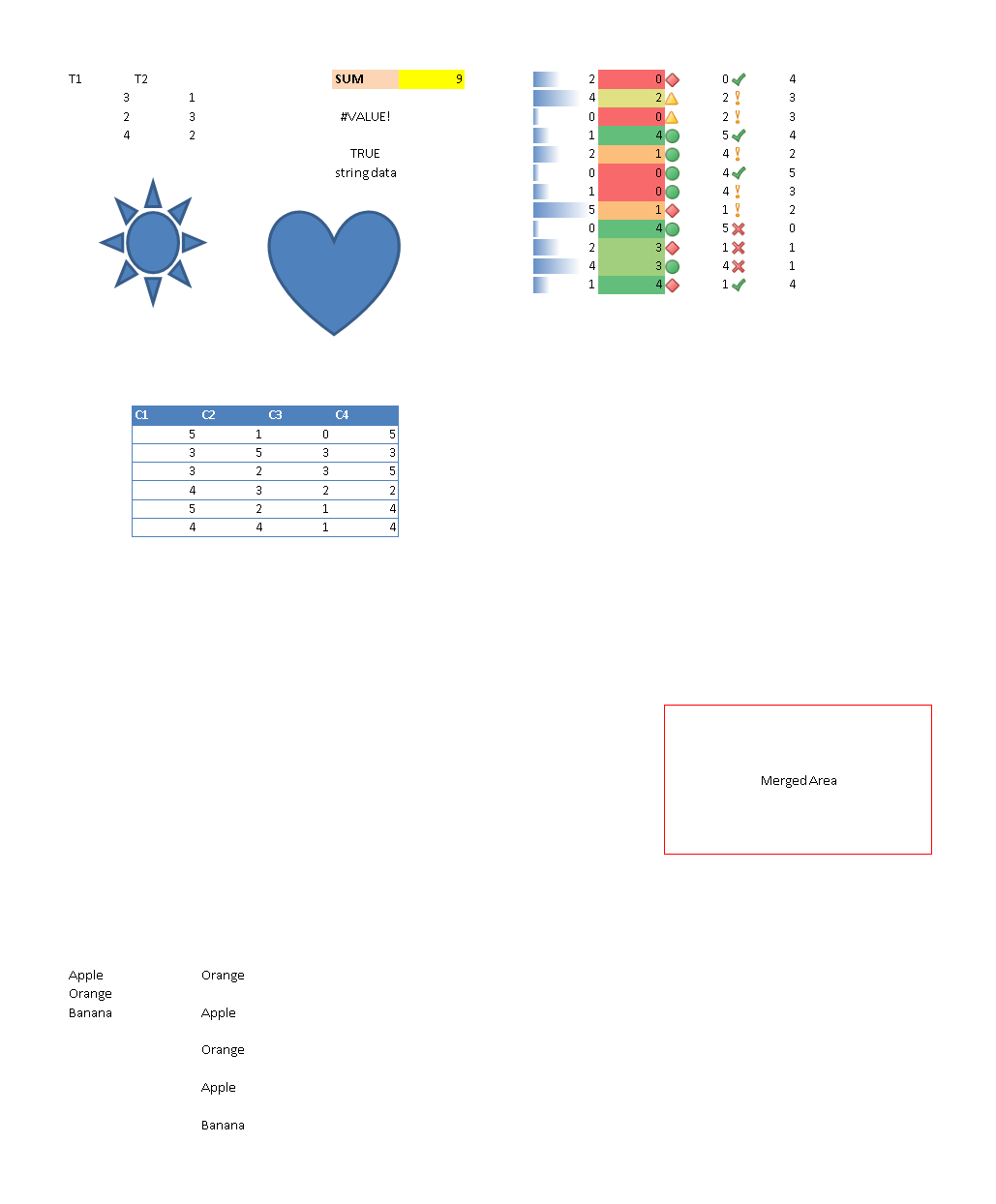

Una volta caricato il file Excel di origine con un filtro personalizzato, si prendono le immagini di tutti i fogli di lavoro uno per uno. Ecco le immagini di output per il riferimento. Come si può vedere, la prima immagine non contiene grafici, la seconda immagine non ha forme e la terza immagine non ha formattazione condizionale.
<!DOCTYPE html>
<html>
<head>
<title>Custom Load Filter Example</title>
</head>
<body>
<h1>Custom Load Filter Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat, Utils } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
// Converted CustomLoadFilter class
class CustomLoadFilter extends AsposeCells.LoadFilter {
startSheet(sheet) {
if (sheet.name === "NoCharts") {
// Load everything and filter charts
this.loadDataFilterOptions = AsposeCells.LoadDataFilterOptions.All & ~AsposeCells.LoadDataFilterOptions.Chart;
}
if (sheet.name === "NoShapes") {
// Load everything and filter shapes
this.loadDataFilterOptions = AsposeCells.LoadDataFilterOptions.All & ~AsposeCells.LoadDataFilterOptions.Drawing;
}
if (sheet.name === "NoConditionalFormatting") {
// Load everything and filter conditional formatting
this.loadDataFilterOptions = AsposeCells.LoadDataFilterOptions.All & ~AsposeCells.LoadDataFilterOptions.ConditionalFormatting;
}
}
}
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiating a Workbook object using the uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Instantiate and (optionally) attach the custom load filter
const customFilter = new CustomLoadFilter();
// If the environment supports assigning a load filter to workbook, set it as a property
workbook.loadFilter = customFilter;
// Inform user that the filter class was created and assigned
document.getElementById('result').innerHTML = '<p style="color: green;">CustomLoadFilter created and assigned to workbook. You can download the (possibly unchanged) workbook below.</p>';
// Save the workbook back to a downloadable file
const outputData = workbook.save(SaveFormat.Xlsx);
const blob = new Blob([outputData]);
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'output.xlsx';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download Excel File';
});
</script>
</html>
Così si utilizza la classe CustomLoadFilter come per i nomi dei fogli di lavoro.
<!DOCTYPE html>
<html>
<head>
<title>Aspose.Cells Example</title>
<meta charset="utf-8" />
<style>
body { font-family: Arial, sans-serif; margin: 20px; }
#downloadList a { display: block; margin: 6px 0; }
#result p { margin: 8px 0; }
</style>
</head>
<body>
<h1>Render Worksheets to PNG with Custom Load Filter</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<div id="result"></div>
<div id="downloadList"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, LoadOptions, ImageOrPrintOptions, SheetRender, ImageType } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
// Define CustomLoadFilter class (placeholder - adapt as needed)
// The original JavaScript code referenced a CustomLoadFilter implementation.
// This minimal implementation can be replaced with actual filtering logic.
class CustomLoadFilter {
constructor() {
}
// If the AsposeCells runtime expects specific methods on the filter,
// implement them here. This is a generic placeholder.
}
document.getElementById('runExample').addEventListener('click', async () => {
const resultDiv = document.getElementById('result');
const downloadList = document.getElementById('downloadList');
downloadList.innerHTML = '';
resultDiv.innerHTML = '';
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
resultDiv.innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Prepare load options and assign custom load filter
const loadOpts = new LoadOptions();
loadOpts.loadFilter = new CustomLoadFilter();
// Instantiate workbook from uploaded file with load options
const workbook = new Workbook(new Uint8Array(arrayBuffer), loadOpts);
// Iterate through worksheets and render each to PNG
const sheetCount = workbook.worksheets.count;
for (let i = 0; i < sheetCount; i++) {
const worksheet = workbook.worksheets.get(i);
// Create image options
const imageOpts = new ImageOrPrintOptions();
imageOpts.onePagePerSheet = true;
imageOpts.imageType = ImageType.Png;
// Render worksheet to image bytes
const render = new SheetRender(worksheet, imageOpts);
const imgBytes = render.toImage(0);
// Create blob and download link for each rendered image
const blob = new Blob([imgBytes], { type: 'image/png' });
const url = URL.createObjectURL(blob);
const link = document.createElement('a');
const sheetNameSafe = worksheet.name ? worksheet.name.replace(/[\/\\:?*"<>|]/g, '_') : `sheet${i+1}`;
link.href = url;
link.download = `outputCustomFilteringPerWorksheet_${sheetNameSafe}.png`;
link.textContent = `Download ${link.download}`;
downloadList.appendChild(link);
}
resultDiv.innerHTML = `<p style="color: green;">Rendered ${sheetCount} worksheet(s). Download links are available below.</p>`;
});
</script>
</html>
