Renderizza linee di griglia solide durante la conversione di Excel in PDF con JavaScript via C++

Contents
[ ]

Per compatibilità con versioni più vecchie, Aspose.Cells rende le linee di griglia come linee tratteggiate di default durante la conversione di Excel in PDF. Tuttavia, Excel moderno rende le linee di griglia come linee solide oggi.

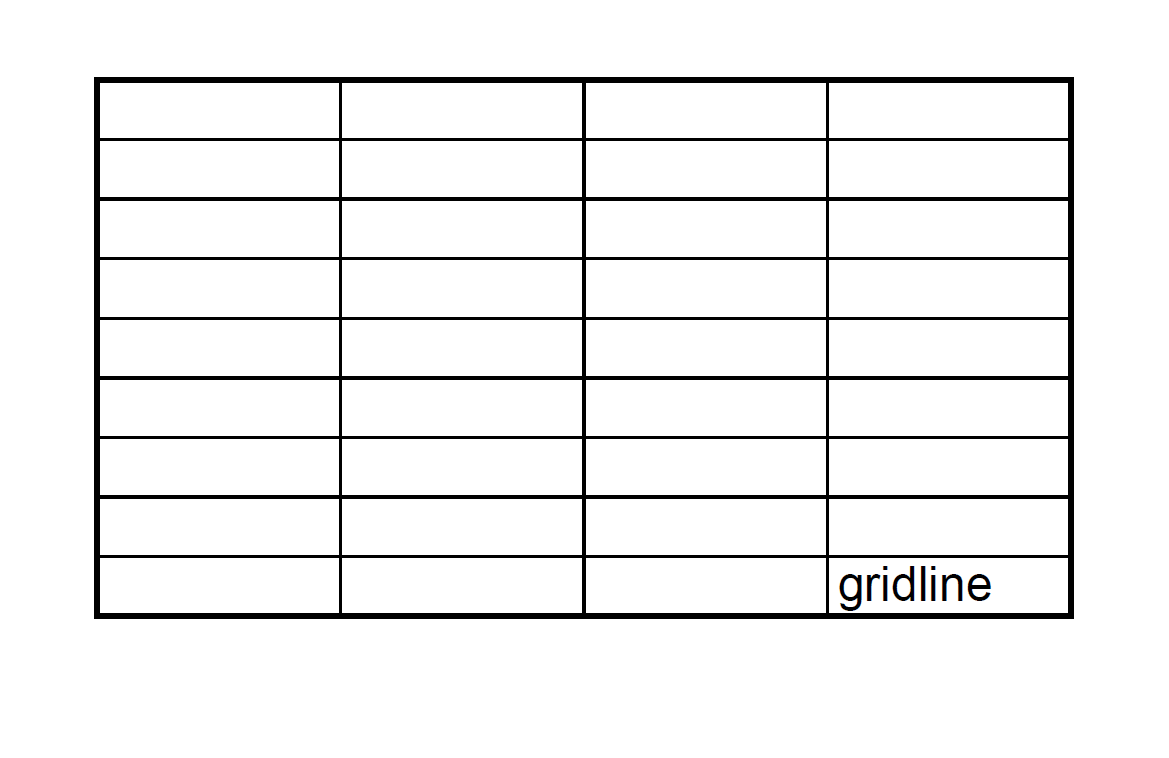

Con l’opzione PdfSaveOptions.gridlineTypes, {Aspose.Cells for Java}Script via C++ può anche rendere le linee di griglia come linee solide.

<!DOCTYPE html>
<html>
    <head>
        <title>Aspose.Cells Example</title>
    </head>
    <body>
        <h1>Aspose.Cells Example - Generate PDF with Gridlines</h1>
        <input type="file" id="fileInput" accept=".xls,.xlsx" />
        <button id="runExample">Run Example</button>
        <a id="downloadLink" style="display: none;">Download Result</a>
        <div id="result"></div>
    </body>

    <script src="aspose.cells.js.min.js"></script>
    <script type="text/javascript">
        const { Workbook, SaveFormat, PdfSaveOptions, Utils } = AsposeCells;

        AsposeCells.onReady({
            license: "/lic/aspose.cells.enc",
            fontPath: "/fonts/",
            fontList: [
                "arial.ttf",
                "NotoSansSC-Regular.ttf"
            ]
        }).then(() => {
            console.log("Aspose.Cells initialized");
        });

        document.getElementById('runExample').addEventListener('click', async () => {
            const fileInput = document.getElementById('fileInput');
            if (!fileInput.files.length) {
                document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
                return;
            }

            const file = fileInput.files[0];
            const arrayBuffer = await file.arrayBuffer();

            // Loads the workbook which contains hidden external links (as in original JavaScript example)
            const workbook = new Workbook(new Uint8Array(arrayBuffer));

            // Create an empty Workbook
            const wb = new Workbook();

            // Prepare data
            const worksheet = wb.worksheets.get(0);
            const cell = worksheet.cells.get("D9");
            cell.value = "gridline";

            // Enable to print gridline
            worksheet.pageSetup.printGridlines = true;

            // Set to render gridline as solid line
            const pdfSaveOptions = new PdfSaveOptions();
            pdfSaveOptions.gridlineType = AsposeCells.GridlineType.Hair;

            // Save the pdf file with PdfSaveOptions
            const outputData = wb.save(SaveFormat.Pdf, pdfSaveOptions);
            const blob = new Blob([outputData]);
            const downloadLink = document.getElementById('downloadLink');
            downloadLink.href = URL.createObjectURL(blob);
            downloadLink.download = 'test_Cs.pdf';
            downloadLink.style.display = 'block';
            downloadLink.textContent = 'Download PDF File';

            document.getElementById('result').innerHTML = '<p style="color: green;">PDF generated successfully! Click the download link to get the file.</p>';
        });
    </script>
</html>
