Mostra l’opzione pagine filtro report

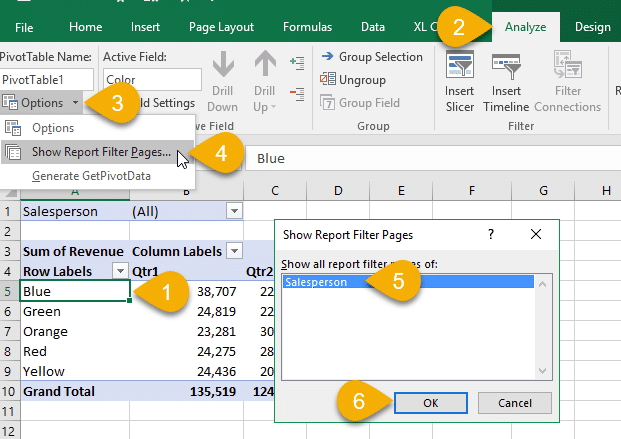

Excel supporta la creazione di tabelle pivot, l’aggiunta di filtri report e l’attivazione dell’opzione “Mostra pagine del filtro report”. Aspose.Cells for JavaScript tramite C++ supporta anche questa funzionalità per attivare l’opzione “Mostra pagine del filtro report” sulla tabella pivot creata. Di seguito lo screenshot che mostra l’opzione “Mostra pagine del filtro report” in Excel.
Il file di origine e i file di output di esempio possono essere scaricati da qui per testare il codice di esempio:
<!DOCTYPE html>
<html>
<head>
<title>Sample Pivot Table Example</title>
</head>
<body>
<h1>Sample Pivot Table Example</h1>
<input type="file" id="fileInput" accept=".xls,.xlsx,.csv" />
<button id="runExample">Run Example</button>
<a id="downloadLink" style="display: none;">Download Result</a>
<div id="result"></div>
</body>
<script src="aspose.cells.js.min.js"></script>
<script type="text/javascript">
const { Workbook, SaveFormat } = AsposeCells;
AsposeCells.onReady({
license: "/lic/aspose.cells.enc",
fontPath: "/fonts/",
fontList: [
"arial.ttf",
"NotoSansSC-Regular.ttf"
]
}).then(() => {
console.log("Aspose.Cells initialized");
});
document.getElementById('runExample').addEventListener('click', async () => {
const fileInput = document.getElementById('fileInput');
if (!fileInput.files.length) {
document.getElementById('result').innerHTML = '<p style="color: red;">Please select an Excel file.</p>';
return;
}
const file = fileInput.files[0];
const arrayBuffer = await file.arrayBuffer();
// Instantiating a Workbook object from uploaded file
const workbook = new Workbook(new Uint8Array(arrayBuffer));
// Accessing the second worksheet (index 1) and first pivot table
const worksheet = workbook.worksheets.get(1);
const pt = worksheet.pivotTables.get(0);
// Set pivot field - show report filter page for first page field
pt.showReportFilterPage(pt.pageFields.get(0));
// Set position index for showing report filter pages
pt.showReportFilterPageByIndex(pt.pageFields.get(0).position);
// Set the page field name
pt.showReportFilterPageByName(pt.pageFields.get(0).name);
// Saving the modified Excel file
const outputData = workbook.save(SaveFormat.Xlsx);
const blob = new Blob([outputData]);
const downloadLink = document.getElementById('downloadLink');
downloadLink.href = URL.createObjectURL(blob);
downloadLink.download = 'outputSamplePivotTable.xlsx';
downloadLink.style.display = 'block';
downloadLink.textContent = 'Download Modified Excel File';
document.getElementById('result').innerHTML = '<p style="color: green;">Operation completed successfully! Click the download link to get the modified file.</p>';
});
</script>
</html>
