Gestisci assi dei grafici di Excel
Contents
[
Hide
]
Nei grafici Excel, ci sono 3 tipi di assi:
- Asse orizzontale (categoria): asse X
- Asse verticale (valore): asse Y
- Asse di profondità (serie): asse Z
Opzioni dell’asse
Aspose.Cells per Python via .NET consente anche di gestire gli assi del grafico a runtime, con oggetto Axis, puoi modificare tutte le opzioni di Axis come in Excel.
|
|
Gestisci gli assi X e Y
Nel grafico Excel, gli assi orizzontali e verticali sono i due assi più popolari da utilizzare.

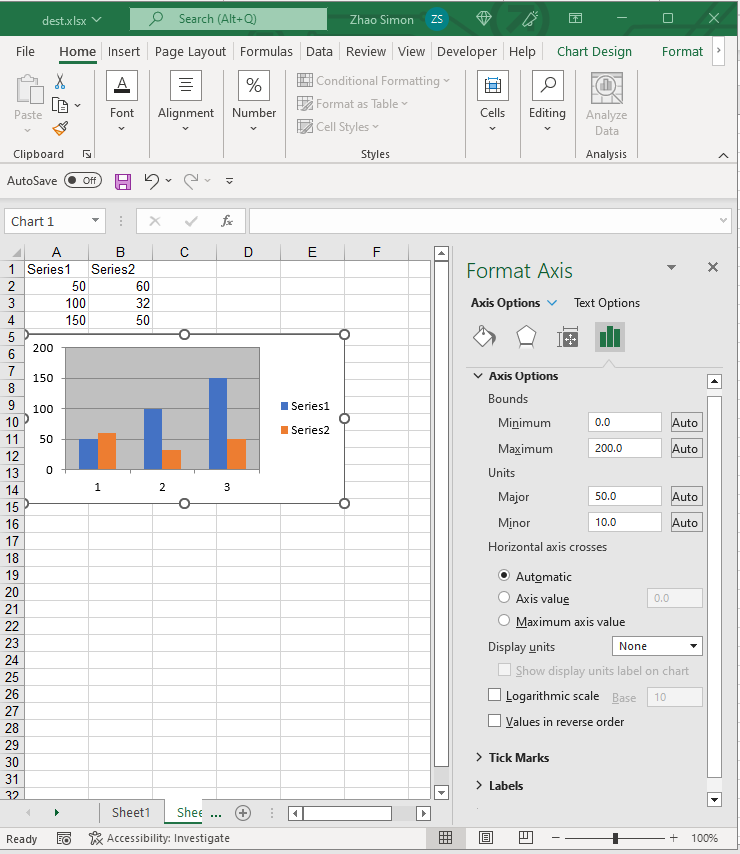

Il seguente snippet di codice dimostra come impostare le opzioni degli assi X e Y.
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| from aspose.cells import Workbook | |
| from aspose.cells.charts import ChartType | |
| # Instantiating a Workbook object | |
| workbook = Workbook() | |
| # Adding a new worksheet to the Workbook object | |
| sheetIndex = workbook.worksheets.add() | |
| # Obtaining the reference of the newly added worksheet by passing its sheet index | |
| worksheet = workbook.worksheets[sheetIndex] | |
| # Adding sample values to cells | |
| worksheet.cells.get("A1").put_value("Series1") | |
| worksheet.cells.get("A2").put_value(50) | |
| worksheet.cells.get("A3").put_value(100) | |
| worksheet.cells.get("A4").put_value(150) | |
| worksheet.cells.get("B1").put_value("Series2") | |
| worksheet.cells.get("B2").put_value(60) | |
| worksheet.cells.get("B3").put_value(32) | |
| worksheet.cells.get("B4").put_value(50) | |
| # Adding a chart to the worksheet | |
| chartIndex = worksheet.charts.add(ChartType.COLUMN, 5, 0, 15, 5) | |
| # Accessing the instance of the newly added chart | |
| chart = worksheet.charts[chartIndex] | |
| # Adding SeriesCollection (chart data source) to the chart ranging from "A1" cell to "B3" | |
| chart.set_chart_data_range("A1:B4", True) | |
| # hiding X axis | |
| chart.category_axis.is_visible = False | |
| # Setting max value of Y axis. | |
| chart.value_axis.max_value = 200 | |
| # Setting major unit. | |
| chart.value_axis.major_unit = 50.0 | |
| # Save the file | |
| workbook.save("chart_axes.xlsx") |
