特定のUnicode文字のフォントを変更してPDFに保存する方法(Python.NET)
Contents
[
Hide
]
ユーザー指定のフォントでは表示できないUnicode文字がいくつかあります。その例がノンブレーキングハイフン(U+2011)です。Unicode番号は8209で、「Times New Roman」では表示できませんが、「Arial Unicode MS」などのフォントでは表示可能です。
こうした文字が特定のフォント(例:Times New Roman)でフォーマットされたテキストに現れた場合、Aspose.Cellsは自動的にその単語や文のフォントを互換性のあるフォント(例:Arial Unicode MS)に変更します。特定の文字だけのフォントを変更したい場合は、PdfSaveOptions.is_font_substitution_char_granularityプロパティを使って詳細な制御が可能です。
比較例サンプル

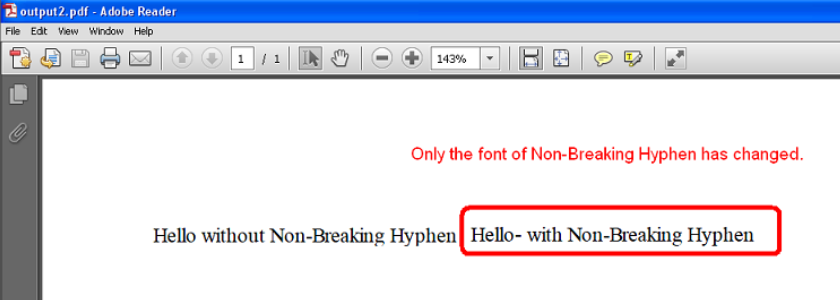

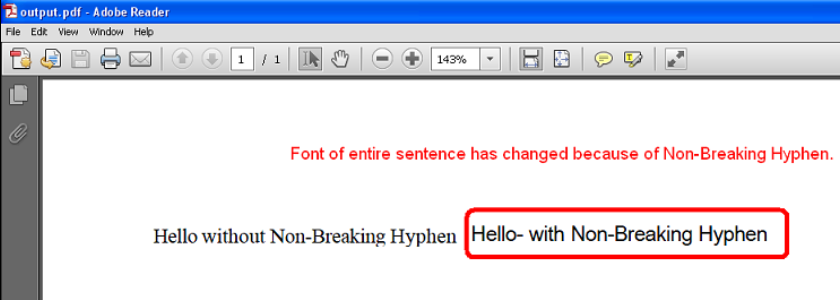

以下のスクリーンショットは、設定の違いによる出力例です。最初のPDFは全テキストのフォント置換を示し、2番目のPDFは特定文字だけのフォント変更を示しています。
全文字の置換 | 文字レベルの置換 |
---|---|
![]() |
![]() |
実装手順
文字レベルのフォント置換を有効にするには:
- Workbook オブジェクトを作成します
- Worksheet.cells プロパティを使用してワークシートのセルにアクセスします
- 特殊なUnicode文字を含むセル値を設定します
- PdfSaveOptions を次のように構成します:
is_font_substitution_char_granularity = True
- ワークブックをPDF形式で保存します
import os
from aspose.cells import Workbook, PdfSaveOptions
# For complete examples and data files, please go to https://github.com/aspose-cells/Aspose.Cells-for-.NET
current_dir = os.path.dirname(os.path.abspath(__file__))
data_dir = os.path.join(current_dir, "data")
if not os.path.exists(data_dir):
os.makedirs(data_dir)
# Create workbook object
workbook = Workbook()
# Access the first worksheet
worksheet = workbook.worksheets[0]
# Access cells
cell1 = worksheet.cells.get("A1")
cell2 = worksheet.cells.get("B1")
# Set the styles of both cells to Times New Roman
style = cell1.get_style()
style.font.name = "Times New Roman"
cell1.set_style(style)
cell2.set_style(style)
# Put the values inside the cell
cell1.put_value("Hello without Non-Breaking Hyphen")
cell2.put_value("Hello" + chr(8209) + " with Non-Breaking Hyphen")
# Autofit the columns
worksheet.auto_fit_columns()
# Save to Pdf without setting PdfSaveOptions.is_font_substitution_char_granularity
workbook.save(os.path.join(data_dir, "SampleOutput_out.pdf"))
# Save to Pdf after setting PdfSaveOptions.is_font_substitution_char_granularity to true
opts = PdfSaveOptions()
opts.is_font_substitution_char_granularity = True
workbook.save(os.path.join(data_dir, "SampleOutput2_out.pdf"), opts)
主要設定項目
これらの重要なAPIコンポーネントを使用します:
- PDFレンダリング設定用の PdfSaveOptions クラス
- 文字レベルのフォント置換のための is_font_substitution_char_granularity プロパティ
- 出力生成のための Workbook.save メソッド
APIの違いについて: Python.NETでは、ブール値のプロパティはPascalCaseの代わりにsnake_case表記(
is_font_substitution_char_granularity
)を使用します。
